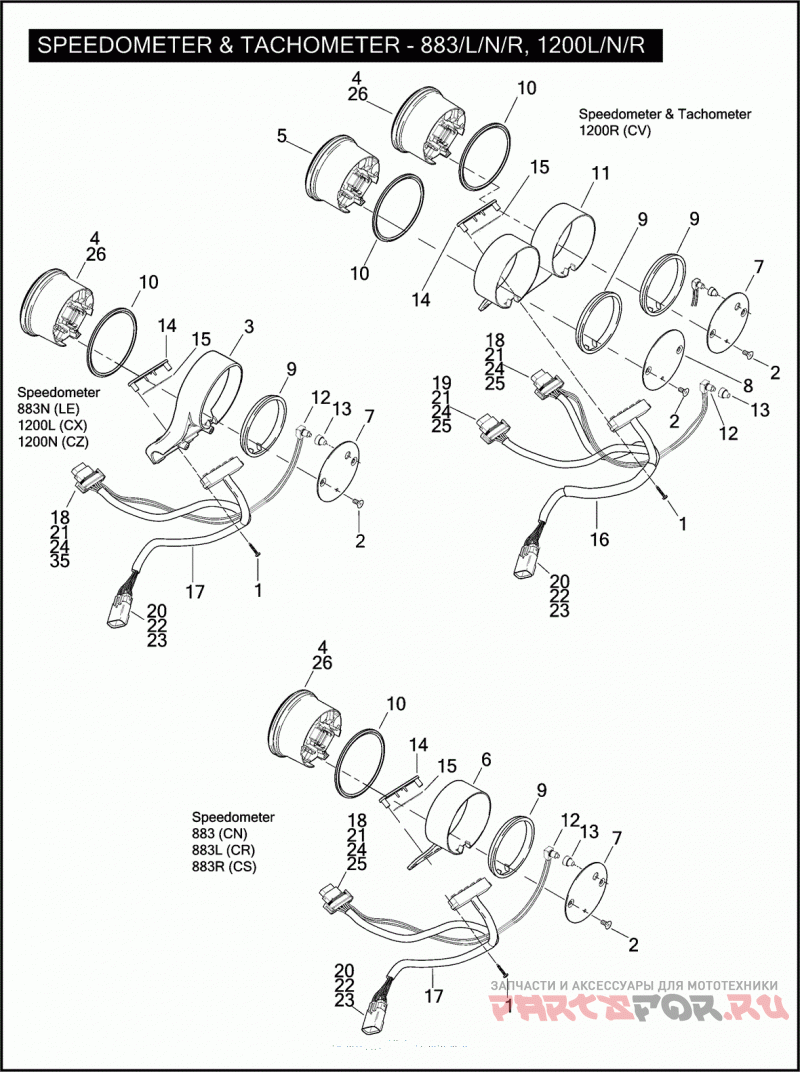

SPEEDOMETER & TACHOMETER - 883/L/N/R, 1200L/N/R

Harley Davidson XL1200R 1CV3 SPORTSTER 1200R (2009)

Harley Davidson
#oem кодцена
1
2325
SCREW NO. 6 X 3/4 CROSS RECESS PAN HD., SELF-TAPPING
2
2361
SCREW NO. 8-32 X 3/8 SOCKET COUNTERSINK HD., W/LOCKPATCH
4
67436-08
SPEEDOMETER MPH
5
67049-04B
TACHOMETER
7
67085-95
COVER SPEEDOMETER BACK (CHROME)
8
67103-95
COVER TACHOMETER BACK (CHROME)
9
67344-97
CUSHION REAR
10
67345-97
CUSHION FRONT
11
67338-97
BRACKET SPEEDOMETER & TACHOMETER
12
67854-98
SWITCH RESET
13
67880-94
BOOT RESET SWITCH
16
68811-07
HARNESS WARNING LAMP ASSEMBLY, W/ LED INDICATOR
18
72130-04
HOUSING SOCKET 12-WAY (BLACK)
19
72131-04
HOUSING SOCKET 12-WAY (GRAY)
20
72169-07
TERMINAL PIN, 16-20 GAUGE
21
72189-04
SEAL PIN
22
72488-07BK
HOUSING 12-WAY (BLACK)
23
72549-07
TERMINAL PIN, 22 AWG
24
74196-04
TERMINAL SOCKET, 20 AWG
25
74197-04
SOCKET LOCK SECONDARY, 12-WAY
26
67415-08
SPEEDOMETER MPH/KPH (ENGLAND)
26
67416-08
SPEEDOMETER KPH (CANADA/HDI/AUSTRALIA/JAPAN)
