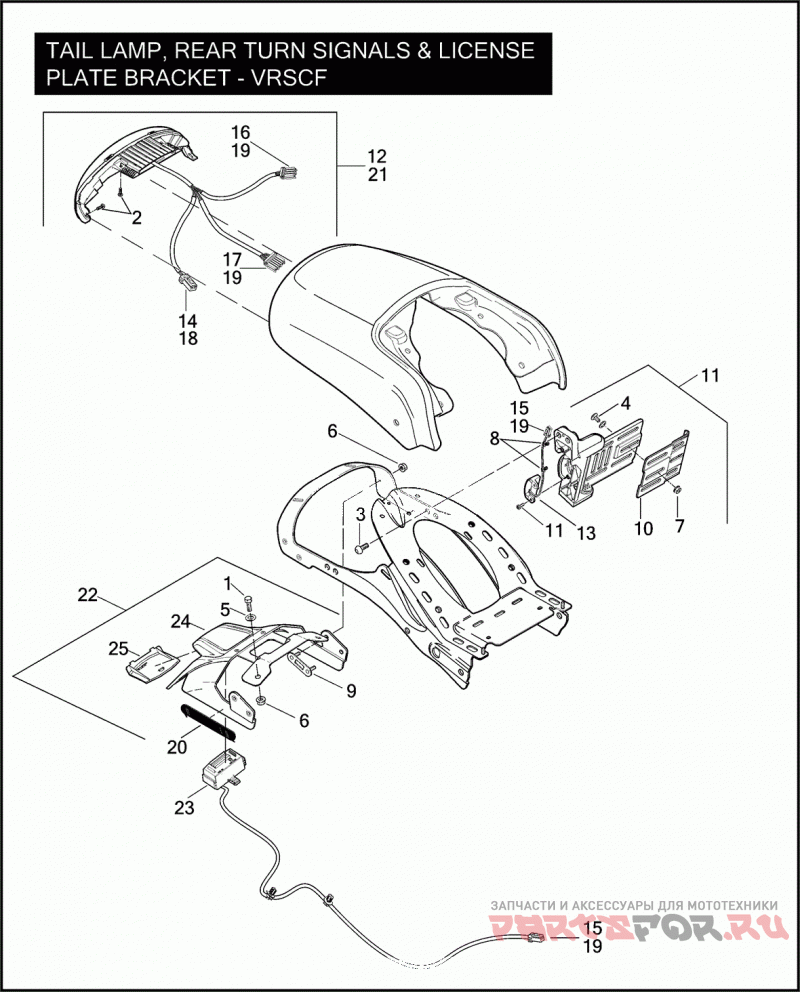

TAIL LAMP, REAR TURN SIGNALS, & LICENSE PLATE BRACKET - VRSCF

Harley Davidson VRSCF 1HPH V-ROD MUSCLE (2009)

Harley Davidson
#oem кодцена
1
3711M
SCREW M6 X 1.0 X 16 HEX HD.
2
4863M
SCREW M5 X .8 X 10 BUTTON HD.
3
4873M
SCREW M10 X 1.5 X 15 BUTTON HD.
4
5403B
BOLT 1/4-20 X 3/8 CARRIAGE
5
6859M
WASHER M6 SPECIAL
6
7495
NUT M6 FLANGE
7
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
8
10177
CABLE STRAP
9
59472-09
STUD PLATE
10
68702-07
BRACKET ADJUST
11
69390-09
LICENSE PLATE BRACKET W/ 5403B, 7716, 10177, 68702-07, & 69420-09
12
69391-09
TAILLAMP W/ 73102-96BK, 73154-96BK, 73156-96BK, 73190-96, &73191-96 (DOMESTIC)
13
69420-09
ILLUMINATOR LICENSE PLATE W/ 73152-96BK, &73191-96
14
73102-96BK
PIN HOUSING 2-WAY (BLACK)
15
73152-96BK
HOUSING SOCKET 2-WAY
16
73154-96BK
HOUSING SOCKET 4-WAY (BLACK)
17
73156-96BK
HOUSING SOCKET 6-WAY (BLACK)
18
73190-96
TERMINAL PIN 20-16 GAUGE
19
73191-96
TERMINAL (AS REQUIRED)
20
60254-07
REFLECTOR (HDI)
21
69392-09
TAILLAMP W/ 73102-96BK, 73154-96BK, 73156-96BK, 73190-96, &73191-96 (HDI)
22
69394-09
LICENSE PLATE BRACKET W/ 60254-07, 69424-09, 69523-09, &69585-09 (HDI)
23
69424-09
LAMP ASSEMBLY W/ 73152-96BK, &73191-96 (HDI)
24
69523-09
LICENSE PLATE BRACKET (HDI)
25
69585-09
COVER LICENSE PLATE (HDI)
