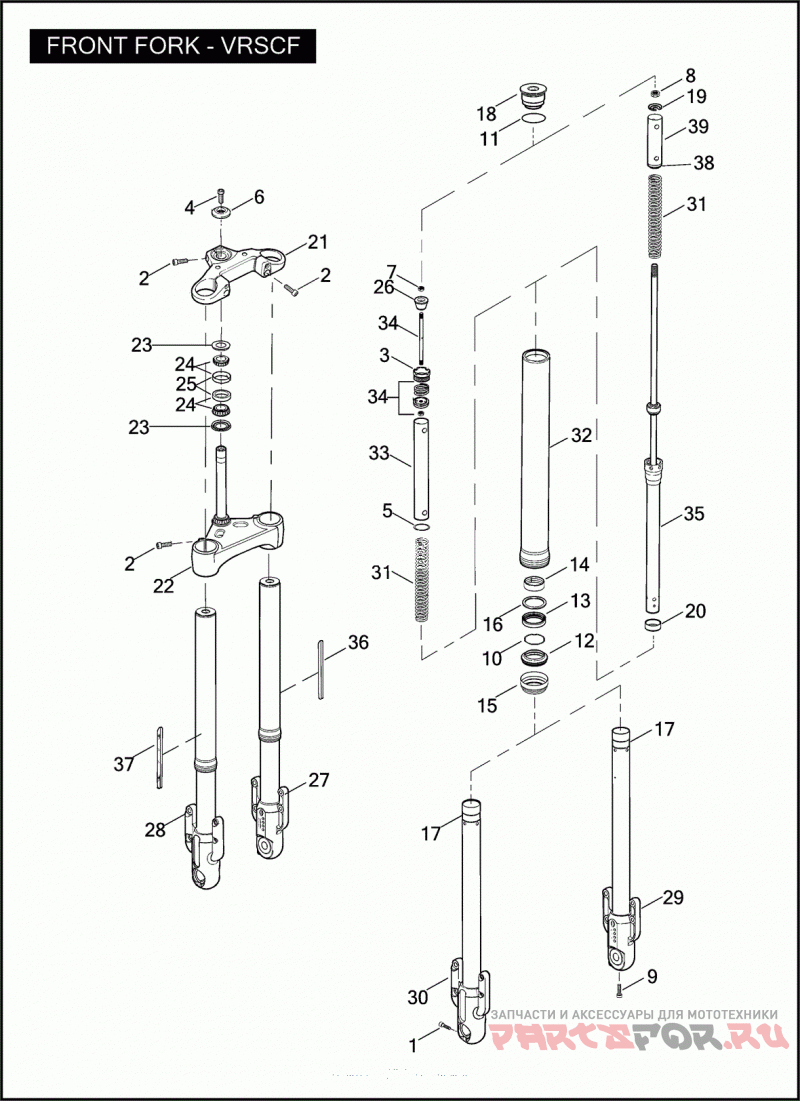

FRONT FORK - VRSCF

Harley Davidson VRSCF 1HPH V-ROD MUSCLE (2009)

Harley Davidson
#oem кодцена
1
4499M
BOLT M10 X 1.25 X 35 SOCKET HD.
2
4534M
SCREW M10 X 1.5 X 30 SOCKET HD.
3
4575
BOLT INNER FORK - RIGHT ONLY
4
4870M
BOLT M12 X 1.75X 30 M8 DRIVE
5
5925
WASHER 29 X 39 X 2-19/64
6
6514
STEERING WASHER (SILVER)
7
7468M
NUT M10 X 1 X 6
8
8199M
NUT M10 X 1.0
9
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
10
45842-77A
RETAINING RING - LEFT ONLY
11
46329-06
Уплотнительное кольцо
12
J8130.3A8
Пыльник
13
J8127.3A8
Сальник
14
46343-06
GUIDE BUSHING
15
46344-06
COVER SLIDER
16
46346-06
SEAL SPACER
17
46348-06
SLIDE BUSHING
18
46350-06
CAP SLIDER TUBE
19
46352-06
SPRING SEAT - LEFT ONLY
20
46353-06
CENTERING PLATE - LEFT ONLY
21
46891-09C
BRACKET UPPER (SILVER)
22
46892-09B
STEM & BRACKET W/ BEARING & SHIELD (SILVER)
23
48184-01
Уплотнение
24
48300-60
ROLLER BEARING W/ CUP
25
48315-60
BEARING CUP
26
J8146.1AS
STOPPER RUBBER
27
48700-09
FORK ASSEMBLY LEFT
28
48701-09
FORK ASSEMBLY RIGHT
29
48702-09
SLIDER LEFT
30
48703-09
SLIDER RIGHT
31
48704-09
Пружина
32
48705-09
OUTER TUBE LEFT/RIGHT
33
48708-09
SPRING COLLAR - RIGHT ONLY
34
48777-09
JOINT ROD - RIGHT ONLY
35
48779-09
DAMPER COMP - LEFT ONLY
35
49380-09
FORK REBUILT KIT
36
69861-07
REFLECTOR AMBER W/BLACK BASE - RIGHT HAND
37
69862-07
REFLECTOR AMBER W/BLACK BASE - LEFT HAND
38
J0117.3A8
SPRING JOINT - LEFT ONLY
39
J8135.1AE
SPRING COLLAR - LEFT ONLY
