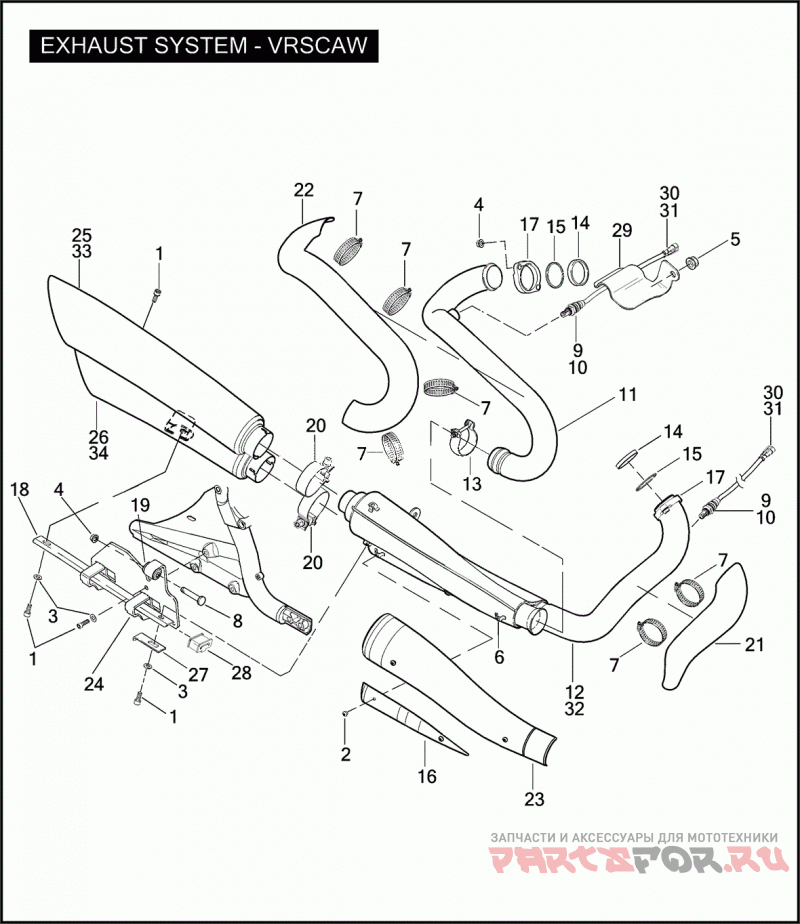

EXHAUST SYSTEM - VRSCAW

Harley Davidson VRSCAW 1HFH VRSCAW V-ROD (2009)

Harley Davidson
#oem кодцена
1
3709M
SCREW M8 X 1.25 X 20 SOCKET HD.
2
4608MA
SCREW 6 X 1 X 8.0 TORX BUTTON HD. (T25 TORX)
3
6302
WASHER 5/16 X 11/16 X 19/32
4
7432M
NUT M8 X 1.25 FLANGE
5
7495
NUT M6 FLANGE
6
8070MA
NUT M6 X 1 SQUARE
7
9955
Зажим
8
10346
Штифт
9
27683-07
OXYGEN SENSOR FRONT W/ 27714-06, 72009-05, & 72011-05
9
27703-08
OXYGEN SENSOR REAR W/ 27714-06, 72009-05, & 72011-05
10
27714-06
Уплотнительное Кольцо
11
64966-09
EXHAUST PIPE REAR (CHROME)
12
64827-09
AUXILIARY VOLUME (DOMESTIC CALIFORNIA, CANADA)
13
64832-09
CLAMP EXHAUST
14
64971-09
SEAL EXHAUST
15
65045-01
Стопорное кольцо
16
65046-01
SHIELD LOWER EXHAUST (CHROME)
17
65102-01
FLANGE EXHAUST
18
65106-01
SUPPORT BAR
19
65107-01
ISOLATOR MOUNT
20
65108-01
CLAMP EXHAUST
21
65110-01
SHIELD EXHAUST ASSEMBLY FRONT (CHROME)
22
65111-01A
SHIELD EXHAUST ASSEMBLY REAR (CHROME)
23
65112-01B
SHIELD UPPER EXHAUST (CHROME)
24
65113-07A
EXHAUST SUPPORT
25
65152-01A
MUFFLER REAR (DOMESTIC, CALIFORNIA, CANADA, HDI, AUSTRALIA, ENGLAND)
26
65153-01A
MUFFLER FRONT (DOMESTIC, CALIFORNIA, CANADA, HDI, AUSTRALIA, ENGLAND)
27
65165-01
BRACKET EXHAUST SUPPORT
28
65200-01
RUBBER ISOLATOR
29
70580-08
BRACKET OXYGEN SENSOR - REAR
30
72009-05
PIN HOUSING 2-WAY
31
72011-05
WIRE SEAL 16-20 AWG (YELLOW)
32
64844-09
AUXILIARY VOLUME (HDI, AUSTRALIA, ENGLAND, JAPAN, 105 H.P.)
33
64909-04
MUFFLER REAR (JAPAN)
34
64911-04
MUFFLER FRONT (JAPAN)
