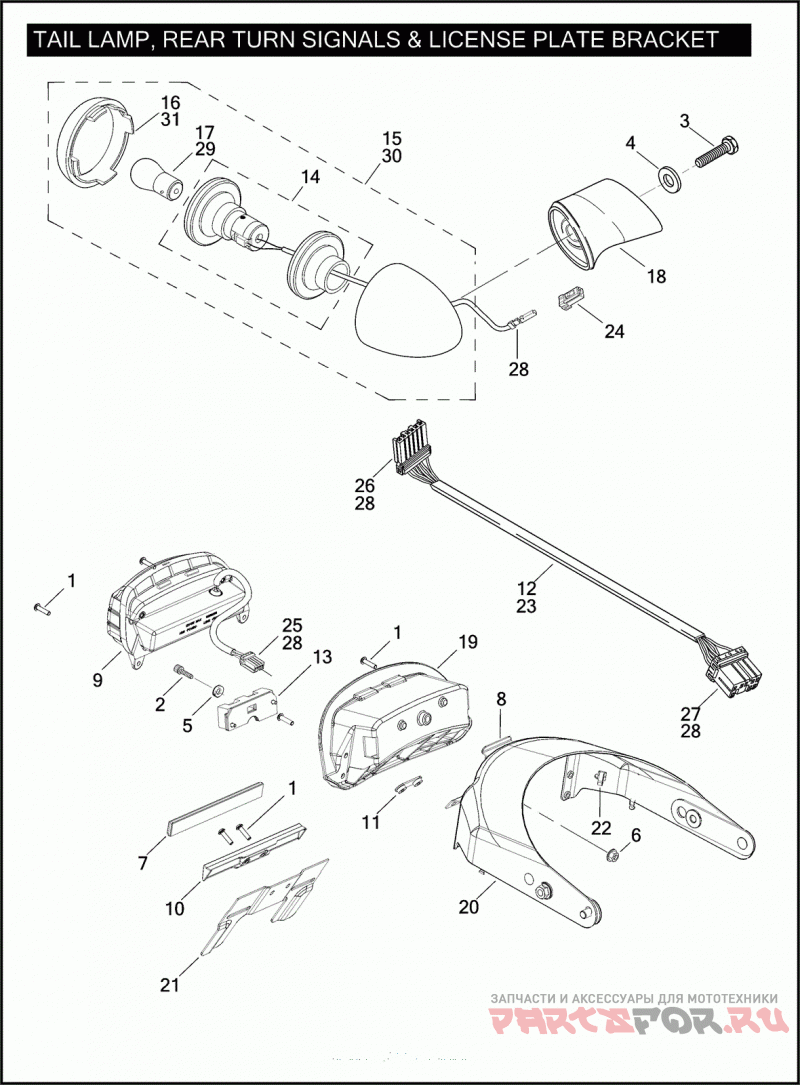

TAIL LAMP, REAR TURN SIGNALS & LICENSE PLATE BRACKET

Harley Davidson FXSTSSE3 1PT9 CVO SOFTAIL SPRINGER (2009)

Harley Davidson
#oem кодцена
1
2533
SCREW NO. 10-16 X 1/2 SOCKET BUTTON HD.
2
3601
SCREW 1/4-20 X 1-1/4 KNURLED HD. (GRADE 8)
3
4549
SCREW 5/16-18 X 1-3/4 TORX BUTTON HD. (GRADE 5)
4
6702
WASHER 5/16 X 11/16 X 1/16
5
6703
WASHER 1/4 X 5/8 X 1/16
6
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
7
59988-72A
Отражатель
8
60925-09
BRACKET LICENSE PLATE SUPPORT
9
68349-07D
TAIL LIGHT LED
10
68418-07
BRACKET REFLECTOR
11
68442-07
NUT PLATE
12
68819-06A
HARNESS REAR LAMPS, W/ 70523-06, 73156-96BK, 73158-96BK & 73191-96
13
68830-99A
CIRCUIT BOARD
14
68905-00
SOCKET ASSEMBLY
15
69196-03
TURN SIGNAL REAR, W/ 68905-00, 69325-02 & 69330-02
16
69325-02
LENS REAR TURN SIGNAL
17
69330-02
BULB REAR TURN SIGNAL
18
69438-06
SUPPORT REAR LAMP MOUNTING
19
69937-09A
BRACKET TAILLAMP/LICENSE PLATE
20
69938-09
SUPPORT REAR FENDER
21
69939-09
SUPPORT LICENSE PLATE
22
70345-84
RETAINER WIRE HARNESS
23
69200018
CONDUIT HARNESS
24
73152-96BK
SOCKET HOUSING 2-PLACE
25
73154-96BK
SOCKET HOUSING 4-PLACE
26
73156-96BK
SOCKET HOUSING 6-PLACE
27
73158-96BK
SOCKET HOUSING 8-PLACE
28
73191-96
CONTACT SOCKET 16-20 GAUGE
29
68163-84
BULB (HDI)
30
68978-00
TURN SIGNAL REAR W/ 68163-84 & 68973-00 (HDI)
31
68973-00
LENS AMBER (HDI)
