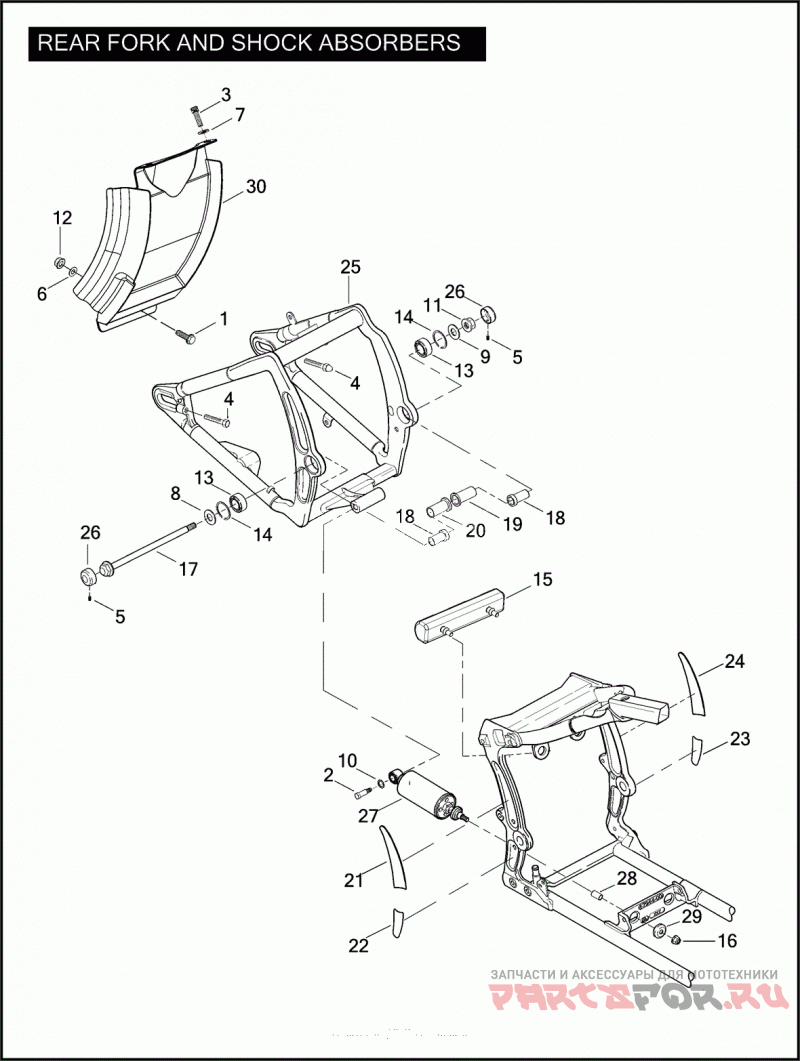

REAR FORK & SHOCK ABSORBERS

Harley Davidson FXSTSSE3 1PT9 CVO SOFTAIL SPRINGER (2009)

Harley Davidson
#oem кодцена
1
3643
SCREW 1/4-20 X 1-1/4 HEX HD.
2
4074A
BOLT 1/2-13 X 2 HEX HD., SHOULDER
3
4355B
SCREW 3/8-16 X 1-3/4 TORX HD. (GRADE 8)
4
4433
ADJUSTER SCREW RIGHT SIDE
4
8195
ADJUSTER SCREW LEFT SIDE
5
4967
Втулка
6
6235
WASHER 1/4 X 23/32 X 1/16
7
6532
WASHER 3/8 X 3/4 X 1/8
8
6534
WASHER 3/8 X 1-3/4 X 3/32 HARDENED
9
6535
WASHER 5/16 X 1-1/4 X 3/32 HARDENED
10
6724
WASHER 21/32 X 1-1/16 X 1/16
11
7479
NUT 5/8-11 FLANGE (GRADE 6)
12
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
13
9209
BEARING W/ 11282
14
11282
RETAINING RING FORK BEARING
15
11565C
BUMPER REAR FORK
16
45764-00
LOCKNUT FLANGE
17
47670-08
PIVOT SHAFT
18
48048-00A
BUSHING REAR FORK
19
48049-08
SPACER REAR FORK, LEFT HAND
20
48104-08
SPACER REAR FORK, RIGHT HAND
21
48185-09BKO
INSERT RIGHT HAND/TOP FRAME (CANDY COBALT)
21
48185-09BSF
INSERT RIGHT HAND/TOP FRAME (SUNRISE YELLOW PEARL)
21
48185-08CRP
INSERT RIGHT HAND/TOP FRAME (BLACK DIAMOND)
22
48186-09BKO
INSERT RIGHT HAND/BOTTOM FRAME (CANDY COBALT)
22
48186-09BSF
INSERT RIGHT HAND/BOTTOM FRAME (SUNRISE YELLOW PEARL)
22
48186-08CRP
INSERT RIGHT HAND/BOTTOM FRAME (BLACK DIAMOND)
23
48195-09BKO
INSERT LEFT HAND/BOTTOM FRAME (CANDY COBALT)
23
48195-09BSF
INSERT LEFT HAND/BOTTOM FRAME (SUNRISE YELLOW PEARL)
23
48195-08CRP
INSERT LEFT HAND/BOTTOM FRAME (BLACK DIAMOND)
24
48203-09BKO
INSERT LEFT HAND/TOP FRAME (CANDY COBALT)
24
48203-09BSF
INSERT LEFT HAND/TOP FRAME (SUNRISE YELLOW PEARL)
24
48203-09CRP
INSERT LEFT HAND/TOP FRAME (BLACK DIAMOND)
25
48663-08
REAR FORK (CHROME)
25
47574-08CRP
REAR FORK (BLACK DIAMOND)
25
47574-08CRR
REAR FORK (CRYSTAL COPPER)
26
48804-09
COVER PIVOT, RIGHT HAND
26
48848-09
COVER PIVOT, LEFT HAND
27
54520-09
SHOCK ABSORBER W/ 45764-00, 56182-00A & 56183-00
28
56182-00A
Втулка
29
56183-00
WASHER W/ GROMMET
30
60460-09
Защита
