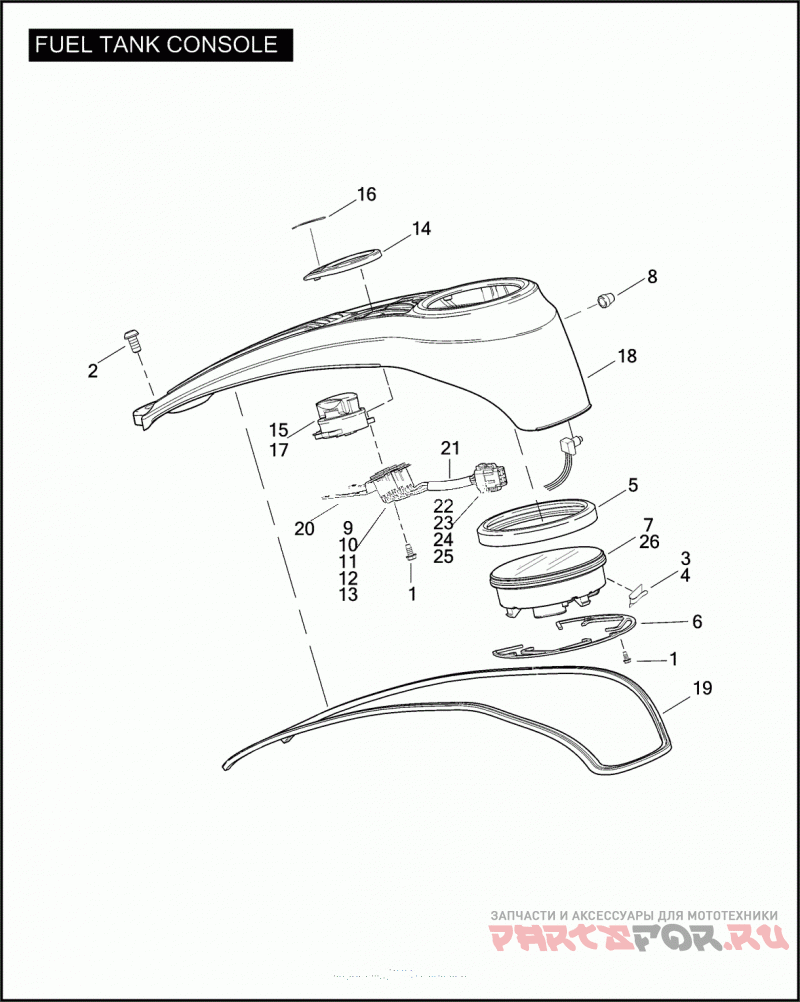

FUEL TANK CONSOLE

Harley Davidson FXSTSSE3 1PT9 CVO SOFTAIL SPRINGER (2009)

Harley Davidson
#oem кодцена
1
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
2
4620
SCREW NO. 10-24 X 5/8 HEX SOCKET BUTTON HD.
3
10102
CLIP ADHESIVE
4
10103
CLIP ADHESIVE
5
67223-00A
SEAL SPEEDOMETER
6
67249-09
BRACKET CONSOLE SUPPORT
7
67313-08
SPEEDOMETER (MPH)
8
67880-94
BOOT RESET SWITCH
9
69869-07
INDICATOR LIGHT LH DIRECTIONAL
10
69870-07
INDICATOR LIGHT HIGH BEAM
11
69871-07
INDICATOR LIGHT NEUTRAL
12
69872-07
INDICATOR LIGHT OIL
13
69896-07
INDICATOR LIGHT RH DIRECTIONAL
14
71290-09
PLATE IGNITION SWITCH
15
71313-96A
IGNITION SWITCH (SPECIFY KEY CODE)
16
71339-09
NAMEPLATE IGNITION SWITCH
17
71450-04
LOCKSET COMPLETE, W/ KEYS, IGNITION SWITCH & FORK LOCK (DOES NOT INCLUDE CVO GOLD KEY)
18
71758-09
INSTRUMENT PANEL (CHROME)
19
71759-09
TRIM INSTRUMENT PANEL
20
71760-09
BRACKET INDICATOR LIGHTS
21
71762-09
HARNESS ASSEMBLY
22
74118-98BK
SOCKET HOUSING 8-WAY (BLACK)
23
74158-98
SECONDARY LOCK 8-WAY SOCKET
24
74191-98
TERMINAL PIN 16-20 AWG
25
74195-98
SEAL PIN
26
74492-08
SPEEDOMETER (ENGLAND) (MPH/KPH)
26
67315-08
SPEEDOMETER (CANADA/HDI) (KPH)
