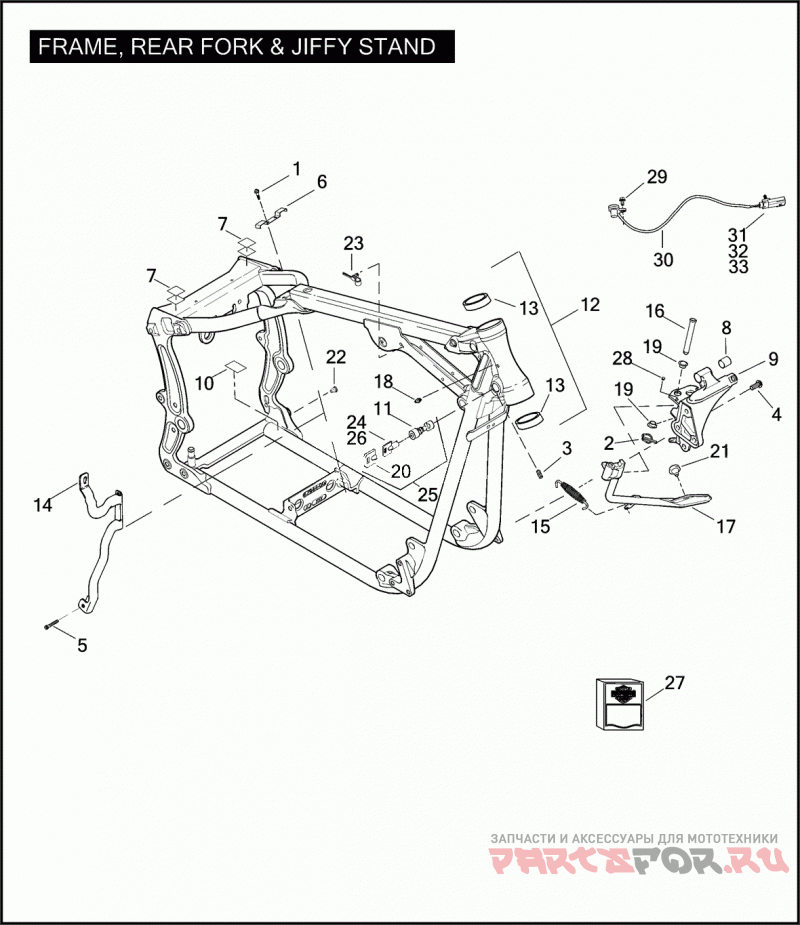

FRAME, REAR FORK & JIFFY STAND

Harley Davidson FXSTSSE3 1PT9 CVO SOFTAIL SPRINGER (2009)

Harley Davidson
#oem кодцена
1
939
SCREW 1/4-20 X 1 SELF-TAPPING, W/WASHER (GRADE 2)
2
554A
PRETZEL CLIP
3
3233
SCREW 1/4-28 X 1/4 SOCKET HD.
4
4512A
SCREW 3/8-16 X 1 TORX RECESSED BUTTON HD. (GRADE 8)
5
4813A
SCREW 1/4-20 X 1-3/8 KNURLED HD., W/LOCKPATCH
6
10193
WIRE CLAMP
7
11576
Подушка
8
33708-94
BEARING SLEEVE
9
33749-07A
BRACKET JIFFY STAND, SHIFT LEVER & FOOTREST (CHROME) W/ 33708-94
10
39986-08
SCUFF PLATE FRAME
11
45680-90
FORKLOCK (SPECIFY KEY CODE)
12
47173-09BKO
FRAME W/ 48315-60 (2) (CANDY COBALT)
12
47173-09BSF
FRAME W/ 48315-60 (2) (SUNRISE YELLOW PEARL)
12
47173-09CRP
FRAME W/ 48315-60 (2) (BLACK DIAMOND)
13
48315-60
BEARING CUP
14
48872-09
POST ASSEMBLY SEAT (GRANITE)
15
49725-07A
SPRING jiffy stand
16
50003-89B
CLEVIS PIN
17
49768-09A
LEG JIFFY STAND (CHROME)
18
83459-09
FITTING lubrication
19
53176-08
Втулка
20
61081-92
COVER KEY HEAD SET
21
62123-07
Амортизатор ударов
22
68446-00
Заглушка
23
70446-08
RETAINER THROTTLE CABLE
24
71031-04
KEY KIT DECO
25
71450-04
LOCK SET COMPLETE, W/ KEYS, IGNITION SWITCH & FORK LOCK (DOES NOT INCLUDE CVO GOLD KEY)
27
91625-04
COVER KIT MOTORCYCLE
28
94090-91T
Заглушка
29
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
30
49716-08A
SENSOR JIFFY STAND (HDI)
31
72169-07
TERMINAL PIN (HDI)
32
72511-07BK
HOUSING 3-WAY (HDI)
33
73213-07
RETAINER X-MAS TREE CLIP (HDI)
