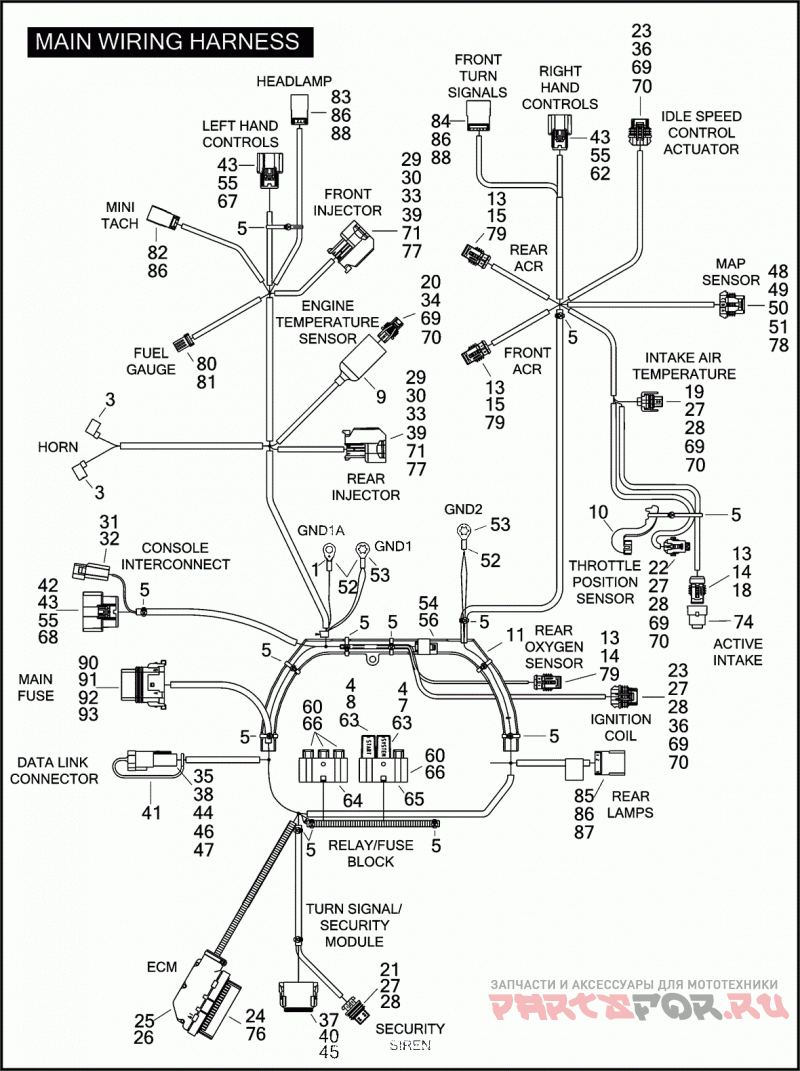

Жгут проводов главный

Harley Davidson FXSTSSE3 1PT9 CVO SOFTAIL SPRINGER (2009)

Harley Davidson
#oem кодцена
70132-09
MAIN WIRING HARNESS
1
9819
TERMINAL RING
2
9842
TERMINAL RING, #10-12 AWG
3
9898
TERMINAL FLAG
4
9937
TERMINAL FEMALE, #14-16 WIRE
4
10006
CABLE STRAP (NOT ILLUSTRATED)
5
10065
CABLE STRAP
6
10177
CABLE STRAP PLUG-IN
7
31511-01B
RELAY BLACK
8
31522-00C
RELAY
9
70598-99
BOOT ENGINE TEMPERATURE SENSOR
10
70976-06
WIRE GUIDE
11
70996-08
SHIELD LOOM
12
72006-05
TERMINAL SOCKET, #16-20 AWG
13
72007-05
HOUSING 2-WAY, SOCKET
14
72010-05
WIRE SEAL #22-26 AWG (GREEN)
15
72011-05
WIRE SEAL #16-20 AWG
16
72012-07
HOUSING 5-WAY, SOCKET
17
72014-07
SEAL PIN
18
72024-08
TERMINAL SOCKET, #20-22 AWG
19
72062-06
HOUSING 2-WAY - FEMALE
20
72063-06
HOUSING 2-WAY - FEMALE
21
72064-06
SOCKET HOUSING 3-WAY - FEMALE
22
72065-06A
HOUSING 3-WAY - FEMALE
23
72066-06A
SOCKET HOUSING 4-WAY - FEMALE (BLACK)
24
72076-00
SOCKET TERMINAL #18 WIRE
25
72077-00
SEAL PIN
26
72078-00
KIT CONNECTOR
27
72094-06
TERMINAL SOCKET
28
72096-06
WIRE SEAL #18-20 AWG (YELLOW)
29
72098-06
HOUSING 2-WAY
30
72099-06
WIRE SEAL #16-18 AWG (BLUE)
31
72100-04
HOUSING 1-WAY - MALE/GRAY
32
72105-04
TERMINAL #12 AWG - MALE
33
72110-06
TERMINAL #16-18 AWG
34
72111-06
SECONDARY LOCK 2-WAY (GRAY)
35
72124-94GY
PIN HOUSING 4-WAY (GRAY)
36
72135-06
SECONDARY LOCK 4-WAY (GRAY)
37
72139-94GY
SOCKET HOUSING 12-WAY (GRAY)
38
72144-94
SECONDARY LOCK 4-WAY
39
72145-06
SECONDARY LOCK 2-WAY (BLUE)
40
72159-94
SECONDARY LOCK 12-WAY
41
72164-94A
PLUG 4-WAY CONNECTOR
42
72166-07BK
SOCKET HOUSING 16-WAY (BLACK)
43
72168-07
TERMINAL SOCKET, #18-20 AWG
44
72190-94
TERMINAL PIN
45
72191-94
TERMINAL SOCKET
46
72195-94
SEAL PIN
47
72199-94
CONNECTOR ANCHOR
48
72213-94
TERMINAL SOCKET
49
72214-94
CABLE SEAL #14-16 WIRE
50
72230-98
SOCKET HOUSING 3-WAY
51
72231-98
SECONDARY LOCK 3-WAY
