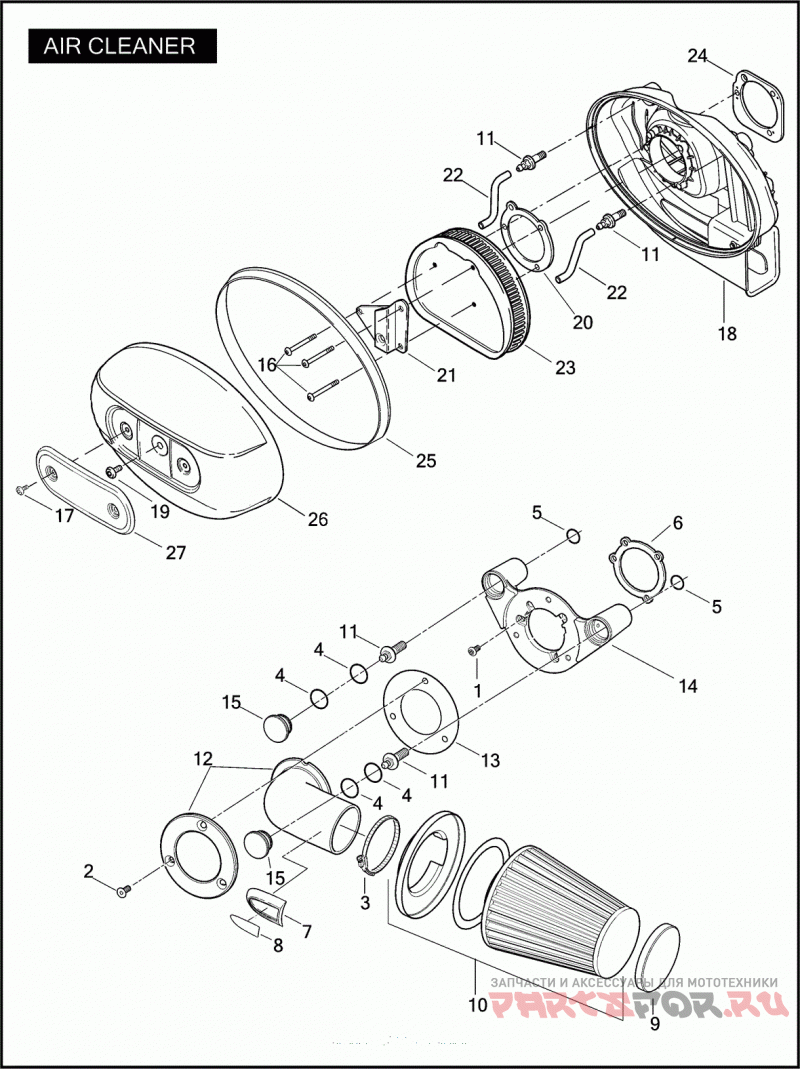

Воздушный фильтр

Harley Davidson FXSTSSE3 1PT9 CVO SOFTAIL SPRINGER (2009)

Harley Davidson
#oem кодцена
1
926
BOLT 1/4-20 X 5/8 BUTTON HD.
2
2484
Винт
3
10074
CLAMP WORMDRIVE
4
10925
Уплотнительное кольцо
5
11292
Уплотнительное кольцо
6
29059-88A
GASKET BACKPLATE
7
29276-09
INSERT MEDALLION
8
29277-09
MEDALLION
9
29280-09
END CAP ELEMENT (CHROME)
10
29424-05A
KIT FILTER
11
29465-08A
BREATHER BOLT
12
29571-08
TUBE INTAKE (CHROME)
13
29593-05A
GASKET INTAKE TUBE
14
29618-05A
BACKPLATE
15
29830-05A
PLUG BACKPLATE
16
945
SCREW 1/4-20 X 2-1/2 TORX BUTTON HD. (GRADE 8)
17
3048
SCREW NO. 10-24 X 3/8 HEX BUTTON HD.
18
29104-08A
BACKPLATE ASSEMBLY AIR CLEANER (HDI)
19
29269-83A
SCREW 15/16-18 X 5/8 HEX BUTTON HD., W/LOCKPATCH
20
29313-95
GASKET FILTER ELEMENT (HDI)
21
29474-99A
BRACKET AIR CLEANER COVER (HDI)
22
29476-99
BREATHER TUBE (HDI)
23
29509-06
ELEMENT AIR FILTER, W/ 29313-95 (HDI)
24
29583-01A
GASKET FILTER ELEMENT (HDI)
25
29584-01
SEAL AIR CLEANER COVER (HDI)
26
29852-09
COVER (CHROME) (HDI)
27
30064-09
INSERT AIR CLEANER COVER (HDI)
