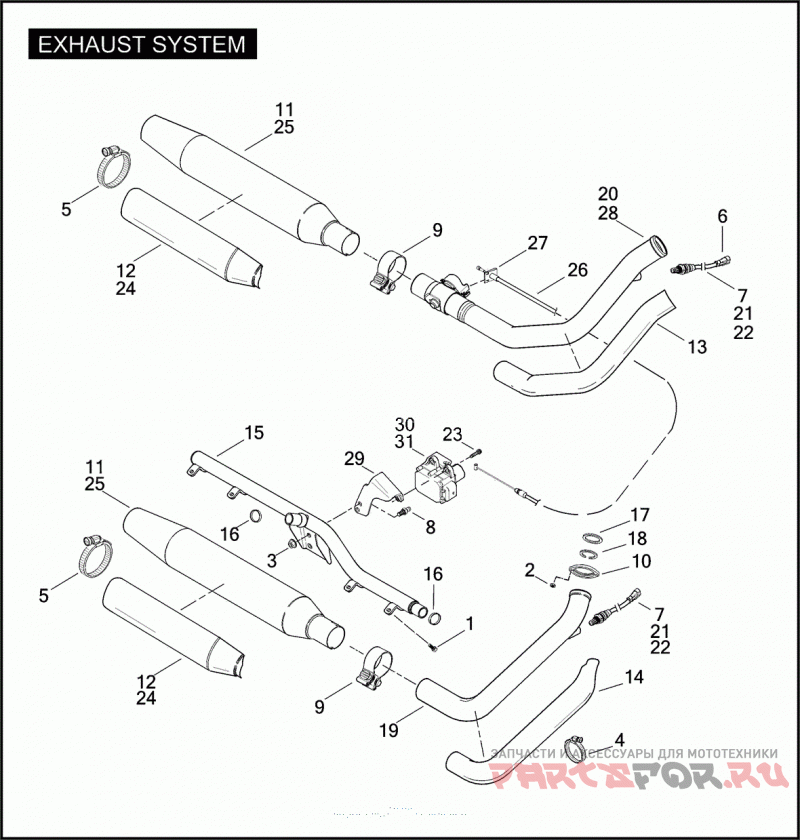

Глушитель

Harley Davidson FXSTSSE3 1PT9 CVO SOFTAIL SPRINGER (2009)

Harley Davidson
#oem кодцена
1
3391
SCREW 1/4-20 X 7/16 HEX FLANGE HD.
2
7593
NUT 5/16-24 FLANGE
3
7601
LOCKNUT 3/8-16 FLANGE
4
9955
CLAMP SHIELD
5
10074
CLAMP SHIELD (CALIFORNIA)
6
10147
CLIP CONNECTOR O² SENSOR
7
27683-07
OXYGEN SENSOR W/ 27714-06, 72009-05 & 72011-05
7
27714-06
SEAL RING (NOT ILLUSTRATED)
8
11860
STUD SPACER
9
65296-95A
CLAMP MUFFLER
10
65184-02
FLANGE EXHAUST PIPE
11
65872-09
MUFFLER ASSEMBLY FRONT/REAR (CALIFORNIA)
12
66846-09
SHIELD MUFFLER, FRONT (CALIFORNIA, DOMESTIC & CANADA)
12
66876-09
SHIELD MUFFLER, REAR (CALIFORNIA, DOMESTIC & CANADA)
13
66772-08
SHIELD REAR EXHAUST
14
65732-00B
SHIELD FRONT EXHAUST
15
66773-08
TUBE ASSEMBLY INTERCONNECT
16
65830-03
GASKET EXHAUST INTERCONNECT
17
65324-83B
GASKET EXHAUST PORT
18
65325-83A
RETAINING RING EXHAUST GASKET
19
66780-07
EXHAUST PIPE ASSEMBLY FRONT
20
66795-08
EXHAUST PIPE ASSEMBLY REAR (DOMESTIC, CALIFORNIA, CANADA)
21
72009-05
HOUSING 2-WAY PIN
22
72011-05
WIRE SEAL #16-20 AWG
23
3574
SCREW 1/4-20 X 3/4 FLANGE
24
65463-00
SHIELD MUFFLER (HDI)
25
65682-07
MUFFLER ASSEMBLY FRONT (HDI)
25
65685-07
MUFFLER ASSEMBLY REAR (HDI)
26
66847-08
EXHAUST ACTUATOR CABLE W/ 66767-07 (HDI)
27
66767-07
RETAINER CABLE (HDI)
28
66794-08
EXHAUST PIPE REAR (HDI)
29
66797-07
BRACKET EXHAUST ACTUATOR (HDI)
30
70991-07
EXHAUST ACTUATOR W/ 71019-07 (HDI)
31
71019-07
SHROUD EXHAUST ACTUATOR (HDI)
