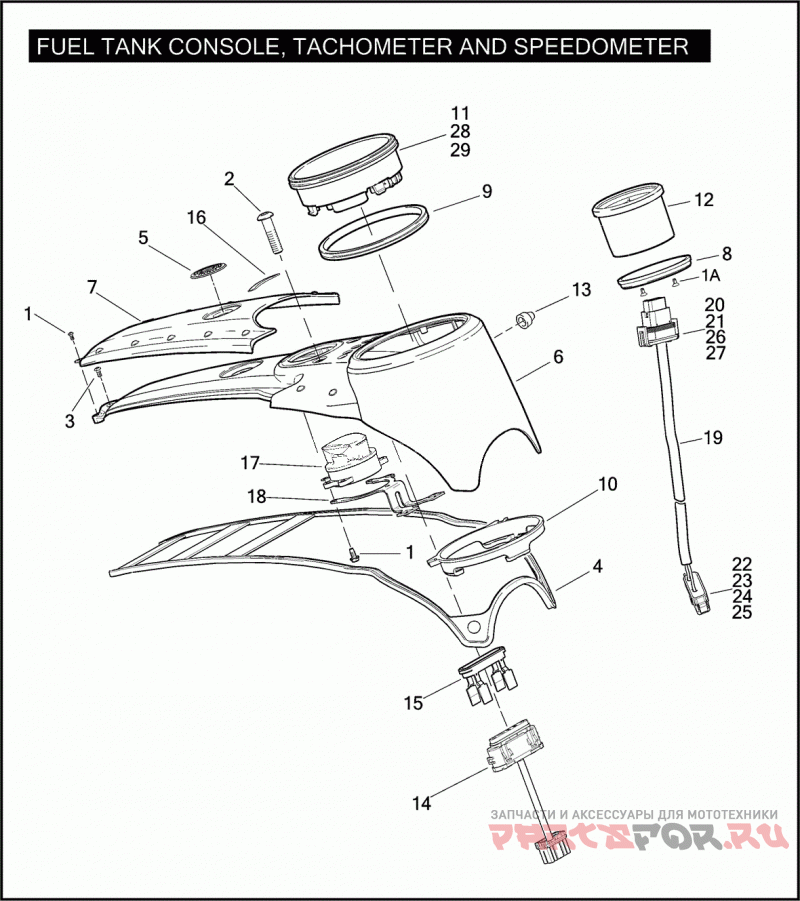

FUEL TANK CONSOLE, TACHOMETER AND SPEEDOMETER

Harley Davidson FXDFSE 1PW8 CVO FAT BOB (2009)

Harley Davidson
#oem кодцена
1
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
1A
2548
SCREW NO.8-32 X 3/4 SOCKET HD., W/LOCKPATCH
2
3033
SCREW 1/4-20 X 3/4 HEX SOCKET BUTTON HD.
3
3540
SCREW 5/16-18 X 5/8 SOCKET BUTTON HD.
4
11903
GASKET CONSOLE
5
53463-06
MEDALLION ADHESIVE
6
61715-09
Консоль
7
61720-09BSF
TRIM COVER CONSOLE (SUNRISE YELLOW PEARL)
7
61720-09CRP
TRIM COVER CONSOLE (BLACK DIAMOND)
7
61720-09CYW
TRIM COVER CONSOLE (DENIM GRANITE)
7
61720-09BDK
TRIM COVER CONSOLE (PRIMED)
7
61720-09CFZ
TRIM COVER CONSOLE (ELECTRIC ORANGE)
8
67121-95A
Прокладка
9
67190-89
SEAL SPEEDOMETER
10
67271-04A
BACKCLAMP SPEEDOMETER
11
67371-09
SPEEDOMETER MPH
12
67541-08
TACHOMETER
13
67880-94
BOOT RESET
14
68892-00A
INDICATOR LIGHT ASSEMBLY
15
68893-00A
RETAINER INDICATOR LIGHT
16
71262-05
LABEL IGNITION
17
71740-09
IGNITION SET
18
71769-09
BRACKET IGNITION SWITCH
19
71960-08
INSTRUMENT HARNESS ASSEMBLY W/ 20, 21, 22, 23, 24, 25, 26 & 27
20
72131-04
HOUSING 12- WAY, SOCKET (GRAY)
21
72189-04
SEAL PIN
22
74116-98BK
HOUSING 6-WAY, SOCKET
23
74156-98
SECONDARY LOCK 6-WAY, SOCKET
24
74191-98
TERMINAL SOCKET
25
74195-98
SEAL PIN
26
74196-04
TERMINAL SOCKET, #20AWG
27
74197-04
SECONDARY LOCK 12-WAY, SOCKET
28
67372-09
SPEEDOMETER KPH (CANADA, HDI)
29
67386-09
SPEEDOMETER MPH/KPH (ENGLAND)
