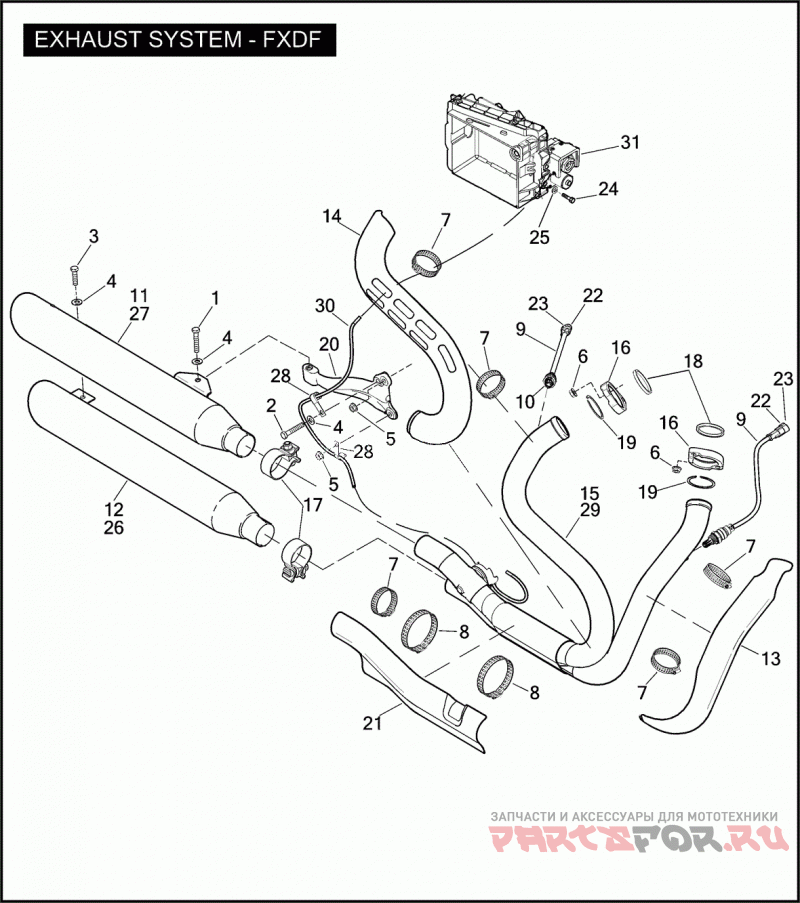

EXHAUST SYSTEM - FXDF

Harley Davidson FXDF 1GY4 DYNA FAT BOB (2009)

Harley Davidson
#oem кодцена
1
2667
Деталь BOLT 5/16-18 X 2 HEX HD. (GRADE 5)
2
2887WA
Деталь SCREW 5/16-18 X 1-3/4 HEX HD. (GRADE 5)
3
4269
Деталь SCREW 5/16-18 X 3/4, FLANGE HD.
4
6702
Деталь WASHER 5/16 X 11/16 X 1/16
5
7531
Деталь LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
6
7593
Деталь NUT 5/16-24 FLANGE
7
9955
Зажим
8
9956
Зажим
9
27683-07
Деталь SENSOR OXYGEN, W/ 27714-06, 72009-05 & 72011-05
10
27714-06
Деталь WASHER OXYGEN SENSOR (NOT ILLUSTRATED)
11
64705-08B
Деталь MUFFLER REAR (CHROME) (AUSTRALIA, CANADA, DOMESTIC)
12
64987-08A
Деталь MUFFLER FRONT (CHROME) (DOMESTIC, CALIFORNIA, CANADA)
13
64819-08
Деталь SHIELD FRONT EXHAUST (CHROME)
14
64830-08
Деталь SHIELD REAR EXHAUST (CHROME)
15
64984-08A
Деталь EXH PIPE ASY,SS,DOM/JPN
16
65184-02
Деталь FLANGE PIPE
17
65296-95A
Деталь CLAMP MUFFLER
18
65324-83B
Деталь GASKET, exhaust port
19
65325-83A
Деталь RETAINING RING EXHAUST GASKET
20
65696-08B
Деталь BRACKET REAR EXHAUST
21
66840-08
Деталь HEATSHIELD ASSEMBLY COLLECTOR (FORWARD CONTROLS)
21
66841-08
Деталь HEATSHIELD ASSEMBLY COLLECTOR (MID-CONTROLS)
22
72009-05
Деталь HOUSING 2-WAY PIN
23
72011-05
Деталь WIRE SEAL #16-20 AWG (YELLOW)
24
923
Деталь SCREW 1/4-20 X 3/4 SOCKET PAN HD.
25
6703
Деталь WASHER 1/4 X 5/8 X 1/16
26
64700-08
Деталь MUFFLER LOWER (CHROME) (HDI, AUSTRALIA, ENGLAND, JAPAN)
26
64987-08A
Деталь MUFFLER FRONT (CHROME) (DOMESTIC, CALIFORNIA, CANADA)
27
64701-08
Деталь MUFFLER UPPER (CHROME) (JAPAN)
27
64705-08B
Деталь MUFFLER REAR (CHROME) (AUSTRALIA, CANADA, DOMESTIC)
28
66798-07
Деталь CLAMP EXHAUST VALVE (HDI, AUSTRALIA, ENGLAND)
29
66808-08A
Деталь EXHAUST PIPE ASSEMBLY (ASIA-PACIFIC, AUSTRALIA, ENGLAND, HDI)
29
64997-08
Деталь EXHAUST PIPE ASSEMBLY (JAPAN)
30
66852-08
Деталь CABLE EXHAUST VALVE (HDI, AUSTRALIA, ENGLAND)
31
70991-07
Деталь ACTUATOR EXHAUST (HDI, AUSTRALIA, ENGLAND)
31
71019-07
Деталь SHROUD EXHAUST ACTUATOR (NOT ILLUSTRATED) (HDI, AUSTRALIA, ENGLAND)
