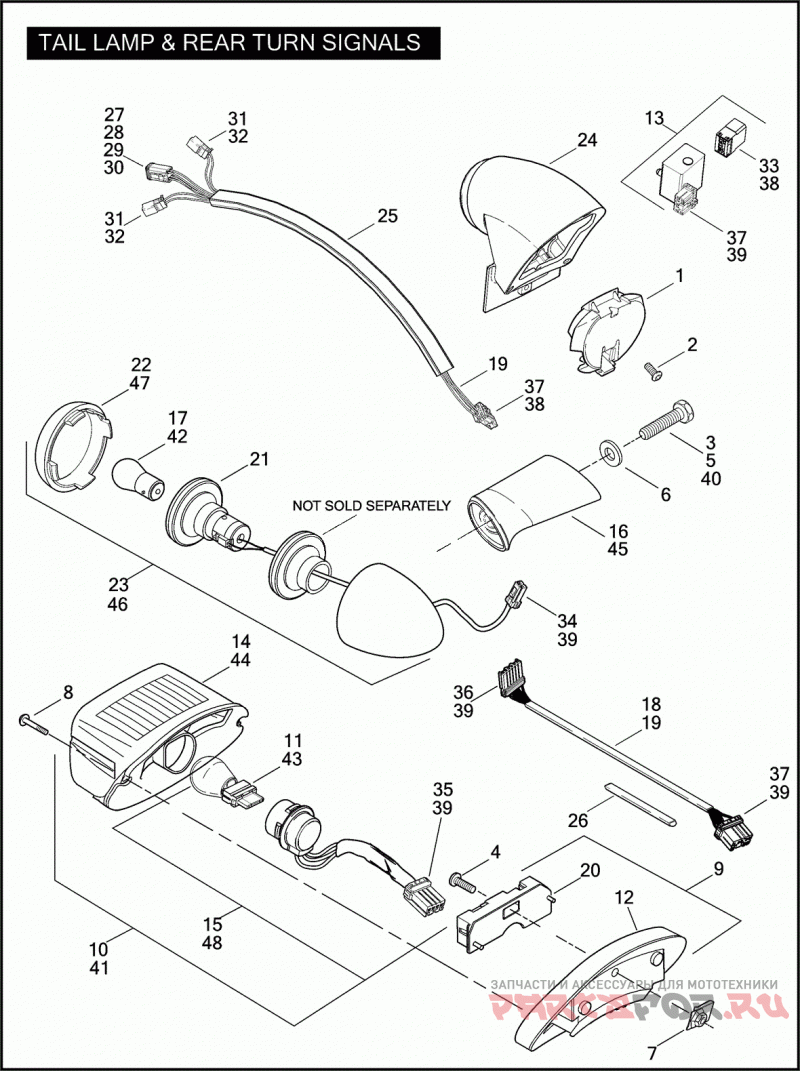

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FXDB 1GX4 DYNA STREET BOB (2009)

Harley Davidson
#oem кодцена
1
766
Заглушка
2
1001
SCREW 1/4-20 X 5/8 TORX BUTTON HD., SELF-TAPPING (GRADE 8)
5
4068A
BOLT 5/16-18 X 2-1/2 HEX HD. (GRADE 5)
6
6016
WASHER 11/32 X 11/16 X 1/16
13
68334-09A
STT MODULE W/ CENTER LAMP (DOMESTIC)
16
69438-06
SUPPORT REAR LAMP MOUNTING
17
68168-89A
BULB REAR TURN SIGNAL
19
68785-09A
HARNESS ASSEMBLY (HDI & CANADA)
22
68559-07
LENS RED
23
68461-09
TURN SIGNAL ASSEMBLY REAR
24
69598-09A
TAIL LAMP ASSEMBLY W/ GASKET (ASIA-PACIFIC, AUSTRALIA, ENGLAND, HDI, JAPAN & CANADA)
25
69200018
CONDUIT HARNESS
27
72114-94BK
PLUG, 4-way socket
28
72154-94
SECONDARY LOCK 4-PLACE SOCKET
29
72191-94
TERMINAL SOCKET, #16-18 AWG
30
72195-94
PLUG SEAL PIN
31
72904-01BK
HOUSING 4-PLACE PIN (BLACK)
32
72990-01
TERMINAL PIN, #16-20 AWG
33
73108-96BK
HOUSING 8-PLACE PIN
34
72914-01BK
HOUSIG 4-PLACE SOCKET
37
73158-96BK
HOUSING 8-PLACE SOCKET
38
73190-96
TERMINAL PIN, #16-30 AWG
39
72991-01
TERMINAL SOCKET, #18-22 AWG (DOMESTIC)
40
4116
SCREW 5/16-18 X 3-5/8 HEX HD.
41
68141-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68372-03 & 69187-03A (HDI)
42
68163-84
BULB (HDI)
45
68480-02
SUPPORT REAR LAMP MOUNTING (HDI)
46
68467-09
TURN SIGNAL ASSEMBLY REAR (HDI)
47
68755-07
LENS RED (HDI)
