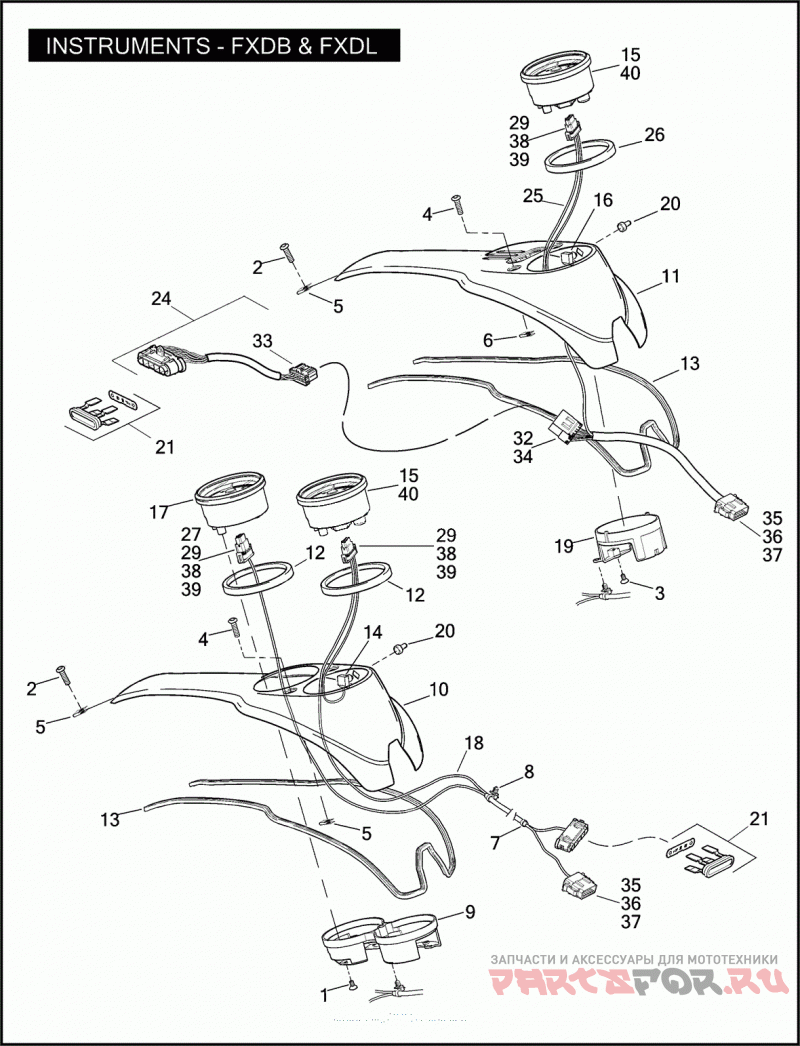

INSTRUMENTS - FXDB & FXDL

Harley Davidson FXDB 1GX4 DYNA STREET BOB (2009)

Harley Davidson
#oem кодцена
2
3540
SCREW 5/16-18 X 5/8 SOCKET BUTTON HD.
3
3691
SCREW NO. 8-32 X 5/8 SOCKET BUTTON HD.
4
4007
SCREW 5/16-18 X 1-1/4 SOCKET BUTTON HD.
5
8165
SPEED NUT
6
8173
SPEED NUT
7
10065
CABLE STRAP
8
10177
CABLE STRAP
11
61705-06
CONSOLE (BLACK WRINKLE)
13
67185-04
TRIM CONSOLE
15
67478-09
SPEEDOMETER MPH
16
67488-04
SWITCH RESET
19
67689-04
CLAMP GAUGE
20
67880-94
BOOT RESET SWITCH
21
68382-07B
BEZEL ASSEMBLY INDICATOR LAMPS
24
68789-96B
INDICATOR LAMP ASSEMBLY W/ 73160-96BK (REPLACES 68789-96)
25
70472-06
HARNESS ASSEMBLY INSTRUMENTS
26
70476-06
GASKET SPEEDOMETER
28
72169-07
TERMINAL PIN, #16-20 AWG
29
72189-04
SEAL PIN
30
72488-07BK
HOUSING 12-WAY PIN (BLACK)
32
73110-96BK
HOUSING 10-WAY PIN
33
73160-96BK
HOUSING SOCKET
34
73190-96
TERMINAL PIN
35
74119-98BK
HOUSING 12-WAY SOCKET (BLACK)
36
74159-98
SECONDARY LOCK 12-WAY SOCKET
37
74191-98
TERMINAL SOCKET
38
74196-04
TERMINAL SOCKET, #20 AWG
39
74197-04
SECONDARY LOCK 12-WAY SOCKET
40
67479-09
SPEEDOMETER KPH (HDI, CANADA, AUSTRALIA, JAPAN)
40
67480-09
SPEEDOMETER MPH/KPH (ENGLAND)
