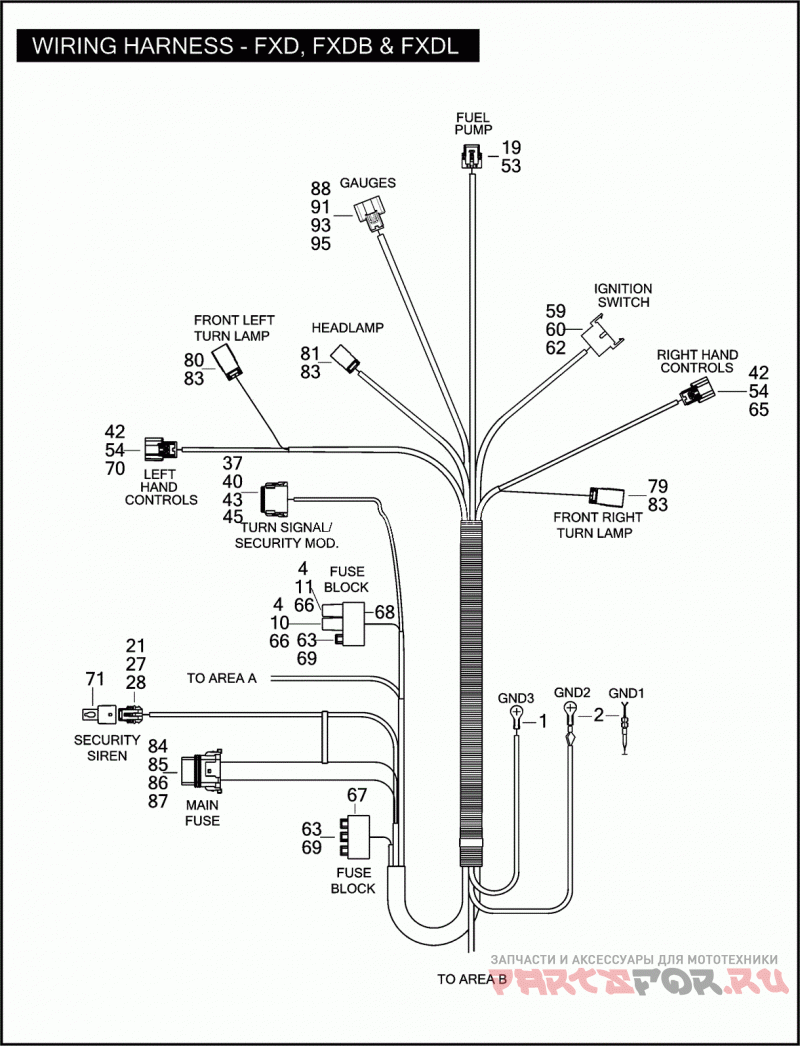

WIRING HARNESS - FXD, FXDB & FXDL

Harley Davidson FXD 1GM4 DYNA SUPER GLIDE (2009)

WIRING HARNESS - FXD, FXDB & FXDL

#

oem код

название

цена

MAIN WIRING HARNESS

MAIN WIRING HARNESS

1

TERMINAL RING, .25 STUD, #12 AWG

TERMINAL RING, .25 STUD, #12 AWG

2

TERMINAL RING, .25 STUD, #14-18 AWG

TERMINAL RING, .25 STUD, #14-18 AWG

3

TERMINAL RING, .31 STUD, #10-12 AWG

TERMINAL RING, .31 STUD, #10-12 AWG

4

TERMINAL .25 FASTON, #18-14 AWG

TERMINAL .25 FASTON, #18-14 AWG

5

TERMINAL FLAG

TERMINAL FLAG

6

CABLE STRAP

CABLE STRAP

7

CABLE STRAP

CABLE STRAP

8

CABLE STRAP

CABLE STRAP

9

CABLE STRAP

CABLE STRAP

10

RELAY SYSTEM, W/ DIODE SUPPRESS (BLACK)

RELAY SYSTEM, W/ DIODE SUPPRESS (BLACK)

11

RELAY STARTER, W/ DIODE SUPPRESS (GRAY)

RELAY STARTER, W/ DIODE SUPPRESS (GRAY)

12

BOOT ENGINE TEMPERATURE SENSOR

BOOT ENGINE TEMPERATURE SENSOR

13

WIRE GUIDE THROTTLE POSITION SENSOR

WIRE GUIDE THROTTLE POSITION SENSOR

14

TERMINAL SOCKET, #16-20 AWG

TERMINAL SOCKET, #16-20 AWG

15

HOUSING 2-WAY SOCKET

HOUSING 2-WAY SOCKET

16

WIRE SEAL #16-20 AWG (YELLOW)

WIRE SEAL #16-20 AWG (YELLOW)

17

HOUSING 5-WAY SOCKET

HOUSING 5-WAY SOCKET

18

SEAL PIN

SEAL PIN

19

TERMINAL SOCKET, #16-20 AWG

TERMINAL SOCKET, #16-20 AWG

20

HOUSING 2-WAY SOCKET (ENGINE TEMPERATURE SENSOR)

HOUSING 2-WAY SOCKET (ENGINE TEMPERATURE SENSOR)

21

HOUSING 3-WAY SOCKET (VEHICLE SPEED SENSOR)

HOUSING 3-WAY SOCKET (VEHICLE SPEED SENSOR)

22

HOUSING 3-WAY SOCKET (THROTTLE POSITION SENSOR)

HOUSING 3-WAY SOCKET (THROTTLE POSITION SENSOR)

23

HOUSING 4-WAY SOCKET (BLACK)

HOUSING 4-WAY SOCKET (BLACK)

24

TERMINAL SOCKET

TERMINAL SOCKET

25

SEAL PIN

SEAL PIN

26

CONNECTOR KIT 36 POSITION

CONNECTOR KIT 36 POSITION

27

TERMINAL SOCKET, #18 AWG

TERMINAL SOCKET, #18 AWG

28

WIRE SEAL #18-20 AWG (YELLOW)

WIRE SEAL #18-20 AWG (YELLOW)

29

HOUSING 2-WAY SOCKET

HOUSING 2-WAY SOCKET

30

WIRE SEAL #16-18 AWG (BLUE)

WIRE SEAL #16-18 AWG (BLUE)

31

HOUSING 1-WAY PIN (GRAY)

HOUSING 1-WAY PIN (GRAY)

32

HOUSING SEALED, 4-PIN

HOUSING SEALED, 4-PIN

33

TERMINAL SOCKET, #16-18 AWG

TERMINAL SOCKET, #16-18 AWG

34

SECONDARY LOCK 2-WAY SOCKET (GRAY)

SECONDARY LOCK 2-WAY SOCKET (GRAY)

35

HOUSING SEALED, 4-PIN (GRAY)

HOUSING SEALED, 4-PIN (GRAY)

36

SECONDARY LOCK 4-WAY SOCKET (GRAY)

SECONDARY LOCK 4-WAY SOCKET (GRAY)

37

HOUSING SEALED 12-WAY SOCKET, W/ 72179-94 (GRAY)

HOUSING SEALED 12-WAY SOCKET, W/ 72179-94 (GRAY)

38

SECONDARY LOCK 4-WAY PIN

SECONDARY LOCK 4-WAY PIN

39

SECONDARY LOCK 2-WAY SOCKET (BLUE)

SECONDARY LOCK 2-WAY SOCKET (BLUE)

40

SECONDARY LOCK 12-WAY PIN

SECONDARY LOCK 12-WAY PIN

41

WEATHER PLUG 4-WAY PIN

WEATHER PLUG 4-WAY PIN

42

TERMINAL SOCKET, #16-20 AWG

TERMINAL SOCKET, #16-20 AWG

43

INTERNAL SEAL 12-CIRCUIT

INTERNAL SEAL 12-CIRCUIT

44

TERMINAL PIN, #16-18 AWG

TERMINAL PIN, #16-18 AWG

45

TERMINAL SOCKET, #16-18 AWG

TERMINAL SOCKET, #16-18 AWG

46

SEAL PIN

SEAL PIN

47

TERMINAL SOCKET, #16-20 AWG

TERMINAL SOCKET, #16-20 AWG

48

CABLE SEAL

CABLE SEAL

49

HOUSING SEALED, 3-WAY SOCKET

HOUSING SEALED, 3-WAY SOCKET

50

SECONDARY LOCK 3-WAY SOCKET

SECONDARY LOCK 3-WAY SOCKET
