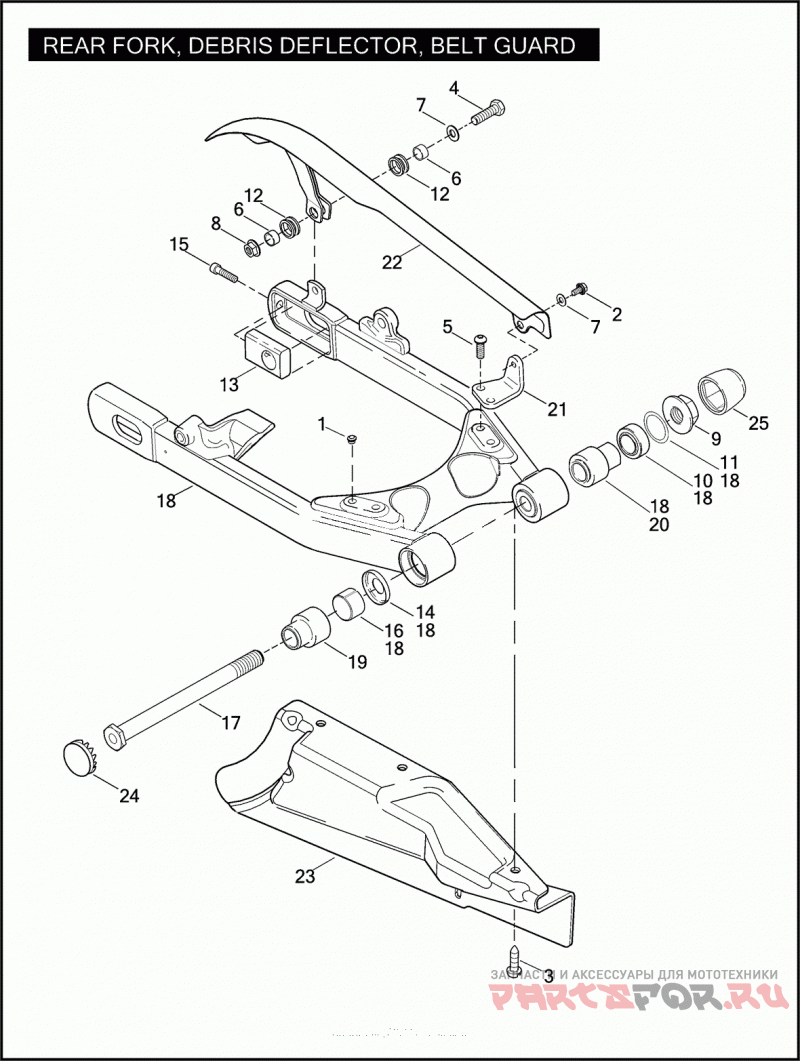

REAR FORK, DEBRIS DEFLECTOR, BELT GUARD для мотоциклов Harley Davidson FXD 1GM4 DYNA SUPER GLIDE (2009) (2009)

REAR FORK, DEBRIS DEFLECTOR, BELT GUARD

Harley Davidson FXD 1GM4 DYNA SUPER GLIDE (2009)

oem код

название

цена

740

PLUG HOLE

3340

SCREW 5/16-18 X 1/2 HEX HD. (GRADE 8)

3579A

SCREW 1/4-28 X 1/4 SEMS HEX HD., SELF-TAPPING (GRADE 2)

4007

SCREW 5/16-18 X 1-1/4 SOCKET BUTTON HD.

4512A

SCREW 3/8-16 X 1 TORX RECESSED BUTTON HD. (GRADE 8)

5928

Проставка

6702

WASHER 5/16 X 11/16 X 1/16

7531

LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE

8050

NUT FLANGE

9208

BEARING PIVOT

10992

RETAINING RING INTERNAL

GROMMET BELT GUARD

BLOCK AXLE ADJUSTER

DUST SHIELD

SCREW 3/8-16 X 0.163 (GRADE 8)

47624-90B

Втулка

47641-06

SCREW 3/4-10 X 9-1/4 HEX HD. (GRADE 8)

47820-06

REAR FORK ASSEMBLY W/ 10992, 9208, 41585-90B, 47624-90A & 47844-06

SPACER RIGHT HAND

SPACER LEFT HAND

BRACKET BELTGUARD

BELT GUARD (CHROME)

DEBRIS DEFLECTOR

PLUG HOLE

COVER REAR AXLE NUT (HDI)
