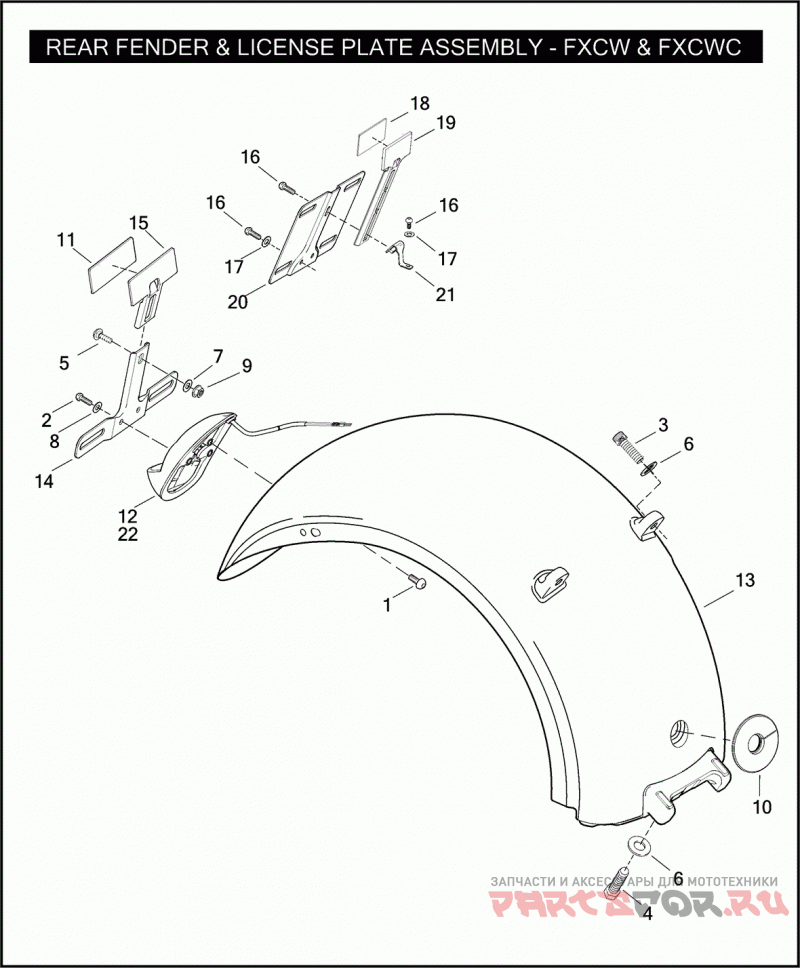

REAR FENDER & LICENSE PLATE ASSEMBLY - FXCW & FXCWC

Harley Davidson FXCWC 1JK5 ROCKER C (2009)

Harley Davidson
#oem кодцена
1
940
SCREW 1/4-20 X 3/4 TORX BUTTON HD.
2
2508
SCREW NO. 10-32 X 1/2 SOCKET HD.
3
4355B
SCREW 3/8-16 X 1-3/4 TORX HD. (GRADE 8)
4
4721
BOLT 3/8-16 X 1-1/2 HEX HD. (GRADE 5)
5
5403B
BOLT 1/4-20 X 3/8 CARRIAGE
6
6532
WASHER 3/8 X 3/4 X 1/8
7
6703
WASHER 1/4 X 5/8 X 1/16
8
6716
WASHER NO. 10 X 1/2 X 3/64
9
7792
NUT 1/4-20 X 1/4 (GRADE 2)
10
11648A
Уплотнитель резиновый
11
59359-06
Отражатель
12
60239-08A
HOUSING ASSEMBLY LICENSE PLATE (CHROME)
13
60132-08A
REAR FENDER ASSEMBLY (PRIME)
14
60225-08BHP
BRACKET LICENSE PLATE
15
60226-08
REFLECTOR BRACKET
16
2508
SCREW NO. 10-32 X 1/2 SOCKET HD.
17
6716
WASHER NO. 10 X 1/2 X 3/64
18
59259-90
REFLECTOR (CANADA, HDI)
19
60247-08
REFLECTOR BRACKET (CANADA, HDI)
20
60904-08
BRACKET LICENSE PLATE (CANADA, HDI)
21
60905-08
ANGLE BRACKET (CANADA, HDI)
22
60242-08B
HOUSING ASSEMBLY W/ BRAKE/ TAILIGHT (CANADA, HDI) (CHROME)
