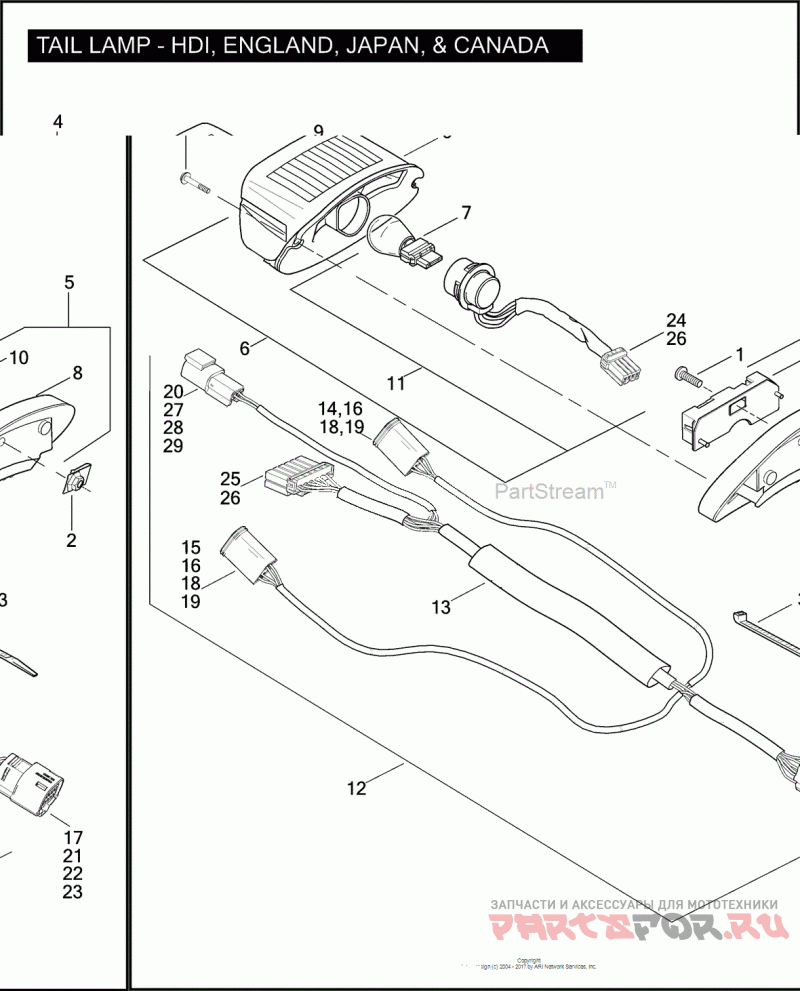

TAIL LAMP - HDI, ENGLAND, JAPAN,& CANADA

Harley Davidson FLTRSE3 1PV8 CVO ROAD GLIDE (2009)

Harley Davidson
#oem кодцена
1
3022A
Деталь SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
2
7964
Деталь J-NUT
3
10006
Деталь CABLE STRAP
4
68026-99
Деталь SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
5
68066-99A
Деталь TAIL LAMP BASE ASSEMBLY W/ 68296-99A & 68830-99A
6
68142-04
Деталь LIGHT ASSEMBLY TAIL LAMP, W/ 68558 & 69187-03A
7
68167-04
Деталь BULB TAIL LIGHT, WEDGE MOUNT
8
68296-99A
Деталь TAIL LAMP BASE (CHROME)
9
68558-03
Деталь LENS TAIL LAMP, W/ 68026-99
10
68830-99A
Деталь CIRCUIT BOARD & COVER
11
69187-03A
Деталь BULB SOCKET ASSEMBLY TAIL LAMP, W/ 68167-04, 73154-96BK, & 73191-96
12
70450-09
Деталь HARNESS REAR LIGHTING, W/ 13,14,15,16,17,18,19,20,21,22,23,25,26,27,28 & 29
13
70522-06B
Деталь CONDUIT self-adhesive
14
72114-94BK
Деталь SOCKET HOUSING 4-WAY (BLACK)
15
72114-94BK
Деталь PLUG, 4-way socket
16
72154-94
Деталь SECONDARY LOCK 4-WAY SOCKET
17
72168-07
Деталь TERMINAL SOCKET 16-20GA
18
72191-94
Деталь TERMINAL SOCKET
19
72195-94
Деталь SEAL PIN
20
72199-94
Деталь ANCHOR T-STUD
21
72272-07
Деталь TERMINAL SOCKET 14-16GA
22
72473-07
Деталь SEAL PIN
23
72479-07BK
Деталь SOCKET HOUSING 8-WAY (BLACK)
24
73154-96BK
Деталь SOCKET HOUSING 4-PLACE
25
73156-96BK
Деталь SOCKET HOUSING 6-PLACE
26
73191-96
Деталь SOCKET TERMINAL #16-20 AWG
27
74102-98BK
Деталь PIN HOUSING 2-WAY (BLACK)
28
74142-98
Деталь SECONDARY LOCK 2-WAY PIN
29
74190-98
Деталь TERMINAL PIN 16-20AWG
