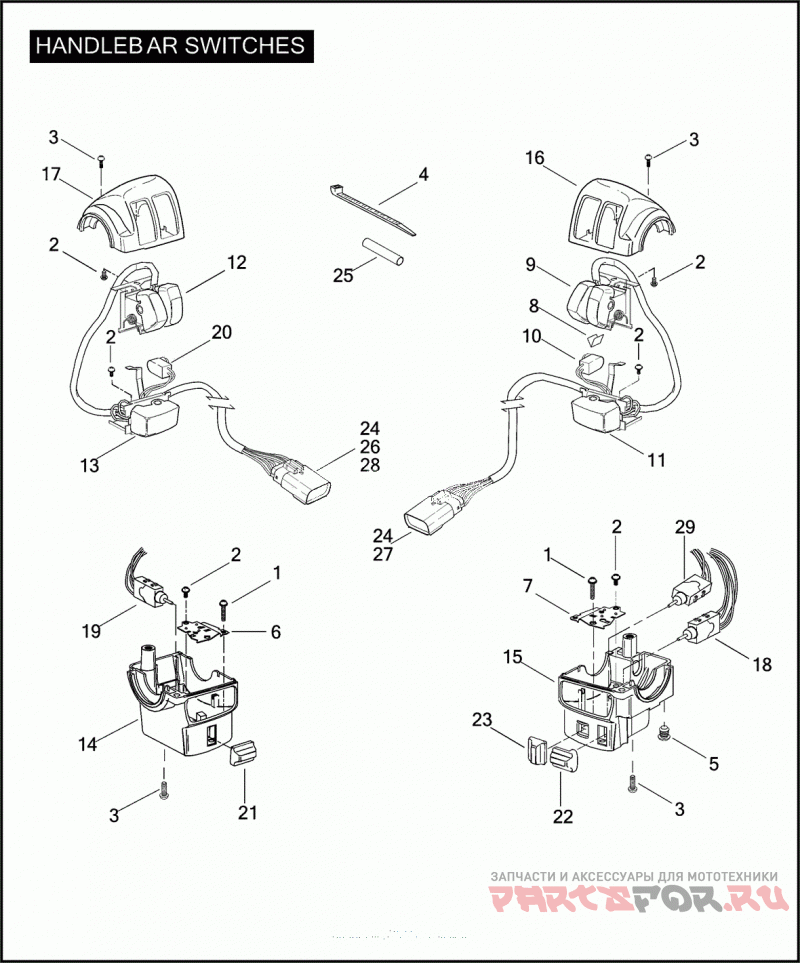

HANDLEBAR SWITCHES

Harley Davidson FLTRSE3 1PV8 CVO ROAD GLIDE (2009)

Harley Davidson
#oem кодцена
1
2559
SCREW NO. 6-32 X 3/4 PHILLIPS PAN HD., W/LOCKWASHER
2
2955
SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
3
4292
SCREW NO. 10-24 X 1/2 TORX BUTTON HD.
4
10006
STRAP CABLE
5
55928-08
Заглушка
6
70372-96
BRACKET SWITCH, LOWER LEFT
7
70375-96
BRACKET SWITCH, LOWER RIGHT
8
71587-04
CLIP SPRING
9
71684-06A
SWITCH ASSEMBLY ENGINE START/OFF/RUN, W/ 10181 & 72266-94
10
71621-08
STOPLAMP SWITCH KIT w/ 10181 & 72266-94
11
71683-06A
SWITCH ASSEMBLY RIGHT TURN SIGNAL, W/ 10181 & 72266-94
12
71682-06A
SWITCH ASSEMBLY HEADLAMP HIGH/LOW & HORN, W/ 10181 & 72266-94
13
71685-06A
SWITCH ASSEMBLY LEFT TURN SIGNAL, W/ 10181 & 72266-94
14
71611-96A
HOUSING LOWER LEFT
15
71612-96
HOUSING LOWER RIGHT
16
71614-96
HOUSING UPPER RIGHT
17
71615-96
HOUSING UPPER LEFT
18
71787-08
SWITCH KIT mode select, w/ 10181 & 72266-94
19
71810-08
SWITCH KIT AUDIO CONTROL +/-, W/ 10181 & 72266-94
20
71699-07
SWITCH CLUTCH LOCKOUT
21
71821-98
KNOB +/- AUDIO
22
71822-98
KNOB MODE SELECT, UP/DOWN
23
71825-96A
KNOB CRUISE CONTROL, SET/RESUME
24
72169-07
TERMINAL PIN, #16-20 AWG (LEFT)
25
72266-94
TUBE HEAT SHRINK, DUAL WALL, 0.3 X 2 INCH (BLACK)
26
72473-07
SEAL PIN
27
72488-07BK
HOUSING PIN, 12-WAY
28
72492-07GY
HOUSING PIN, 16-WAY
29
71788-08
SWITCH KIT cruise control, set/resume, w/ 10181 & 72266-94, FB/FF/KB/KH with cruise
