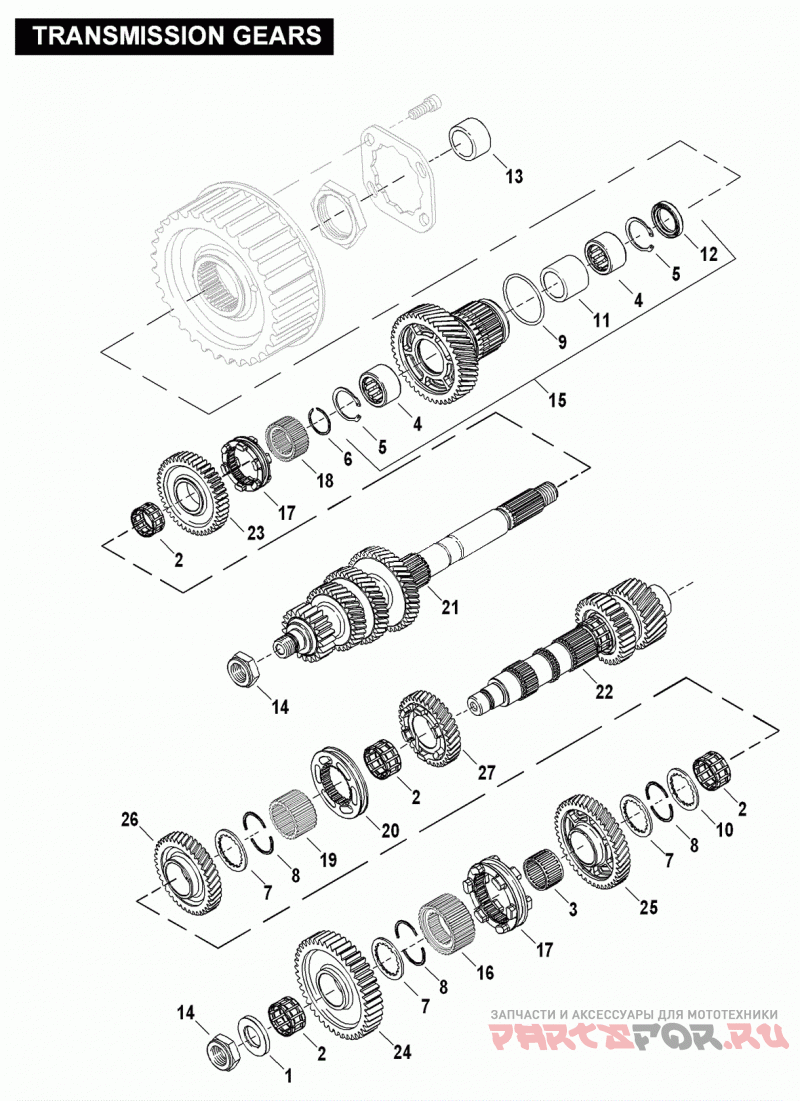

TRANSMISSION GEARS

Harley Davidson FLTR3 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
1
5837A
SPACER | PV
2
8026K
BEARING, needle | PV
3
8041
BEARING, needle | PV
4
8042
BEARING, needle | PV
5
10991A
RETAINING RING | PV
6
11061A
RETAINING RING | PV
7
11081A
RING, lock | PV
8
11082
SECURING SEGMENT | PV
9
11201
O-RING | PV
10
11207A
WASHER internal spline | PV
11
11599A
SPACER BEARING | PV
12
12077
OIL SEAL | PV
13
34091-08
BEARING, inner race | PV
14
35078-79
NUT, 3/4-16 X .391 X 1 | PV
15
35122-06
GEAR ASSEMBLY, driven output, w/ 8042, 10991, 11201, 11599 & 12077 | PV
16
35124-06
GUIDE HUB, dog ring | PV
17
35126-06
DOG RING, lugged | PV
18
35467-06B
INPUT SHAFT KIT w/ 11061A, 34091-08 & 35201-10 | PV
19
35202-06
GUIDE HUB, dog ring | PV
20
35204-06
DOG RING, pocketed | PV
21
35467-08
INPUT SHAFT | PV
22
35470-06
COUNTER SHAFT ASSEMBLY | PV
23
35801-06
GEAR, fifth input | PV
24
35600104
COUNTERSHAFT,XMSN,1ST GEAR | PV
25
35807-06
GEAR, countershaft-second | PV
26
35811-06
GEAR, countershaft-third | PV
27
35814-06
GEAR, countershaft-fourth | PV
