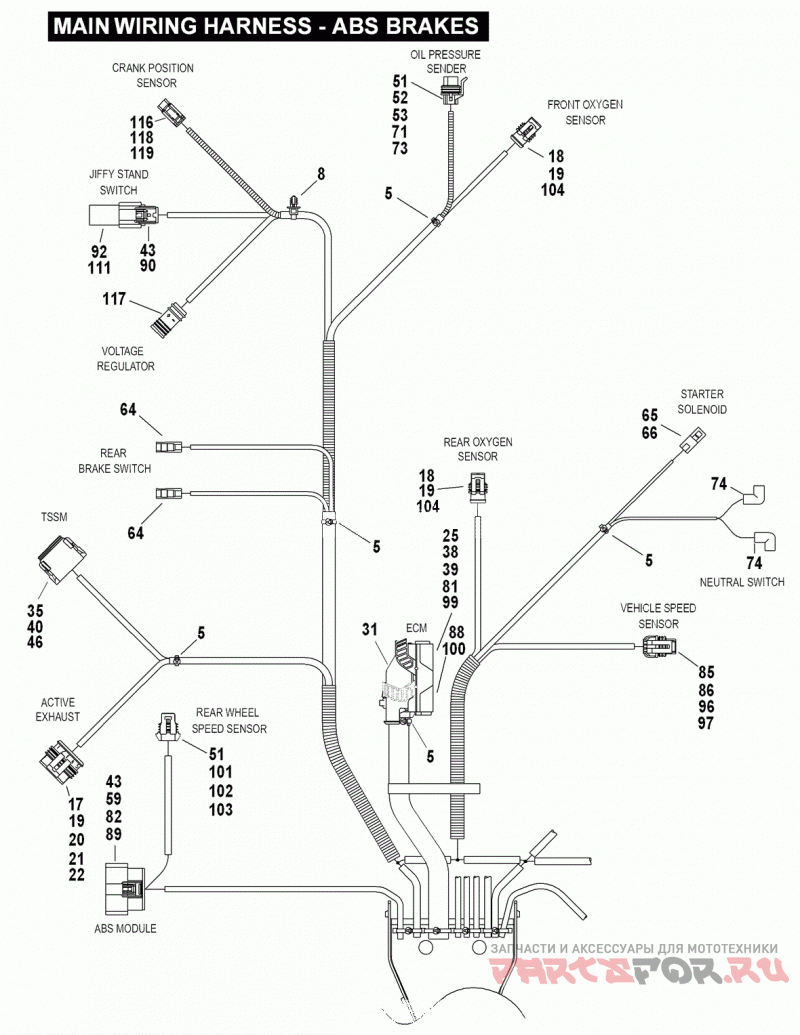

MAINWIRING HARNESS - ABS BRAKES (Part 5)

Harley Davidson FLTR3 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
70128-09
Деталь MAIN WIRING HARNESS - ABS - Includes the following parts. | PV
5
10065
Деталь CABLE STRAP | PV
8
10177
Деталь CABLE STRAP, tree mount | PV
17
72006-05
Деталь SOCKET TERMINAL, 16-20 AWG | PV
18
72007-05
Деталь SOCKET HOUSING, 2-way | PV
19
72011-05
Деталь WIRE SEAL, 16-20 AWG (yellow) | PV
20
72012-07
Деталь SOCKET HOUSING, 5-way | PV
21
72014-07
Деталь SEAL PIN | PV
22
72024-08
Деталь SOCKET TERMINAL, 20-22 AWG | PV
25
72079-08
Деталь SOCKET HOUSING, 73-way | PV
31
72115-08
Деталь COVER, 73-way socket housing | PV
35
72139-94GY
Деталь SOCKET HOUSING, 12-way w/ 72179-94 (gray) | PV
38
72155-08
Деталь LOCK, secondary, 73-way, socket housing | PV
39
72157-08
Деталь PLR, GT280 | PV
40
72159-94
Деталь SOCKET LOCK, secondary, 12-way | PV
43
72168-07
Деталь TERMINAL, socket, 16-18 AWG | PV
46
72191-94
Деталь TERMINAL, socket, 16-18 AWG | PV
51
72213-94
Деталь TERMINAL, socket, female, 16-20 AWG | PV
52
72214-94
Деталь CABLE SEAL | PV
53
72232-96
Деталь SEAL PLUG | PV
59
72272-07
Деталь TERMINAL, socket, 14-16 AWG | PV
64
72290-94
Деталь TERMINAL, 1/4 inch insulated | PV
65
72291-94
Деталь TERMINAL, 14-16 AWG | PV
66
72295-94
Деталь CONNECTOR, starter housing | PV
71
72400-99
Деталь CONNECTOR, 4-way | PV
73
72403-99
Деталь SECONDARY LOCK, 4-way | PV
74
72405-98BK
Деталь WIRING ASSEMBLY, push-on, right angle molded, 65-1/2 in. length | PV
81
72440-08
Деталь SEAL PIN, plug | PV
82
72473-07
Деталь SEAL, pin | PV
85
72484-08
Деталь TERMINAL, socket, 20 AWG | PV
86
72486-08
Деталь SEAL WIRE, 20 AWG (green) | PV
88
72495-08
Деталь TERMINAL, socket, 12-14 AWG (gold) | PV
89
72500-07ABK
Деталь SOCKET HOUSING, 20-way (black) | PV
90
72512-07BK
Деталь SOCKET HOUSING, 3-way (black) | PV
92
72519-09BK
Деталь DUST CAP, 3-way socket (black) | PV
96
72543-07BK
Деталь SOCKET HOUSING, 3-way (black) | PV
97
72544-07
Деталь SECONDARY LOCK, 3-way, female | PV
99
72556-08
Деталь SEAL WIRE, 12-14 AWG | PV
100
72605-08
Деталь TERMINAL, socket, 20 AWG (gold) | PV
101
72606-08
Деталь SOCKET HOUSING, 2-way | PV
102
72609-08
Деталь SECONDARY LOCK, 2-way (black) | PV
103
72610-08
Деталь SEAL, 18-20 AWG (white) | PV
104
72611-07
Деталь TERMINAL, socket, 16-20 AWG (gold) | PV
107
73108-96BK
Деталь PIN HOUSING, 8-place (black) | PV
111
73213-07
Деталь RETAINER, X-MAS TREE CLIP | PV
116
74112-98BK
Деталь SOCKET HOUSING, 2-way (black) | PV
117
74115-06
Деталь DC LEAD ASSEMBLY | PV
118
74152-98
Деталь SOCKET LOCK, secondary, 2-way | PV
119
74191-98
Деталь SOCKET TERMINAL | PV
