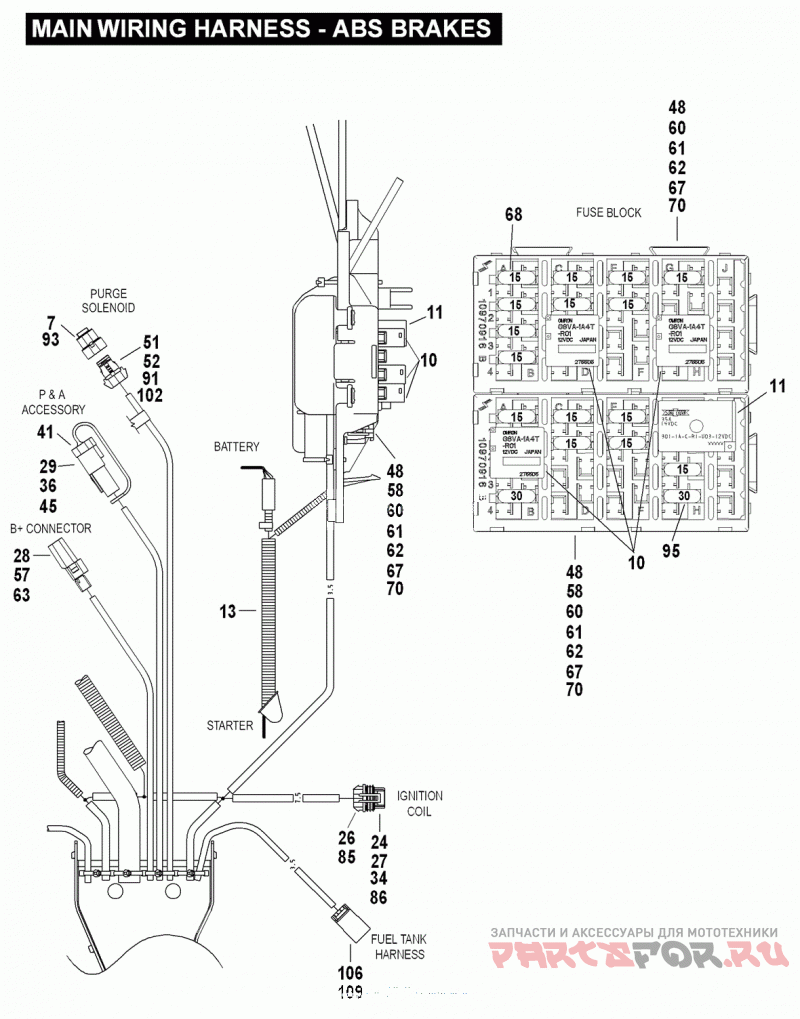

MAINWIRING HARNESS - ABS BRAKES (Part 3)

Harley Davidson FLTR3 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
70128-09
MAIN WIRING HARNESS - ABS - Includes the following parts. | PV
7
10147
CLIP, connector | PV
10
31586-07
RELAY | PV
11
31595-09
RELAY, high current | PV
13
70377-09
CABLE ASSEMBLY, battery positive to starter, w/ 70578-89, 73304-04 & 73305-04 | PV
24
72066-06A
SOCKET HOUSING 4-way female (black) | PV
26
72094-06
TERMINAL, socket, 18 AWG | PV
27
72096-06
WIRE SEAL, 18-20 AWG (yellow) | PV
28
72100-04
HOUSING, 1-way, male (gray) | PV
29
72104-94BK
HOUSING, 4-pin (black) | PV
34
72135-06
LOCK, secondary, 4-way socket, female | PV
36
72144-94
PIN LOCK, secondary, 4-way | PV
41
72164-94A
WEATHER PLUG, 4-way | PV
45
72190-94
TERMINAL, pin, 16-18 AWG | PV
48
72204-04
FUSE/RELAY BLOCK, bussed | PV
51
72213-94
TERMINAL, socket, female, 16-20 AWG | PV
52
72214-94
CABLE SEAL | PV
57
72260-04
HOUSING, female (gray) | PV
58
72265-04
SECONDARY LOCK, bussed fuse block | PV
60
72279-04
TERMINAL, female, 14-16 AWG | PV
61
72282-09
SECONDARY LOCK, bussed fuse block, 2-row | PV
62
72286-04
TERMINAL, buss, female, 12-14 AWG | PV
63
72289-04
TERMINAL, female, 10-12 AWG | PV
67
72309-04
TERMINAL, 16-18 AWG | PV
68
72330-95
FUSE, 15 AMP (blue) | PV
70
72359-05
TERMINAL, female, 10-12 AWG | PV
85
72484-08
TERMINAL, socket, 20 AWG | PV
86
72486-08
SEAL WIRE, 20 AWG (green) | PV
91
72518-01
SOCKET HOUSING, 2-way (red) | PV
93
72533-06
DUST CAP, 2-pin connector (1 - DOM; 3 - JAPAN) | PV
95
72539-06
FUSE, 30 amp, mini type (green) | PV
102
72609-08
SECONDARY LOCK, 2-way (black) | PV
106
73104-96BK
PIN HOUSING, 4-place (black) | PV
107
73108-96BK
PIN HOUSING, 8-place (black) | PV
109
73190-96
TERMINAL, pin, 16-20 AWG | PV
