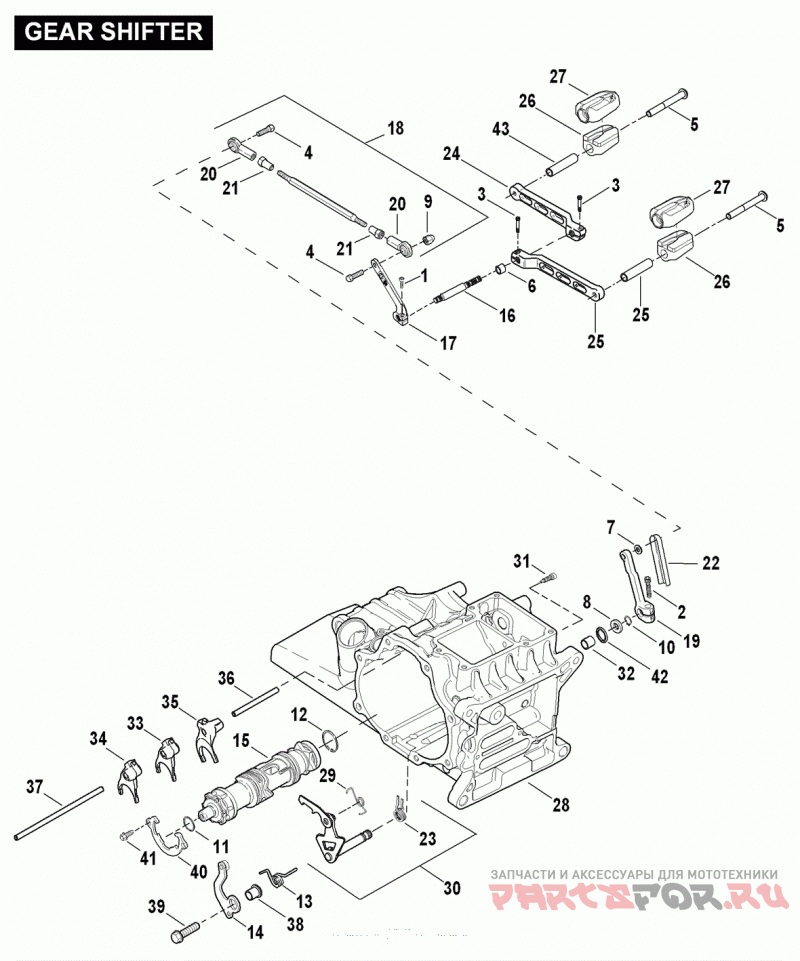

GEAR SHIFTER

Harley Davidson FLTR3 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
1
780
SCREW, 1/4-20 X 7/8 SEMS hex hd. (Grade 8) | PV
2
856A
SCREW, 5/16-24 X 1 socket hd. (Grade 8) | PV
3
3275
SCREW, 5/16-18 X 3/4 socket hd. (Grade 8) | PV
4
4192
SCREW, 5/16-24 X 59/64 hex hd. | PV
5
4196
SCREW, 5/16-24 X 2-3/4 TORX button hd. | PV
6
5817
SPACER | PV
7
5826
SPACER, shifter cover | PV
8
6497HW
WASHER, 29/64 X 1-1/8 X 1/16 | PV
9
7904
ACORN NUT, 0.312-24 (stainless) | PV
10
11150
RING, retaining, external | PV
11
11389
RING, shift cam retaining | PV
12
11575
RING, shift cam retaining | PV
13
33389-07
SPRING DETENT | PV
14
33409-06B
DETENT ARM ASSEMBLY, w/ 33389-07 | PV
15
33413-06A
SHIFTER CAM ASSEMBLY, w/ 11389 & 11575 | PV
16
33709-82A
SHAFT | PV
17
33718-82B
LEVER, gearshift (chrome) | PV
18
33819-98A
SHIFTER LINKAGE KIT, w/ 4192, 5826, 7904, 33888-99, 33889-99, & 33890-99A | PV
19
33849-97
LEVER, shifter rod | PV
20
33888-99
ROD END, self-aligning (polished stainless steel) | PV
21
33889-99
NUT, rod-end (polished stainless steel) | PV
22
33890-99A
COVER, shifter rod | PV
23
34064-00C
SPRING, shifter return | PV
24
34532-00B
LEVER, shifter heel (chrome) | PV
25
34568-00B
LEVER, shifter toe (chrome) | PV
26
33960-09
TREAD, shifter peg | PV
27
33961-09
COVER, shifter peg (chrome) | PV
28
34753-08A
TRANSMISSION CASE SUBASSEMBLY (Domestic, Canada & HDI) (granite) | PV
34740-07B
TRANSMISSION CASE SUBASSEMBLY (Japan) (black) | PV
29
34987-06
SPRING, ratchet lever | PV
30
35081-06
SHIFT MECHANISM, w/ 34064-00C, 34980-06 & 34987-06 | PV
31
35082-07
CENTERING SCREW, shift lever | PV
32
35186-06
SLEEVE | PV
33
35187-06
FORK, shift 1 - 2 | PV
34
35210-06
FORK, shift 3 - 4 | PV
35
35217-06
FORK, shift 5 - 6 | PV
36
35222-06
SHAFT, 5 - 6 shift fork | PV
37
35223-06
SHAFT, 1 - 2 & 3 - 4 shift fork | PV
38
35243-06
SLEEVE | PV
39
35244-06
SCREW, 5/16-18 X 1-1/4 hex flange hd. | PV
40
35249-06A
LOCK PLATE shift cam | PV
41
35259-06
SCREW, No. 10-24 X 1/2 hex hd. (Grade 8) | PV
42
11000101
OIL SEAL | PV
43
50784-97
SLEEVE | PV
