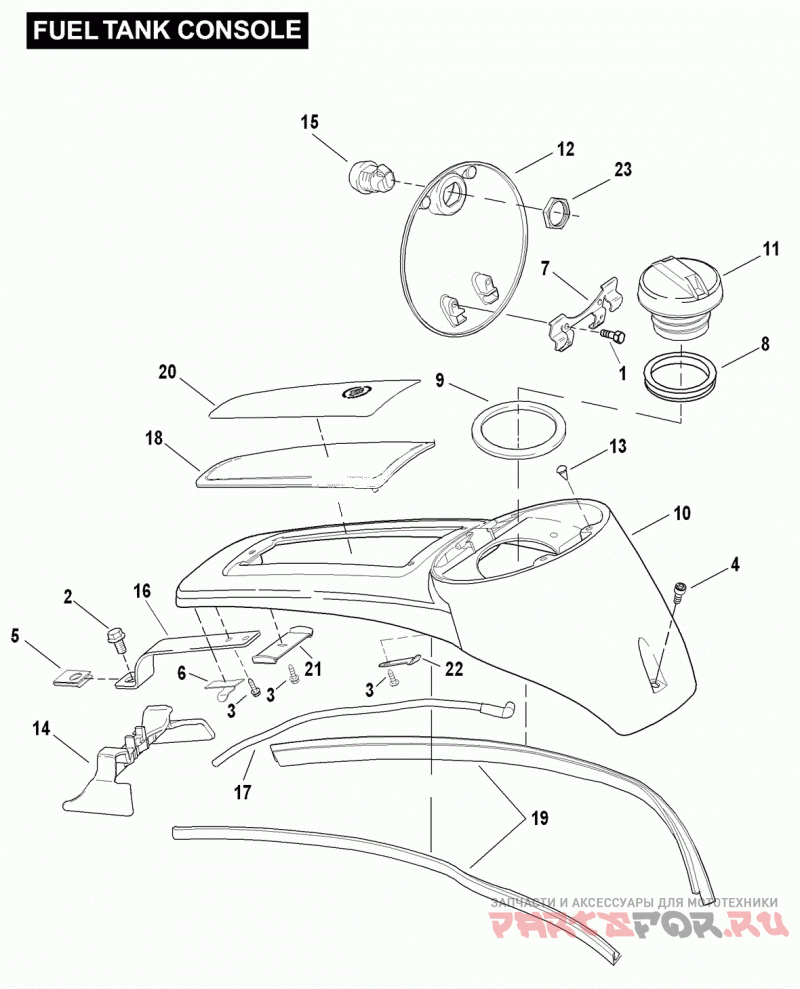

FUELTANK CONSOLE

Harley Davidson FLTR3 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
1
3529
SCREW, No. 10-32 X 1/4 hex slotted washer hd., self-tapping | PV
2
3588
SCREW, 1/4-20 X 1/2 hex flange hd. | PV
3
4194
SCREW, No. 10-24 X 5/16 TORX pan `hd. (Grade 5) | PV
4
4856
SCREW, No. 10-24 X 1/2 socket head (stainless) | PV
5
8142
NUT, speed | PV
6
10103
CLIP, adhesive backed | PV
7
10334
CLIP, hinge mounting | PV
8
61109-85D
GASKET, filler cap | PV
9
61112-08
BOOT | PV
10
61270-08
CONSOLE ASSEMBLY, w/ hinge pin | PV
11
61274-92
FUEL FILLER CAP, vacuum vented, w/ 61109-85D | PV
12
61278-08A
DOOR KIT CONSOLE, WITH 10200442 | PV
13
61313-88
BUMPER, cover | PV
14
62775-08
TRIM COVER, fuel tank | PV
15
53919-04A
PUSH BUTTON KIT, fuel tank, w, 10334, &84850-92 | PV
16
67493-08
BRACKET, console mount | PV
17
69241-08
DRAIN HOSE, console | PV
18
70014-09
INSERT, console pod | PV
19
71294-08
MOLDING, rubber | PV
20
71701-09
INSERT CONSOLE, fuel tank **RESTRICTED SALE PART** | PV
21
77177-08
BRACKET, retainer, rear, console pod | PV
22
77188-08
BRACKET, retainer, front, console pod | PV
23
84850-92
NUT, 3/4-24 X 5/32 | PV
