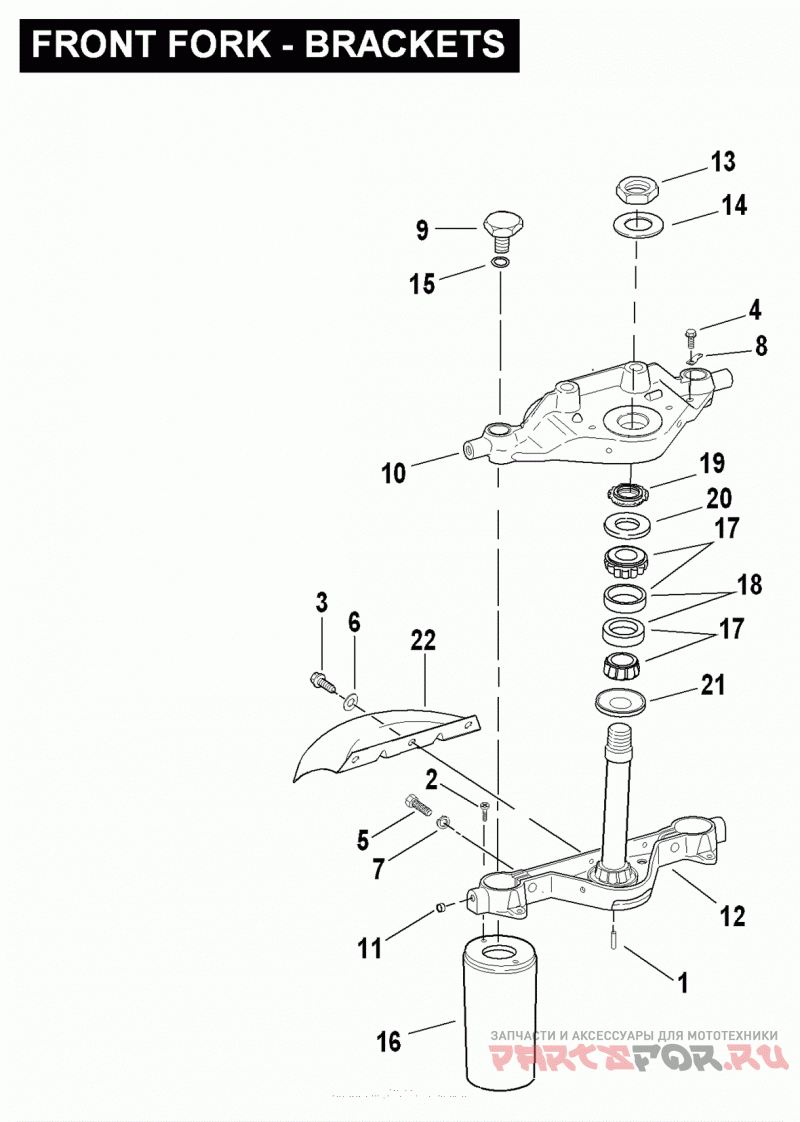

FRONT FORK - BRACKETS

Harley Davidson FLTR3 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
1
608
ROLL PIN | PV
2
3537
SCREW, 1/4-28 X 1/2 flange hd., w/lockpatch | PV
3
3892
SCREW, 1/4 X 5/8 self-tapping | PV
4
4240
SCREW, No. 10-24 X 3/16 hex hd., w/washer | PV
5
4855
SCREW, 7/16-20 X 1-3/8 hex hd. (Grade 8) | PV
6
6703
WASHER, 1/4 X 5/8 X 1/16 | PV
7
7039
LOCKWASHER, 7/16 | PV
8
10138
TAB, electrical ground | PV
9
45419-80
BOLT, fork | PV
10
45435-10
BRACKET upper fork stem | PV
11
45442-86
GUIDE BUSHING, fork stem bracket assembly | PV
12
45446-09
BRACKET ASSEMBLY, lower, w/ 608 & 48365-48A | PV
13
45718-60
NUT, 1-24 X 1.5 X 0.47 | PV
14
45727-08
WASHER, 1-1/32 X 2.0 X 1/16 | PV
15
45733-48
OIL SEAL, fork bracket bolt | PV
16
45963-97
FORK SLIDER COVER KIT | PV
17
48300-60
ROLLER BEARING, steering head, w/ 48315-60 | PV
18
48315-60
CUP, bearing | PV
19
48333-80
SEAT, upper head cone | PV
20
48361-80
DUST SHIELD, bearing, upper | PV
21
48365-48A
DIRT GUARD, bearing, steering head | PV
22
58520-79B
AIR BAFFLE (gloss black) | PV
