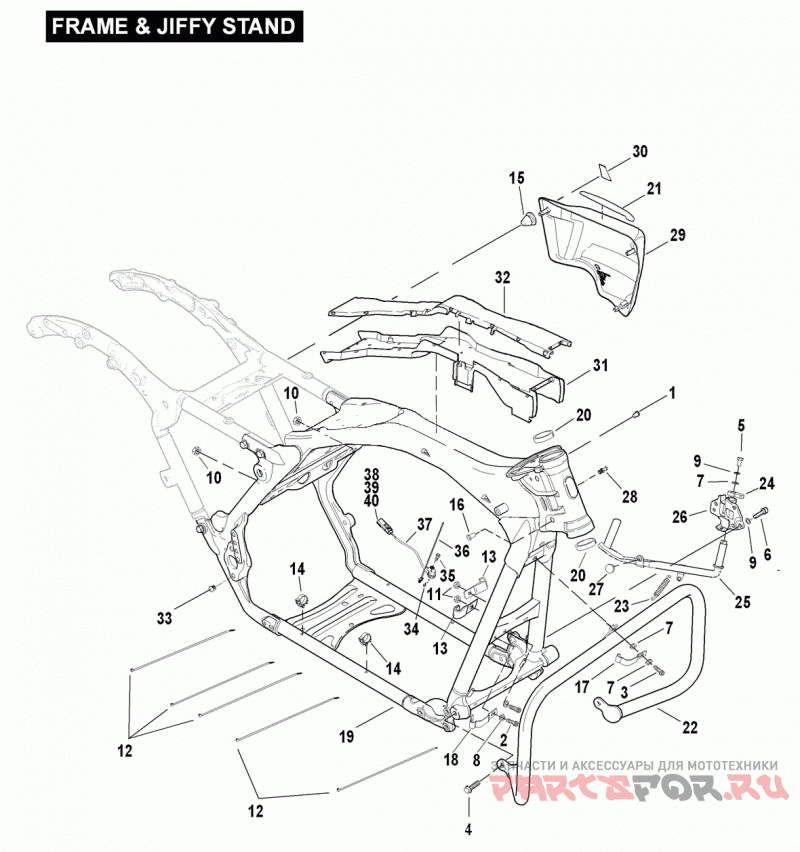

FRAME & JIFFY STAND

Harley Davidson FLTR3 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
1
755
PLUG | PV
2
1001
SCREW, 1/4-20 X 5/8 TORX button hd., self-tapping (Grade 8) | PV
3
2708A
SCREW, 5/16-18 X 1 socket hd. | PV
4
4924
SCREW, 3/8-16 X 7/8 TORX button hd. (zinc plate) (Grade 5) | PV
5
3987
BOLT, 5/16-18 X 3/4 hex hd. (Grade 5) | PV
6
4688
SCREW, 3/8-16 X 1-1/4 SEMS hex socket hd., w/ lock patch | PV
7
6702
WASHER, 5/16 X 11/16 X 1/16 | PV
8
6703
WASHER, 1/4 X 5/8 X 1/16 | PV
9
7041
LOCKWASHER, 5/16 | PV
10
7495
NUT, M6 flange | PV
11
7688
NUT, 1/4-20 X 7/32 X 7/16 (Grade 2) | PV
12
10039
CABLE STRAP | PV
13
10092
CLIP | PV
14
10336
CLIP, conduit, rosebud mount | PV
15
11650
GROMMET, side cover | PV
16
11663
RIVNUT, flathead, with ABS | PV
17
38904-08
RETAINER, cable, upper | PV
18
38939-09C
KIT-CABLE,CLUTCH CNTRL,BRD'D/XL | PV
19
47900-11BHP
FRAME main, w/ 48315-60 & 50972-75 | PV
20
48315-60
BEARING CUP | PV
21
48419-04
WEAR PAD, side cover - right (clear) | PV
48420-04
WEAR PAD, side cover - left (clear) | PV
22
49184-09A
ENGINE GUARD W/ 2708A, 6116 & 14148-86 | PV
23
49725-07A
SPRING jiffy stand | PV
24
50015-74A
LEG STOP | PV
25
50075-07A
LEG JIFFY STAND | PV
26
50096-09
BRACKET, jiffy stand leg | PV
27
50245-07
BUMPER, jiffy stand leg | PV
28
83459-09
FITTING lubrication | PV
29
66048-09A
SIDE COVER RIGHT (UNPAINTED) | PV
66250-09
SIDE COVER, left (unpainted) | PV
66612-09DAF
SIDE COVER, left (yellow/gray) **RESTRICTED SALE PART** | PV
66612-09DAH
SIDE COVER, left (orange/black) **RESTRICTED SALE PART** | PV
66612-09DAJ
SIDE COVER, left (silver/silver) **RESTRICTED SALE PART** | PV
66613-09DAF
SIDE COVER, right (yellow/gray) **RESTRICTED SALE PART** | PV
66613-09DAH
SIDE COVER, right (orange/black) **RESTRICTED SALE PART** | PV
66613-09DAJ
SIDE COVER, right (silver/silver) **RESTRICTED SALE PART** | PV
30
66055-09
WEAR PAD (clear) | PV
31
70980-09
TRAY, wire trough (main harness) | PV
32
70981-09
COVER, wire trough w/ 15368-01A, (main harness) | PV
33
90329-98
PLUG | PV
34
90520-07
HOLE PLUG, jiffy stand | PV
35
3594
SCREW, 1/4-20 X 5/8 knurled hd. (Grade 8) | PV
36
10177
CABLE STRAP, tree mount, jiffy stand (England, HDI) - INTERNATIONAL MODELS ONLY | PV
37
50126-08A
SENSOR, jiffy stand, w/ 72169-07, 72511-07BK & 73213-07 (England, HDI) - INTERNATIONAL MODELS ONLY | PV
38
72169-07
TERMINAL, pin, 16-20 AWG - INTERNATIONAL MODELS ONLY | PV
39
72511-07BK
HOUSING, pin, 3-way (black) - INTERNATIONAL MODELS ONLY | PV
40
73213-07
RETAINER, xmas tree clip - INTERNATIONAL MODELS ONLY | PV
