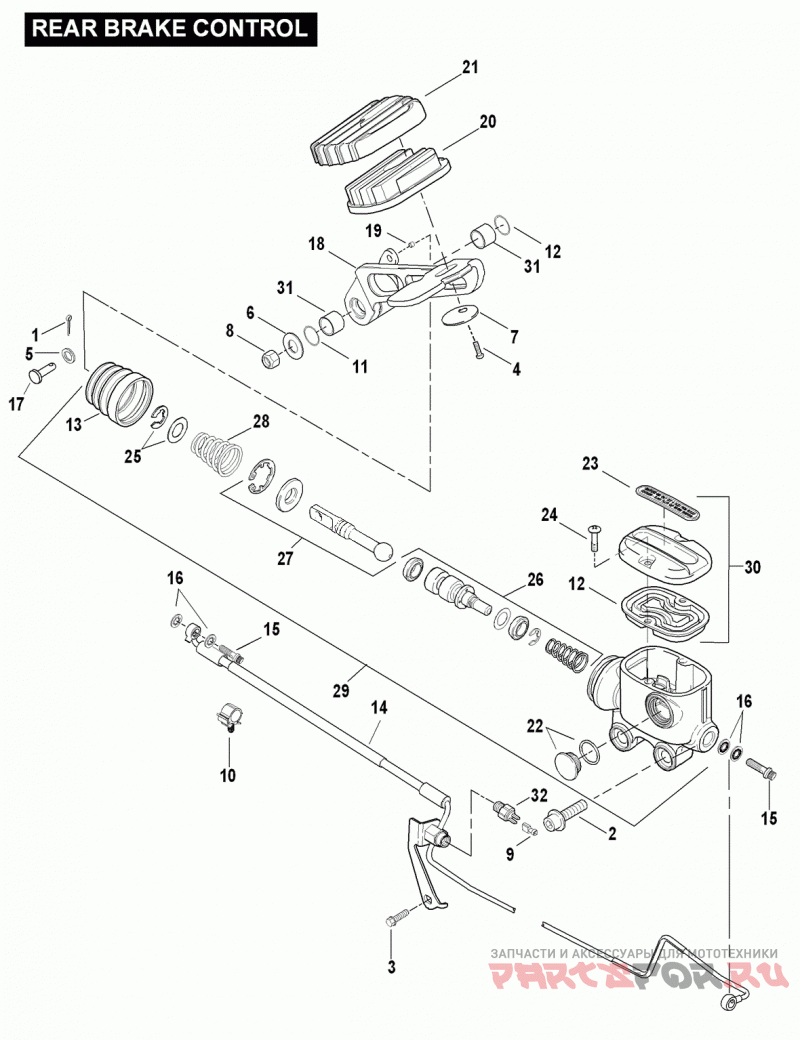

Тормозной цилиндр задний

Harley Davidson FLTR3 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
1
515
COTTER PIN | PV
2
2479
SCREW, 5/16-18 X 1-1/8 SEMS socket hd. | PV
3
3588
SCREW, 1/4-20 X 1/2 hex flange hd. | PV
4
4808
SCREW, 5/16-24 X 3/4 TORX button hd. w/Scotch grip | PV
5
6220W
WASHER, 1/4 X 7/16 X 1/32 | PV
6
6334
WASHER, 7/16 X 29/32 X 1/16 | PV
7
6421
WASHER, 21/64 X 1-1/2 X 1/16 offset 7/32 | PV
8
7825
LOCKNUT, 7/16-20 X 7/16 X 5/8 | PV
9
9907
WIRE TERMINAL | PV
10
10340A
CLIP brake hose | PV
11
11364
O-RING | PV
12
11902
GASKET, master cylinder reservoir cover | PV
13
12102
DUST BOOT | PV
14
40611-09
BRAKELINE, right-rear, master cylinder to ABS module | PV
15
41750-06B
BOLT, BANJO, brakeline | PV
16
41751-06A
GASKET | PV
17
42460-80B
CLEVIS PIN | PV
18
42638-08A
LEVER ASSEMBLY, foot-brake, w/ 515, 6334, 7825, 11364, 42644-00, 57217-02 & brake lever | PV
19
42644-00
BEARING, .25 x .177 | PV
20
42684-09
PAD, brake pedal | PV
21
42733-09
COVER, brake pedal | PV
22
42854-06
KIT, SIGHT GLASS | PV
23
42856-06
DECAL, reservoir cover | PV
24
42882-06
SCREW | PV
25
42889-06
PUSHROD SPRING E-CLIP KIT, master cylinder | PV
26
42932-08A
REBUILD KIT MASTER CYLINDER | PV
27
42933-08A
PUSHROD KIT, master cylinder | PV
28
42934-08
SPRING, pedal return | PV
29
46459-08B
MASTER CYLINDER ASSEMBLY W/ 12, 13, 20, 21, 22, 23, 24, 25, 26 & 28 (CHROME) | PV
30
46463-08
MASTER CYLINDER COVER KIT, rear, DOT4, (chrome) w/ 11902, 42856-06 & 42882-06 | PV
31
57217-02A
BUSHING BRAKE LEVER | PV
32
72023-51E
SWITCH KIT stop lamp | PV
