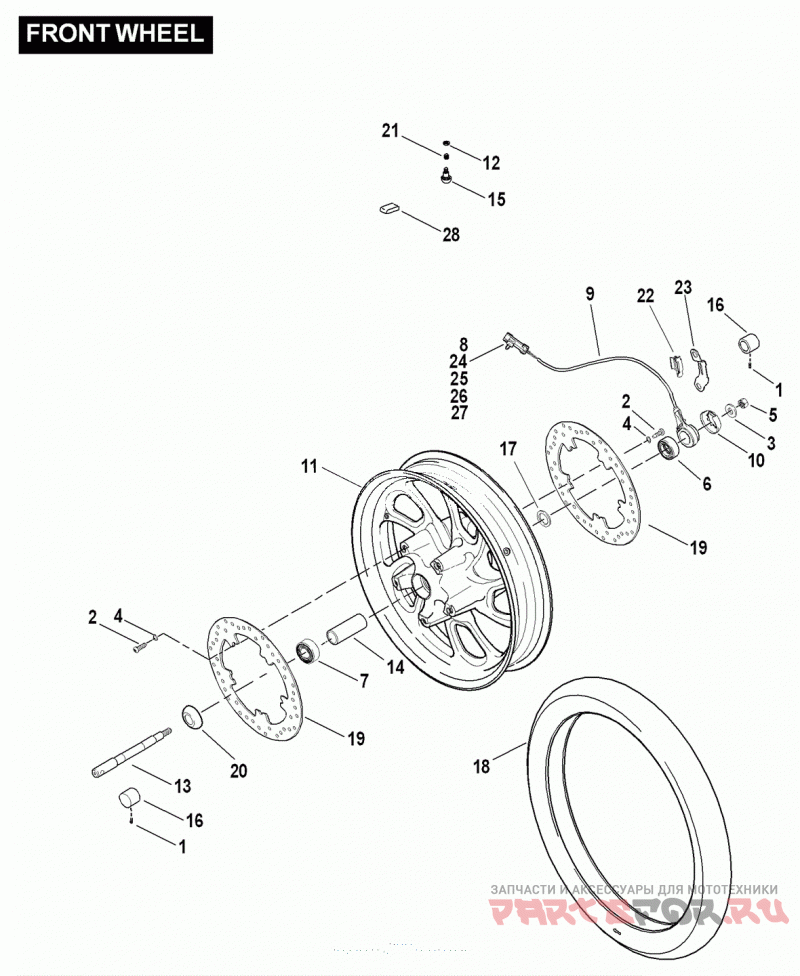

Переднее колесо

Harley Davidson FLTR3 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
1
3267
SCREW, set | PV
2
3762M
BOLT, M8 X 1.25 X 23 - 12.5 TORX hd., shoulder | PV
3
6655
WASHER, 5/8 X 1-1/2 X 7/64 | PV
4
6966M
WASHER, 12.6 X 19.0 X 0.63 spring | PV
5
7813A
NUT, 5/8-18 X 9/16 X 15/16 (Grade 2) | PV
6
9252
BALL BEARING, w/ encoder, ABS | PV
7
9276A
BALL BEARING | PV
8
10147
CLIP, connector | PV
9
40614-08
SENSOR, wheel speed, ABS, w/ 10147, 72607-08, 72609-08, 72608-08,& 72610-08 | PV
10
40786-08
COVER, wheel speed sensor (chrome) | PV
11
40818-08
WHEEL KIT, cast, w/o bearings & sleeve (chrome) | PV
12
41148-98
CAP, tire valve acorn, w/ bar & shield, set of 2 (chrome) | PV
13
41547-07A
AXLE | PV
14
41900-08
SLEEVE, bearing spacer | PV
15
43157-83A
STEM ASSEMBLY, tire valve | PV
16
43475-08
COVER KIT, axle nut left & right, w/ 3267 (chrome) | PV
17
43903-08
SPACER, front wheel bearing | PV
18
44026-09A
TIRE BLACK WALL, 18 IN. | PV
19
44553-06A
BRAKE DISC, front | PV
20
44583-08
SPACER | PV
21
54321-85
NUT, No. 8-32 X 1/2 X 1/8 (brass) | PV
22
70494-08
CLIP, wheel speed sensor, ABS | PV
23
70674-08
BRACKET, wheel speed sensor, ABS (chrome) | PV
24
72607-08
HOUSING, 2 way pin | PV
25
72608-08
TERMINAL PIN, 16-20 awg | PV
26
72609-08
LOCK, secondary, 2-way (black) | PV
27
72610-08
SEAL, 18-20 awg (white) | PV
28
95595-84B
WHEEL WEIGHT 5 grams (plain) | PV
