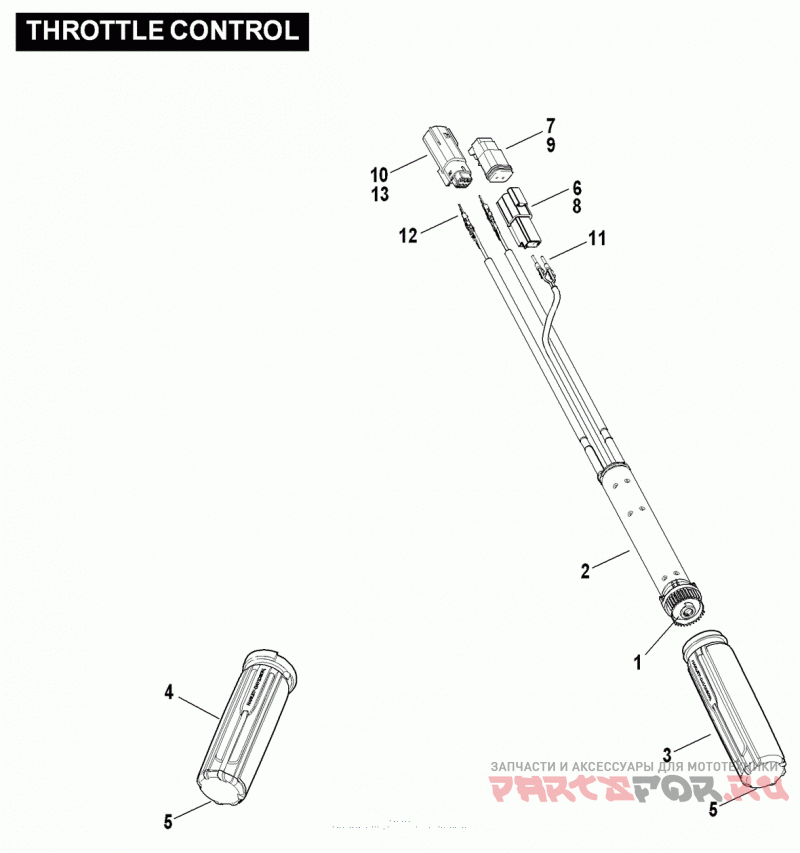

CABLE STRAP (not illustrated) | PV

SEAL CAP, throttle sensor | PV

SENSOR, twist grip, w/ 10006, 32306-08, 72102-94BK, 72112-94BK, 72142-94, 72152-94, 72188-07BK, 72194-94, 72195-94, 72549-07 & 73212-07 (72195-94 SEAL PIN not used w/ heated grips) | PV

HANDGRIP ASSEMBLY RIGHT, W/ 56162-09 | PV

HANDGRIP ASSEMBLY LEFT, W/ 56162-09 | PV

ENDCAP (chrome) | PV

PIN HOUSING, 2-way | PV

SOCKET HOUSING, 2-way | PV

LOCK, secondary, 2-way | PV

SEAL, front, 2-way | PV

PIN HOUSING, 6-way | PV

TERMINAL, pin, #20 AWG | PV

TERMINAL, pin, #22 AWG | PV

CONNECTOR ANCHOR, t-stud | PV
