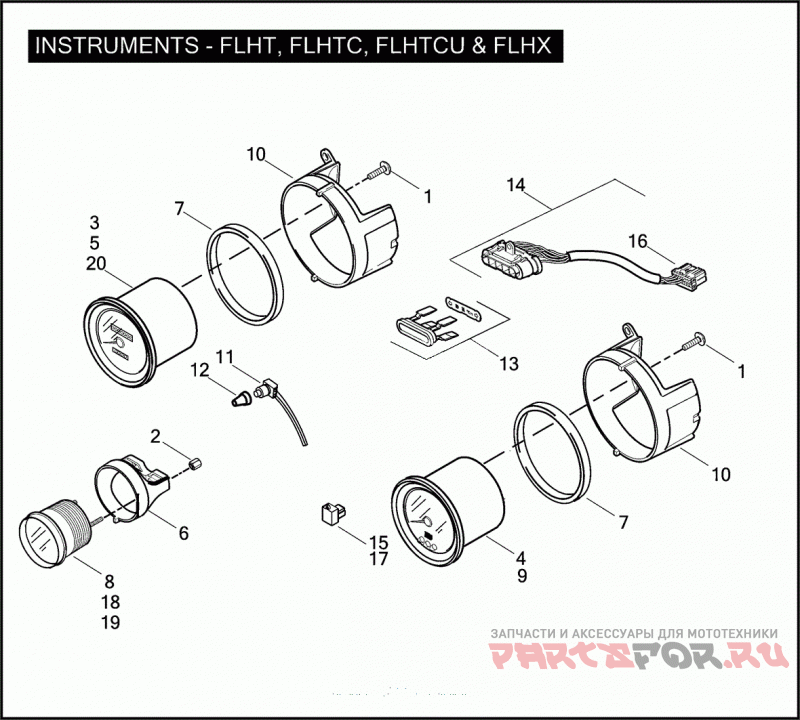

INSTRUMENTS - FLHT, FLHTC, FLHTCU & FLHX

Harley Davidson FLHX 1KB4 STREET GLIDE (2009)

Harley Davidson
#oem кодцена
1
2625
SCREW NO. 8-32 X 5/8 POZIDRIV PAN HD. (GRADE 2)
1
10065
CABLE STRAP (NOT ILLUSTRATED)
1
10073
CABLE STRAP (4) (NOT ILLUSTRATED)
2
67043-96
NUT (8-FC,FF,KB, 4-FV)
3
67261-08
SPEEDOMETER MPH (SILVER FACE)
6
67352-96A
BACKCLAMP 2-GAUGE (4, 2 - FV)
7
67356-00
GASKET SPEEDOMETER/TACHOMETER
8
67445-00
BULB W/ RUBBER BOOT
9
67459-04C
TACHOMETER
10
67689-04
BACKCLAMP 4 INCH GAUGE
11
67854-98
SWITCH ODOMETER RESET
12
67880-94
BOOT ODOMETER RESET SWITCH
13
68382-07B
BEZEL ASSEMBLY INDICATOR LAMPS
14
68789-96B
INDICATOR LAMP ASSEMBLY W/ 73160-96BK (REPLACES 68789-96)
15
73103-96BK
PIN HOUSING 3-WAY
16
73160-96BK
SOCKET HOUSING 10-PLACE
17
74419-96A
SENSOR AIR TEMPERATURE, W/ 73103-96BK
18
75165-01A
OIL PRESSURE GAUGE COLORED FACE W/ 67445-00 & 75044-96
18
75166-01A
AIR TEMPERATURE GAUGE COLORED FACE W/ 67445-00 & 75044-96
18
75167-01A
VOLTMETER COLORED FACE, W/ 67445-00 & 75044-96
18
75168-08
FUEL GAUGE COLORED FACE, W/ 67445-00 & 75044-96
19
75044-96
Патрон
20
67281-08
SPEEDOMETER KPH (AUSTRALIA, CANADA, HDI, JAPAN)
20
67587-08
SPEEDOMETER DUAL-MPH/KPH (ENGLAND)
