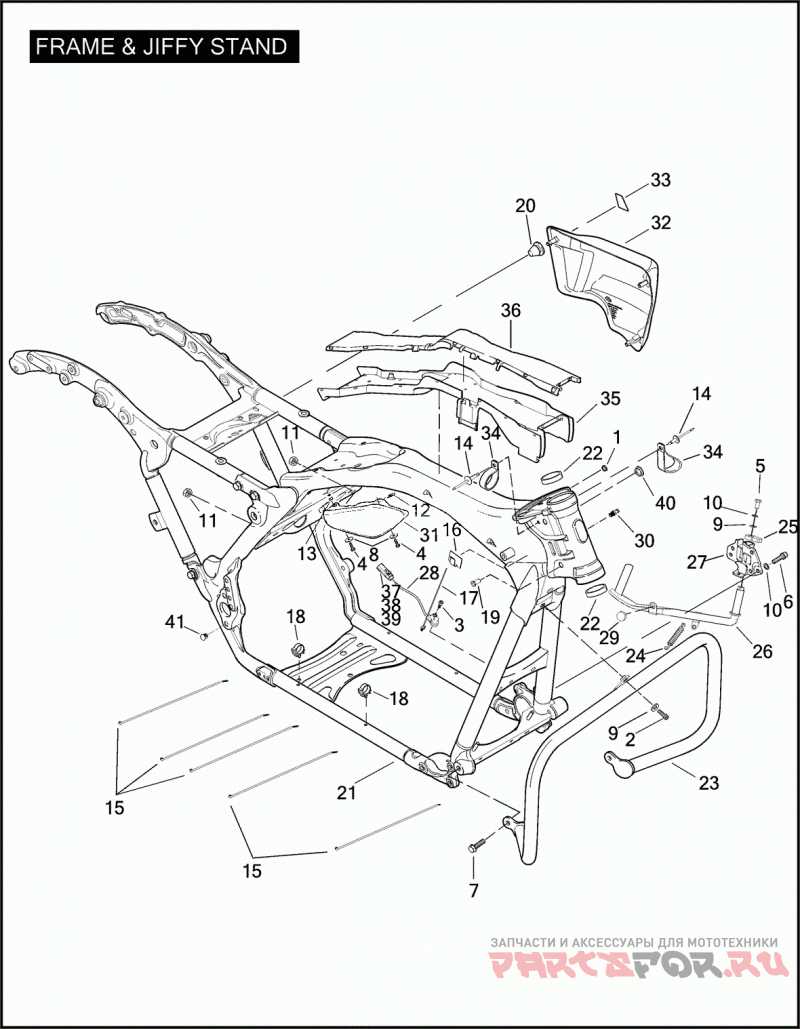

FRAME & JIFFY STAND

Harley Davidson FLHTP 1FMM ELECTRA GLIDE STANDARD POLICE (2009)

Harley Davidson
#oem кодцена
1
755
HOLE PLUG
2
2708A
SCREW 5/16-18 X 1 SOCKET HD.
3
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
4
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
5
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
6
4688
SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
7
4924
SCREW 3/8-16 X 7/8 TORX BUTTON HD. (ZINC PLATE) (GRADE 5)
8
6036
WASHER 17/64 X 1 X 1/16
9
6702
WASHER 5/16 X 11/16 X 1/16
10
7041
LOCKWASHER 5/16
11
7495
NUT M6 FLANGE
12
8108
SPEEDNUT 1/4-20
13
8194
NUT SPECIAL
14
8483A
RIVET BLIND
15
10039
CABLE STRAP
16
10102
Зажим
17
10177
CABLE STRAP TREE MOUNT, JIFFY STAND
18
10336
CLIP CONDUIT, ROSEBUD MOUNT
19
11663
RIVNUT FLATHEAD, WITH ABS
20
11650
GROMMET SIDE COVER
21
47900-11BHP
FRAME main, w/ 48315-60 & 50972-75
22
48315-60
BEARING CUP
23
49184-09A
ENGINE GUARD W/ 2708A, 6116 & 14148-86
24
49725-07A
SPRING jiffy stand
25
50015-74A
LEG STOP
26
50075-07A
LEG JIFFY STAND
27
50096-09
BRACKET JIFFY STAND LEG
28
50126-08A
SENSOR JIFFY STAND, W/ 72169-07, 72511-07BK & 73213-07
29
50245-07
BUMPER JIFFY STAND LEG
30
83459-09
FITTING lubrication
31
58167-09A
DEFLECTOR AIR (RIGHT)
31
58169-09
DEFLECTOR AIR, LEFT
32
66048-09A
SIDE COVER RIGHT (UNPAINTED)
32
66250-09
SIDE COVER LEFT (UNPAINTED)
33
66055-09
WEAR PAD SIDE COVER (CLEAR)
34
69318-02
Зажим
35
70980-09
TRAY WIRE TROUGH (MAIN HARNESS)
36
70981-09
COVER WIRE TROUGH (MAIN HARNESS)
37
72169-07
TERMINAL PIN, 16-20 AWG
38
72511-07BK
HOUSING PIN, 3-WAY (BLACK)
39
73213-07
RETAINER XMAS TREE CLIP
40
90469-94
PLUG (4 - NON-ABS, 3 - ABS)
41
90329-98
PLUG (BLACK)
