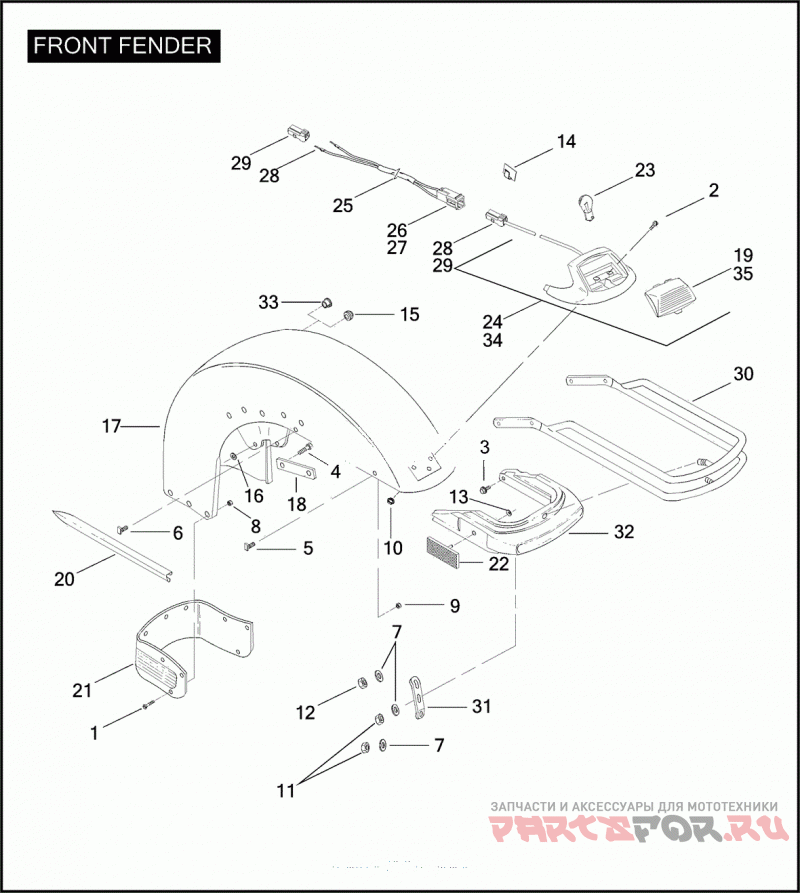

Переднее крыло

Harley Davidson FLHTP 1FMM ELECTRA GLIDE STANDARD POLICE (2009)

Harley Davidson
#oem кодцена
1
2531
SCREW NO. 4-40 X 5/16 POZIDRIV PAN HD. (GRADE 2)
2
2604
SCREW NO. 10-32 X 1/2 POZIDRIV PAN HD. (GRADE 2)
3
3602A
SCREW NO. 10-32 X 1/2 SELF-TAPPING
4
3462
BOLT 5/16-18 X 1-1/4 HEX HD. (GRADE 8)
5
3560WA
BOLT NO. 10-24 X 3/8
6
3561WC
BOLT NO. 10-24 X 3/8
7
6703
WASHER 1/4 X 5/8 X 1/16
8
7600
NUT NO. 4-40 KEPS
9
7624
LOCKNUT NO. 10-24 X 1/4 X 3/8
10
7629
NUT NO. 10-32 X 3/8 KEPS
11
7682
LOCKNUT 1/4-28 X 3/16 X 7/16
12
7683
LOCKNUT 1/4-28 X 5/16 X 7/16
13
8126A
SPEED NUT REFLECTOR
14
10102
Зажим
15
11437
GROMMET WIRING HARNESS
16
45279-00
Шайба
17
59093-00B
FENDER (PRIME)
18
59166-80
PLATE LOCK
19
59180-80
LENS FENDER LAMP (AMBER)
20
59211-74A
SIDE TRIM
21
59231-86
TRIM SKIRT LOWER
22
59261-91
REFLECTOR (AMBER)
23
68193-95
BULB FENDER TIP LAMP
24
68706-00
FENDER LIGHT ASSEMBLY W/ 59180-80, 68193-95, 73152-96BK, & 73191-96
25
70196-00
WIRE HARNESS ASSEMBLY jumper, w/ 73102-96BK, 73190-96 & 73191-96
26
73102-96BK
PIN HOUSING 2-WAY
27
73190-96
TERMINAL PIN, 16-20 AWG
28
73191-96
TERMINAL SOCKET, 16-20 AWG
29
73152-96BK
SOCKET HOUSING 2-WAY
30
91085-83D
BUMPER ASSEMBLY W/ 3, 4, 7, 11, 12, 13, 18, 22, 31 & 32
31
91090-77A
BRACKET BUMPER
32
91107-77C
CUSHION BUMPER
33
755
HOLE PLUG (HDI)
34
59116-96
FENDER TIP ASSEMBLY W/ 59201-96 (HDI)
35
59201-96
LENS FENDER TIP (HDI)
