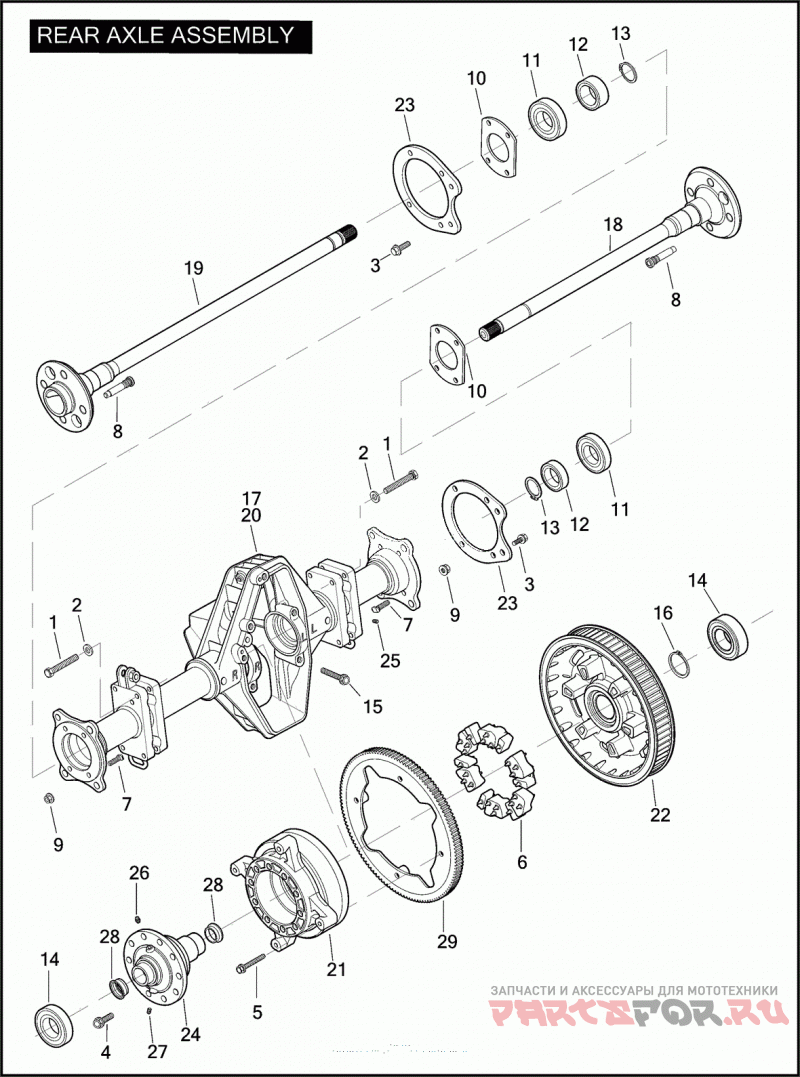

REAR AXLE ASSEMBLY

Harley Davidson FLHTCUTG 1MAM TRI GLIDE ULTRA CLASSIC (2009)

Harley Davidson
#oem кодцена
1
4795
SCREW HEX / LOCK
2
6701
WASHER 3/8 X 13/16 X 1/16
3
8308
SCREW HEX, SEMS / LOCK
4
8313
SCREW HEX, SEMS / LOCK
5
8319
SCREW HEX FLANGE / LOCK
6
40278-08
ISOLATER RUBBER
7
83310-09
T-BOLT BEARING RETAINER
8
83311-09
STUD WHEEL
9
83312-09
NUT BEARING RETAINER
10
83313-09
RETAINER BEARING
11
83314-09
BEARING WHEEL
12
83315-09
RETAINER AXLE SHAFT
13
83316-09
RETAINER SNAP RING
14
83317-09
BEARING CASE
15
83323-09
BOLT BEARING CAP
16
83331-09A
SNAP RING SPROCKET BEARING
17
83371-09C
AXLE ASSEMBLY REAR, WITH REVERSE, WITH 3, 4, 5, 6, 14, 15, 16, 18, 19, 20, 21, 22, 23, 24, 25 AND 28
18
83402-09A
SHAFT ASSEMBLY AXLE, WITH 8, 10, 11, 12 AND 13 (LEFT)
19
83403-09A
SHAFT ASSEMBLY AXLE, WITH 8, 10, 11, 12 AND 13 (RIGHT)
20
83408-09A
HOUSING AXLE, REAR
21
83850-09
KIT, COMPENSATOR BOWL W/ 8313
22
83424-09
SPROCKET ASSEMBLY 70T
23
83429-09
BRACKET CALIPER REACTION
24
83450-09
DIFFERENTIAL ASSEMBLY REAR, W/ 26, 27 & 28
25
83456-09
DOWEL PIN (IF EQUIPPED)
26
83459-09
FITTING GREASE
27
83460-09
PLUG GREASE
28
83848-09
BEARING SEAL
29
83849-09A
RING GEAR REVERSE
