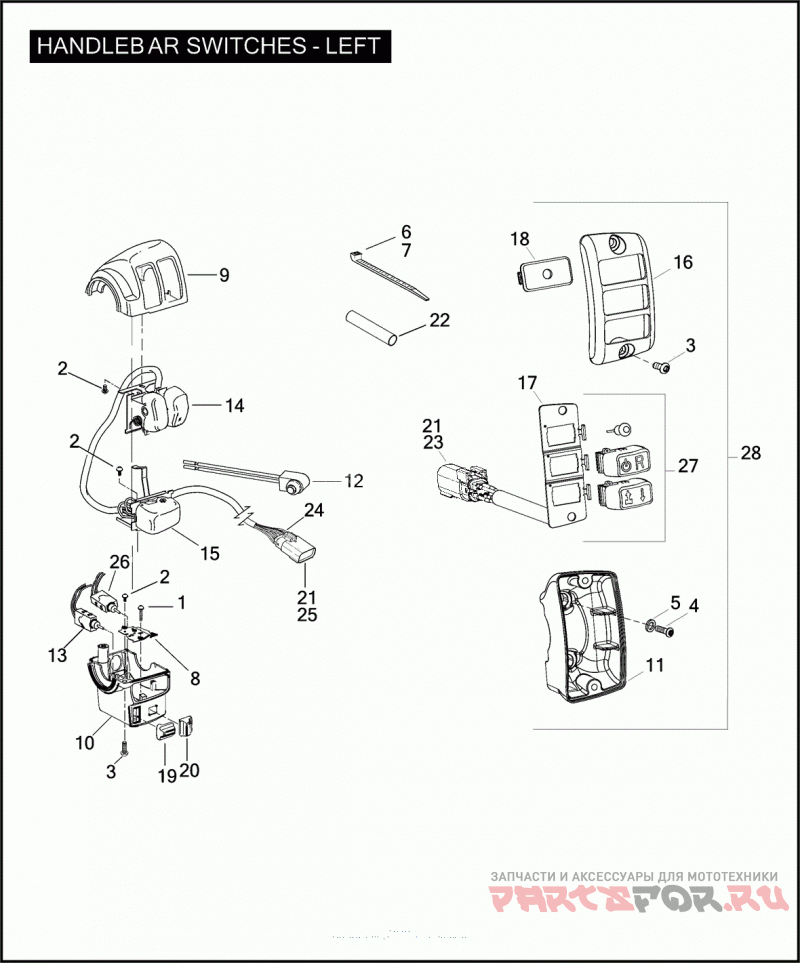

HANDLEBAR SWITCHES - LEFT

Harley Davidson FLHTCUTG 1MAM TRI GLIDE ULTRA CLASSIC (2009)

Harley Davidson
#oem кодцена
1
2559
Деталь SCREW NO. 6-32 X 3/4 PHILLIPS PAN HD., W/LOCKWASHER
2
2955
Деталь SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
3
3658
Деталь SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)
4
4015
Деталь SCREW 1/4-20 X 7/8 SOCKET BUTTON HD. (GRADE 8)
5
6099
Деталь WASHER 1/4 X 7/16 X 1/16
6
10006
Деталь CABLE STRAP
7
10181
Деталь CABLE STRAP
8
70373-96
Деталь BRACKET SWITCH, LOWER LEFT
9
71567-96
Деталь HOUSING UPPER LEFT
10
71594-98A
Деталь HOUSING LOWER LEFT, W/ CRUISE CONTROL
11
71603-02B
Деталь HOUSING LEFT HAND, REVERSE SWITCH (BLACK)
12
71699-07
Деталь SWITCH CLUTCH, W/ 10181 & 72266-94
13
71642-08
Деталь SWITCH ASSEMBLY AUDIO CONTROL +/-, W/ 10181 & 72266-94
14
71682-06A
Деталь SWITCH ASSEMBLY, headlamp high/low & horn, w/ 10181 & 72266-94
15
71685-06A
Деталь SWITCH ASSEMBLY, left turn signal, w/ 10181 & 72266-94
16
71711-02
Деталь HOUSING RIGHT HAND, TOP (BLACK)
17
71714-02
Деталь BRACKET SWITCH SUPPORT
18
71817-07
Деталь PLUG W/ HOLE, SWITCH
19
71820-98
Деталь KNOB AUDIO CONTROL +/-
20
71824-98
Деталь KNOB SQ+/-, PTT
21
72169-07
Деталь TERMINAL PIN, 16-20 AWG
22
72266-94
Деталь HEAT SHRINK TUBE DUAL WALL, .3 IN. X 2 IN.
23
72415-07GY
Деталь HOUSING 4-WAY PIN (GRAY)
24
72473-07
Деталь SEAL PIN
25
72492-07GY
Деталь HOUSING PIN, 16-WAY (GRAY)
26
71735-08
Деталь SWITCH KIT PTT/SQ -/+, w/ 10181 & 72266-94
27
83338-09A
Деталь KIT - HAND SWITCH ASSEMBLY REVERSE, W/ 10006, 71714-02, 71817-07 & 72169-07
28
83883-09A
Деталь HAND SWITCH ASSEMBLY REVERSE W/ 6, 11, 17, 18, 19, 22, 24 & 27
