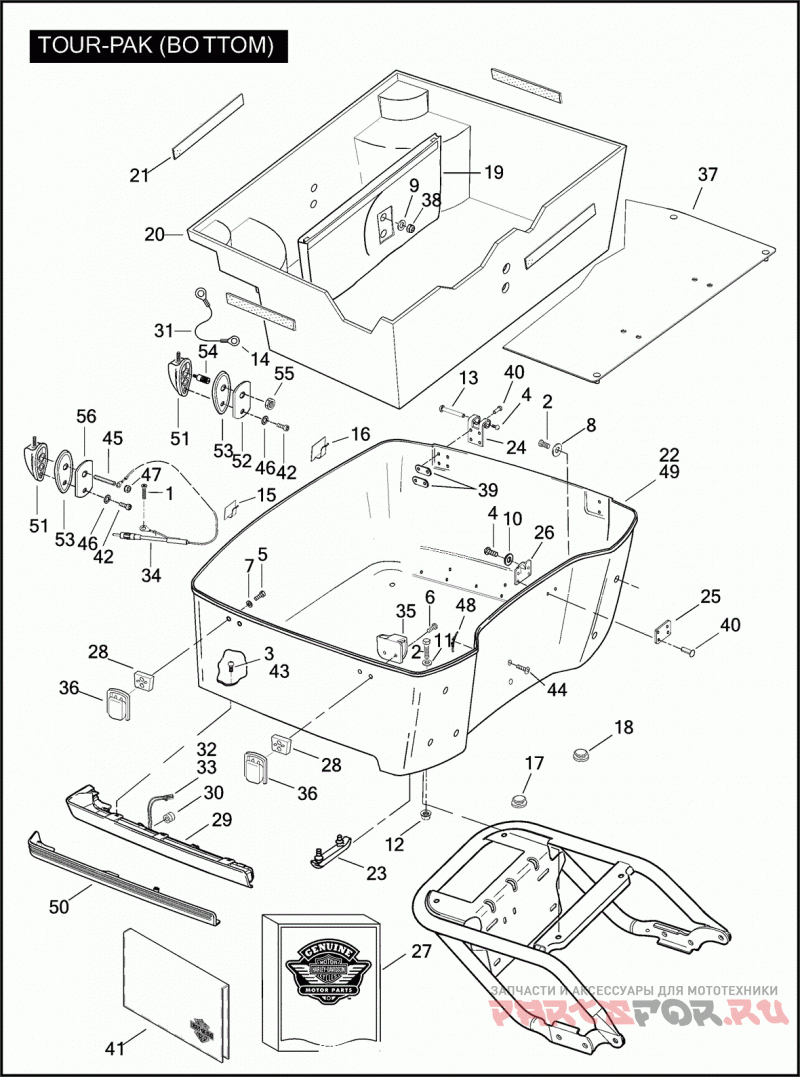

TOUR-PAK (BOTTOM)

Harley Davidson FLHTCUSE4 1PR8 CVO ULTRA CLASSIC (2009)

Harley Davidson
#oem кодцена
1
932
Деталь SCREW 1/4-20 X 1/2 TRUSS HD. (CHROME)
2
2551W
Деталь BOLT 1/4-20 X 1 HEX HD. (GRADE 5)
3
2968
Деталь SCREW NO. 8-32 X 3/4 TORX PAN HD.
4
3595
Деталь SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
5
3597
Деталь SCREW NO. 6-32 X 9/16 TORX PAN HD., THREAD-CUTTING
6
3598
Деталь SCREW NO. 6-32 X 3/4 TORX PAN HD., THREAD-CUTTING
7
6029
Деталь WASHER 5/32 X 3/8 X 1/32
8
6036
Деталь WASHER 17/64 X 1 X 1/16
9
6716
Деталь WASHER NO. 10 X 1/2 X 3/64
10
6970
Деталь WASHER 1/4 X 1/2 X 1/16 SPRING
11
7036
Деталь WASHER 1/4 X 31/64 X 1/16
12
7716
Деталь LOCKNUT 1/4-20 X 7/16 FLANGE
13
8500A
Деталь HINGE PIN KIT W/ 3595
14
9809
Деталь TRIM RING,PRE-INSULT
15
10102
Деталь CLIP ADHESIVE BACKED
16
10103
Деталь CLIP ADHESIVE BACKED
17
11486
Уплотнитель резиновый
18
11507
Деталь GROMMET SPLIT
19
53165-89A
Деталь POUCH TOUR-PAK
20
53301-06
Деталь LINER KIT MOLDED, W/ 53314-06
21
53314-06
Деталь KIT, VELCRO LINER
22
53221-09CZA
Деталь BOTTOM ASSEMBLY W/ LIGHTS, LATCHES & HINGES (STARDUST SILVER/TWILIGHT BLUE) (DOMESTIC)
22
53221-09CZZ
Деталь BOTTOM ASSEMBLY W/ LIGHTS, LATCHES & HINGES (RUBY RED/TYPHOON MAROON) (DOMESTIC)
22
53221-09DAC
Деталь BOTTOM ASSEMBLY W/ LIGHTS, LATCHES & HINGES (AUTUMN HAZE/HIGH OCTANE ORANGE) (DOMESTIC)
22
53128-09
Деталь BOTTOM W/O LIGHTS, LATCHES & HINGES (PRIME) (DOMESTIC)
23
53429-93
Амортизатор ударов
24
53447-87
Деталь HINGE LOWER
25
53478-80
Деталь BACKING PLATE BRACE
26
53563-82
Деталь BRACKET CABLE MOUNTING
27
53598-88A
Деталь LINER REMOVABLE
28
53615-85A
Проставка
29
53788-06
Деталь LIGHT RIGHT-BOTTOM, TOUR-PAK, SIDEMARKER, W/ 73152-96BK & 73191-96 (DOMESTIC)
29
53789-06
Деталь LIGHT LEFT-BOTTOM, TOUR-PAK, SIDEMARKER, W/ 73152-96BK & 73191-96 (DOMESTIC)
30
57978-00
Деталь GROMMET (DOMESTIC)
31
70465-86A
Деталь GROUND CABLE W/ 9864
32
73152-96BK
Деталь SOCKET HOUSING 2-WAY (BLACK) (DOMESTIC)
33
73191-96
Деталь SOCKET TERMINAL (DOMESTIC)
34
76294-09
Деталь CABLE EXTENSION CB ANTENNA (DOMESTIC & HDI)
35
79182-08A
Деталь CATCH lower
36
90649-07
Деталь BODY LATCH
37
90755-09
Деталь PLATE TOUR-PAK REINFORCING
38
90844-80
Деталь ACORN NUT NO. 10 X 3/8 FLANGE (GRADE 2)
39
90964-63
Деталь BACKING PLATE
40
90965-63
заклёпка
41
99461-89
Деталь COVER OWNER MANUAL
42
2576
Деталь SCREW NO. 10-32 X 3/4 PAN HD. (GRADE 2)
43
2968
Деталь SCREW NO. 8-32 X 3/4 TORX PAN HD.
44
3154
Деталь SCREW 10-24 X 5/8 TORX PAN HD
45
3227
Деталь SCREW M5 (.08 PITCH) X 35MM SET
46
7118
Деталь LOCKWASHER 3/16 INTERNAL TOOTH
47
7492
Деталь NUT W/ LOCKWASHER
48
7961
Деталь NUT SPEED
49
53228-09CZA
Деталь BOTTOM ASSEMBLY W/ TRIM, LATCHES & HINGES (STARDUST SILVER/TWILIGHT BLUE) (HDI, JAPAN)
49
53228-09CZZ
Деталь BOTTOM ASSEMBLY W/ TRIM, LATCHES & HINGES (RUBY RED/TYPHOON MAROON) (HDI, JAPAN)
49
53228-09DAC
Деталь BOTTOM ASSEMBLY W/ TRIM, LATCHES & HINGES (AUTUMN HAZE/HIGH OCTANE ORANGE, JAPAN)
49
53145-09
Деталь BOTTOM W/O TRIM, LATCHES & HINGES (PRIME) (HDI, JAPAN)
50
53734-06
Деталь TRIM LEFT-BOTTOM, TOUR-PAK (CHROME) (HDI, JAPAN)
50
53735-06
Деталь TRIM RIGHT-BOTTOM, TOUR-PAK (CHROME) (HDI, JAPAN)
51
76252-86
Деталь BASE ANTENNA, W/ 76258-86 & 76259-86
52
76253-86
Деталь REINFORCEMENT PLATE ANTENNA, LEFT HAND
53
76255-86
Деталь GASKET BASE
54
76258-86
Деталь PLUG ASSEMBLY
55
76259-86
Деталь NUT HEX JAM
56
76322-97
Деталь REINFORCEMENT PLATE ANTENNA, RIGHT HAND
