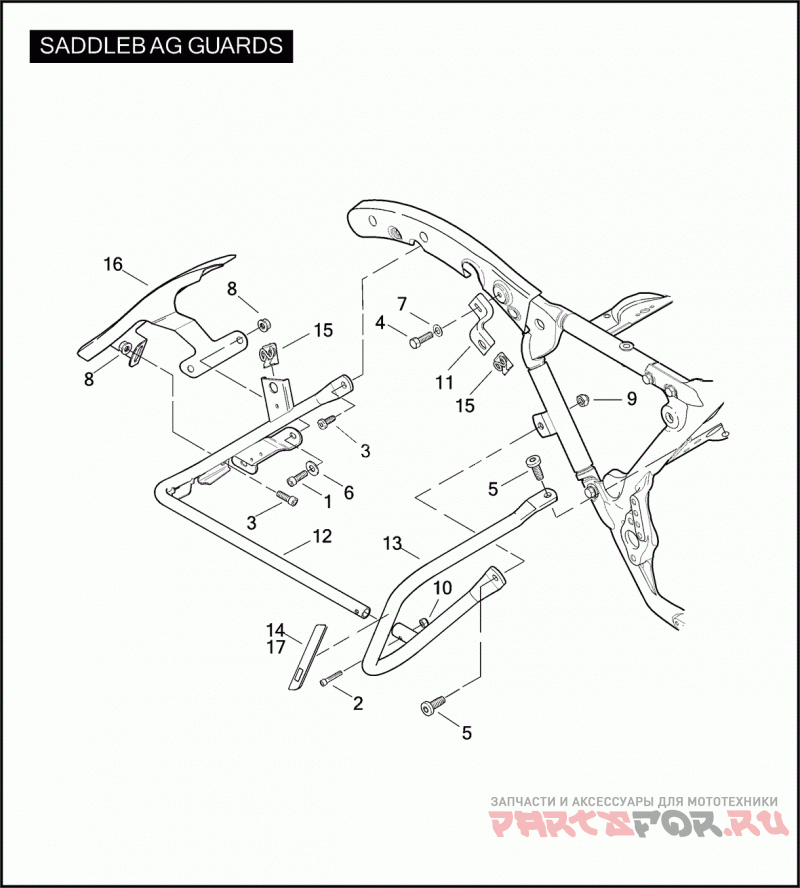

SADDLEBAG GUARDS

Harley Davidson FLHTCUSE4 1PR8 CVO ULTRA CLASSIC (2009)

Harley Davidson
#oem кодцена
1
3275
SCREW 5/16-18 X 3/4 SOCKET HD. (GRADE 8)
2
3601
SCREW 1/4-20 X 1-1/4 KNURLED HD. (GRADE 8)
3
3684
SCREW 5/16-18 X 1 TORX PAN HD.
4
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
5
4924
SCREW 3/8-16 X 7/8 TORX BUTTON HD. (ZINC PLATE) (GRADE 5)
6
6702
WASHER 5/16 X 11/16 X 1/16
7
6703
WASHER 1/4 X 5/8 X 1/16
8
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
9
7667
NUT 3/8-16 X 9/32 X 9/16 NYLON INSERT
10
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
10
14148-86
ENGINE GUARD LABEL (NOT ILLUSTRATED)
11
47449-09
BRACKET SADDLEBAG MOUNTING, FRONT (FLAT BLACK)
12
49194-09A
SUPPORT saddlebag, left
12
90781-09A
SUPPORT saddlebag, right
13
49187-09
GUARD left
13
49176-09
GUARD right
14
59370-98
REFLECTOR RIGHT (RED)
14
59371-98
REFLECTOR LEFT (RED)
15
70909-95
RECEPTACLE
16
91638-09BYW
FILLER STRIP SADDLEBAG TRIM, LEFT (AUTUMN HAZE) (NOT SHOWN)
16
91638-09CZB
FILLER STRIP SADDLEBAG TRIM, LEFT (STARDUST SILVER) (NOT SHOWN)
16
91638-09DAA
FILLER STRIP SADDLEBAG TRIM, LEFT (RUBY RED) (NOT SHOWN)
16
91639-09BYW
FILLER STRIP SADDLEBAG TRIM RIGHT (AUTUMN HAZE)
16
91639-09CZB
FILLER STRIP SADDLEBAG TRIM RIGHT (STARDUST SILVER)
16
91639-09DAA
FILLER STRIP SADDLEBAG TRIM RIGHT (RUBY RED)
17
73222-09
REFLECTOR RIGHT (AMBER)
17
73223-09
REFLECTOR LEFT (AMBER)
