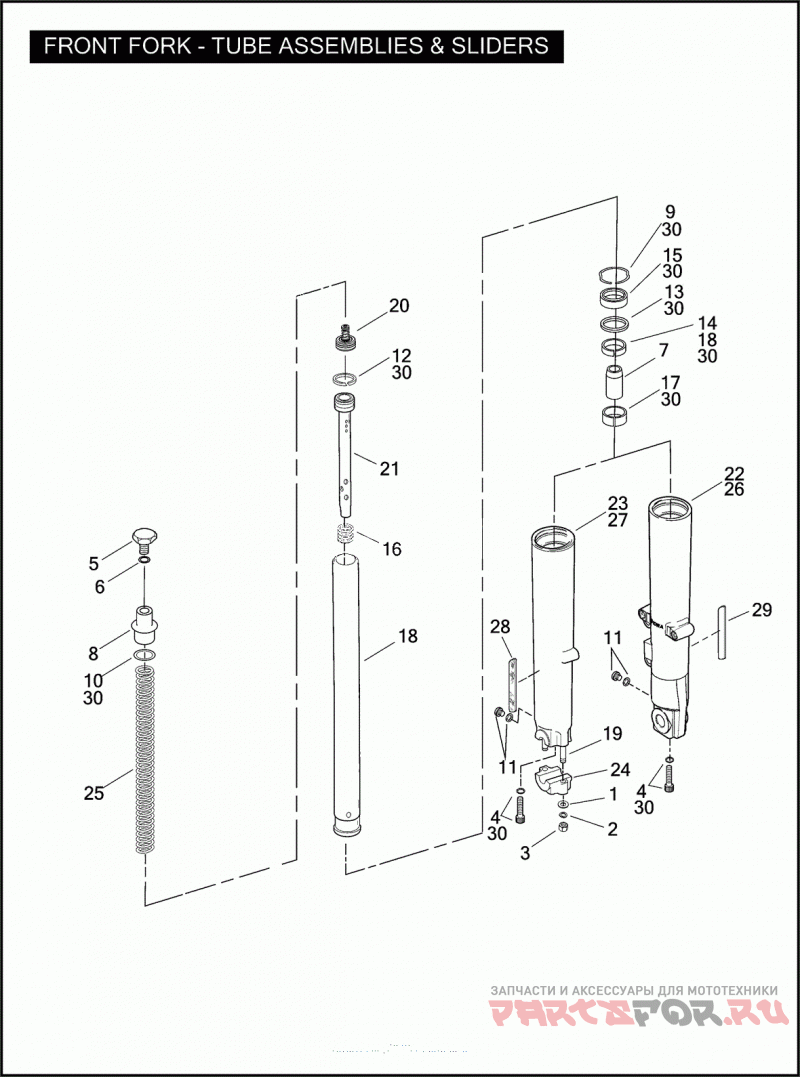

FRONT FORK - TUBE ASSEMBLIES & SLIDERS

Harley Davidson FLHTCUSE4 1PR8 CVO ULTRA CLASSIC (2009)

Harley Davidson
#oem кодцена
1
6702
WASHER 5/16 X 11/16 X 1/16
2
7041
LOCKWASHER 5/16
3
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
4
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
5
45419-80
BOLT FORK
6
45733-48
Сальник
7
45803-97
STOP OIL LOCK PIECE
8
45838-77
BOLT FRONT FORK
9
45842-77A
RETAINING RING OIL SEAL
10
45845-77
Уплотнительное кольцо
11
45858-77
SCREW DRAIN, W/ WASHER
12
45859-77A
PISTON RING DAMPER TUBE
13
45865-84
SPACER SEAL
14
45866-84
BUSHING SLIDER
15
45875-84A
Сальник
16
45933-86
REBOUND SPRING
17
45940-84
Втулка
18
45972-09
STANCHION TUBE ASSEMBLY W/ 45866-84
19
45998-73
STUD (RIGHT-HAND)
20
46209-09
DAMPING VALVE
21
46422-09
DAMPER TUBE W/ 45859-77A
22
45500169
SLIDER,LH/FRT FORK,CHRM
24
46658-07
HOLDER AXLE (RIGHT-HAND) (CHROME)
25
48787-09
Пружина
26
48789-09
FORK ASSEMBLY COMPLETE (LEFT-HAND) (CHROME)
27
48790-09
FORK ASSEMBLY COMPLETE (RIGHT-HAND) (CHROME)
28
59481-00
REFLECTOR (RIGHT-HAND) (AMBER)
29
59482-00
REFLECTOR (LEFT-HAND) (AMBER)
30
49377-09A
FORK REBUILD KIT w/ 8, 25, 26, 29, 30, 31, 33 & 35
