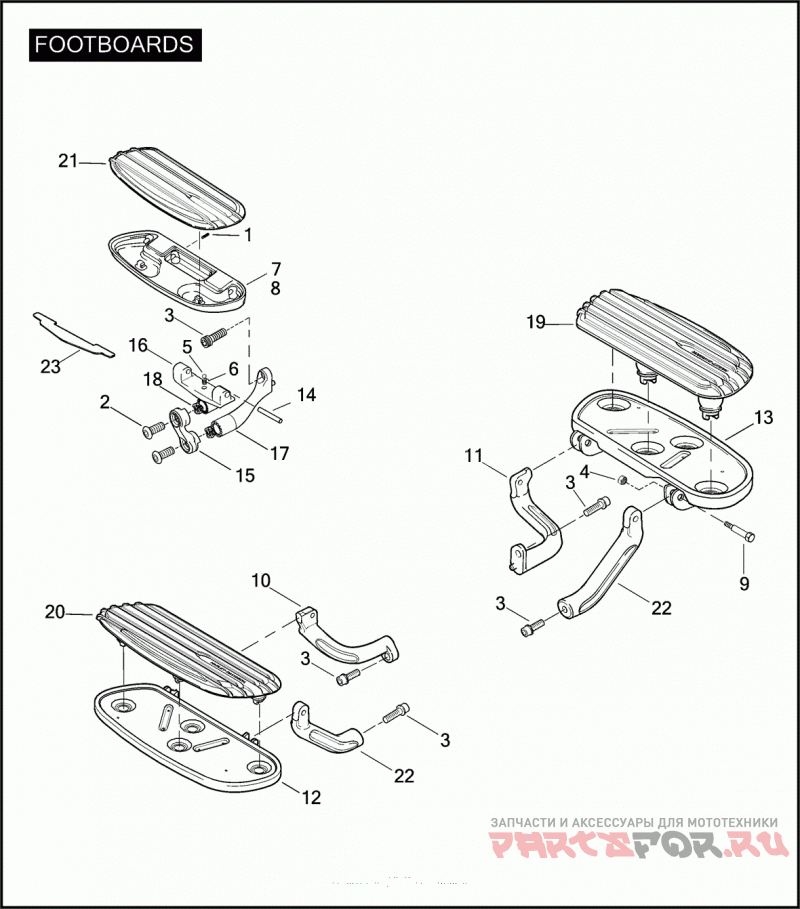

FOOTBOARDS

Harley Davidson FLHTCUSE4 1PR8 CVO ULTRA CLASSIC (2009)

Harley Davidson
#oem кодцена
1
3341
SET SCREW NO. 10-24 X 1/2 HEX HEAD (STAINLESS)
2
4631
Винт
3
4688
SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
4
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
5
8861
Шарик
6
51501-07
Пружина
7
50700-04
FOOTBOARD LEFT-HAND, PASSENGER
8
50701-04
FOOTBOARD RIGHT-HAND, PASSENGER
9
50635-82A
BOLT FOOTBOARD HINGE
10
50652-09
BRACKET SUPPORT FOOTBOARD, REAR RIGHT
11
50673-09
BRACKET SUPPORT FOOTBOARD, REAR LEFT
12
50683-04
BOTTOM ASSEMBLY RIGHT, W/ HINGE
13
50688-04
BOTTOM ASSEMBLY LEFT, W/ HINGE
14
50938-04
PIVOT PIN KIT W/ 4 PINS
15
50998-07
ARM ROTATING, RIGHT
15
51006-07
ARM ROTATING, LEFT
16
51007-07
SUPPORT FOOTBOARD
17
51008-07
ARM MAIN MOUNTING ASSEMBLY
18
51023-07
WAVE SPRING
19
51498-09A
INSERT ASSEMBLY, left, rider
20
51499-09A
INSERT ASSEMBLY, right, rider
21
51502-09
FOOTBOARD INSERT PASSENGER, LEFT (NOT ILLUSTRATED)
21
51510-09
FOOTBOARD INSERT PASSENGER, RIGHT
22
51697-09
MOUNTING BRACKET FRONT FOOTBOARD
23
44430-04
PAD RUBBER (HDI)
