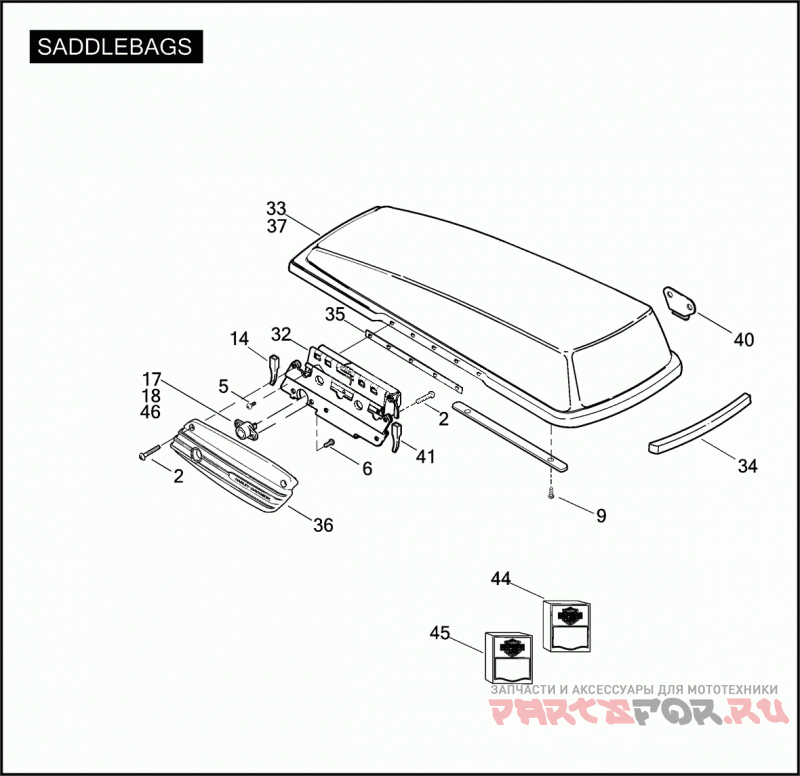

Кофры боковые

Harley Davidson FLHTCUSE4 1PR8 CVO ULTRA CLASSIC (2009)

Harley Davidson
#oem кодцена
1
2478
SCREW NO. 10-24 X 1/2 TORX BUTTON HD.
2
2524B
SCREW NO. 8-32 X 5/16 TORX BUTTON HD., SELF-TAPPING
3
3592A
SCREW NO. 8-32 X 1/2 TORX TRUSS HD. W/ DOGPOINT LEAD (STAINLESS)
4
3593
SCREW NO. 8-32 X 5/16 TORX TRUSS HD.
5
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
6
68042-99
SCREW NO. 8-32 X 3/8 TORX HD.
7
4616
Винт
8
4630
Винт
9
5233
SCREW #10-16 X 1/2 HI-LO, TORX HD T-25
10
6229W
WASHER 5/16 X 1-1/16 X 3/64
11
7624
LOCKNUT NO. 10-24 X 1/4 X 3/8
11
10102
CLIP ADHESIVE BACKED (NOT ILLUSTRATED)
12
10302
E-CLIP
13
11468
Уплотнитель резиновый
14
53482-93
RUB BAR LEFT, REAR (PLASTIC)
14
53483-93
RUB BAR RIGHT, REAR (PLASTIC)
15
53567-93
CHECK STRAP
16
53597-07
ACTUATOR POWER LOCK
17
53986-07
LOCK (SPECIFY KEY CODE)
18
54033-09
LOCKSET COMPLETE W/ KEY & FOB ASSEMBLY, IGNITION KNOB, TOUR-PAK & SADDLEBAG LOCK (DOMESTIC)
19
74112-98BK
HOUSING 2-WAY SOCKET
20
74152-98
SECONDARY LOCK 2-WAY SOCKET
21
74191-98
SOCKET TERMINAL
22
79113-07
CABLE ASSEMBLY
23
79114-07
Уплотнитель резиновый
24
79145-07
BASE POWER LOCK SYSTEM, LEFT
24
79158-07
BASE POWER LOCK SYSTEM, RIGHT
25
79146-07
LID POWER LOCK SYSTEM, LEFT
25
79159-07
LID POWER LOCK SYSTEM, RIGHT
26
79156-07
POWER LOCK ASSEMBLY RIGHT
26
79163-07
POWER LOCK ASSEMBLY LEFT
27
79157-07
BOX & ACTUATOR ASSEMBLY RIGHT
27
79164-07
BOX & ACTUATOR ASSEMBLY LEFT
28
79165-07
ACTUATOR ASSEMBLY CABLE
29
88275-09CZA
BOTTOM ASSEMBLY SADDLEBAG, LEFT (STARDUST SILVER/TWILIGHT BLUE)
29
88275-09CZZ
BOTTOM ASSEMBLY SADDLEBAG, LEFT (RUBY RED/TYPHOON MAROON)
29
88275-09DAC
BOTTOM ASSEMBLY SADDLEBAG, LEFT (AUTUMN HAZE/HIGH OCTANE ORANGE)
29
88277-09CZA
BOTTOM ASSEMBLY SADDLEBAG, RIGHT (STARDUST SILVER/TWILIGHT BLUE)
29
88277-09CZZ
BOTTOM ASSEMBLY SADDLEBAG, RIGHT (RUBY RED/TYPHOON MAROON)
29
88277-09DAC
BOTTOM ASSEMBLY SADDLEBAG, RIGHT (AUTUMN HAZE/HIGH OCTANE ORANGE)
29
90115-04
PROTECTOR SADDLEBAG (NOT ILLUSTRATED)
