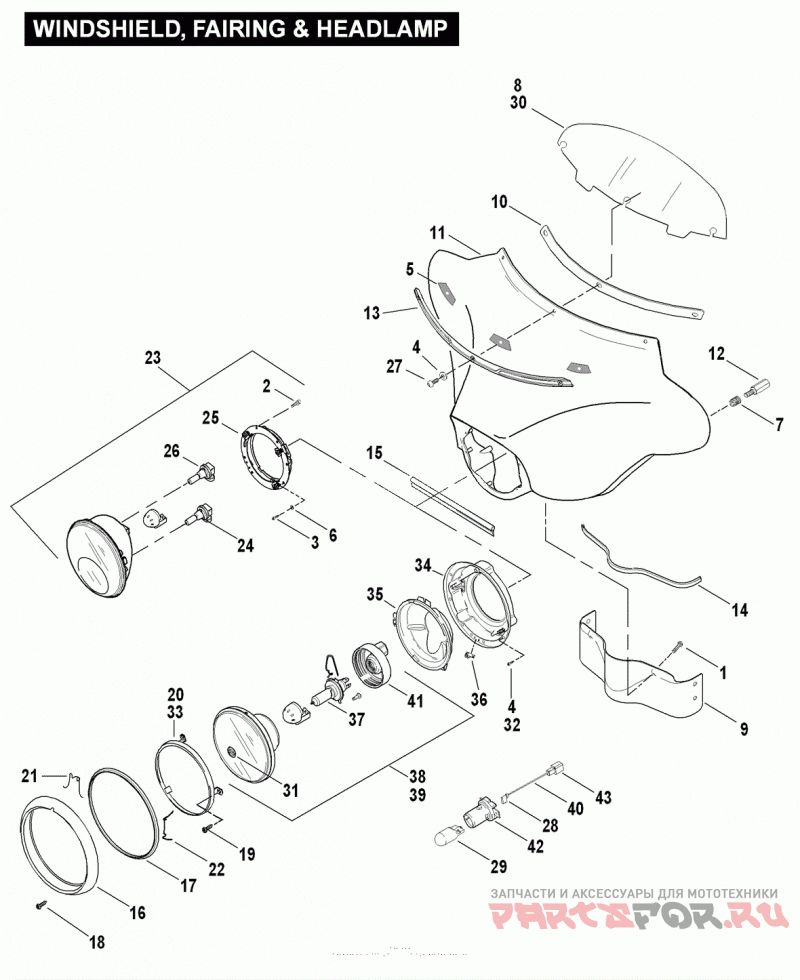

WINDSHIELD, FAIRING & HEADLAMP

Harley Davidson FLHTCU4 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
1
2446
SCREW, 1/4-20 X 5/8 TORX socket button hd. | PR
2
3088
SCREW, 1/4-20 X 1-1/2 socket button hd. (chrome) | PR
3
4790
SCREW, No. 10-16 X 3/4 TORX hd., self-tapping | PR
4
6383
WASHER, 17/64 X 1/2 X 1/16 stainless steel | PR
5
6566
PAD, rubber | PR
6
6717
WASHER, No. 6 X 3/8 X 3/64 | PR
10006
CABLE STRAP (not illustrated) | PR
7
16585-96
INSERT, threaded | PR
8
58303-96
WINDSHIELD, smoked | PR
9
58208-96A
SKIRT, outer fairing | PR
10
58247-96
CUSHION TAPE, windshield mounting | PR
11
58260-09CZA
FAIRING, outer, w/ 58247-96 & 62787-96 (Stardust Silver/Twilight Blue) **RESTRICTED SALE PART** | PR
58260-09CZZ
FAIRING, outer, w/ 58247-96 & 62787-96 (Ruby Red/Typhoon Maroon) **RESTRICTED SALE PART** | PR
58260-09DAC
FAIRING, outer, w/ 58247-96 & 62787-96 (Autumn Haze/High Octane Orange) **RESTRICTED SALE PART** | PR
58236-96
FAIRING, outer (prime) | PR
12
58949-96
NUT, extension | PR
13
59261-09
TRIM ASSEMBLY, windshield, w/ 6566 | PR
14
62786-96
TRIM STRIP, skirt | PR
15
62787-96
SEAL, fairing skirt | PR
16
67712-83B
DOOR chrome | PR
17
67716-60C
GASKET headlamp door (used w/ 67702-81A) | PR
18
67718-60A
SCREW, No. 8-14 x 1/2 phillips hd. self-tapping | PR
19
67721-48
SCREW, headlamp retainer ring | PR
20
67001-08
RETAINING RING KIT, headlamp, w/ 67721-48 & 67732-48 (domestic) | PR
21
67778-60A
SPRING, top | PR
22
67780-60A
SPRING, bottom | PR
23
67700032
HALOGEN HEADLAMP KIT 7 in., w/ 6717, 10006, 68124-04A, 73271-11 & 73272-11 (Domestic & Canada) (replaces 67894-04A) | PR
24
68096-04
BULB, high beam halogen | PR
25
68124-04B
MOUNTING RING ASSEMBLY W/ 3088 | PR
26
68881-01
BULB, low beam halogen | PR
70174-06
HARNESS ASSEMBLY, halogen bulb interconnect & garage door opener (not illustrated) | PR
27
94676-99
SCREW, 1/4-20 X 5/8 TORX socket button hd., stainless steel | PR
28
9898
TERMINAL, female flag, 14-16 gauge - INTERNATIONAL MODELS ONLY | PR
29
53438-92
BULB, position lamp (HDI, Japan) - INTERNATIONAL MODELS ONLY | PR
30
58324-97
WINDSHIELD, clear (HDI) - INTERNATIONAL MODELS ONLY | PR
31
67668-05
MEDALLION, lens (HDI, Japan) - INTERNATIONAL MODELS ONLY | PR
32
67724-71
ADJUSTING SCREW, headlamp (HDI, Japan) - INTERNATIONAL MODELS ONLY | PR
33
67726-08
RETAINING RING, headlamp (HDI, Japan) - INTERNATIONAL MODELS ONLY | PR
34
67728-02A
BUCKET ASSEMBLY, w/ 67724-71 & 67782-60A (HDI, Japan) - INTERNATIONAL MODELS ONLY | PR
35
67732-08
MOUNTING RING, headlamp (HDI, Japan) - INTERNATIONAL MODELS ONLY | PR
36
67782-60A
BRACKET, door (HDI, Japan) - INTERNATIONAL MODELS ONLY | PR
37
68329-03
BULB, HB2/H4 (HDI, Japan) - INTERNATIONAL MODELS ONLY | PR
38
68344-05A
REFLECTOR ASSEMBLY LEFT DIP (AUSTRALIA, ENGLAND, JAPAN) | PR
39
68345-05A
REFLECTOR ASSEMBLY RIGHT DIP (HDI, ASIA-PACIFIC) | PR
40
68359-05
HARNESS JUMPER, position bulb, w/ 9898 & 72253-94 (HDI, Japan) - INTERNATIONAL MODELS ONLY | PR
41
68380-05
BOOT (HDI, Japan) - INTERNATIONAL MODELS ONLY | PR
42
68653-05
SOCKET, position lamp (HDI, Japan) - INTERNATIONAL MODELS ONLY | PR
43
72253-94
TERMINAL, 18-20 ga (Australia, England, HDI, Japan) - INTERNATIONAL MODELS ONLY | PR
