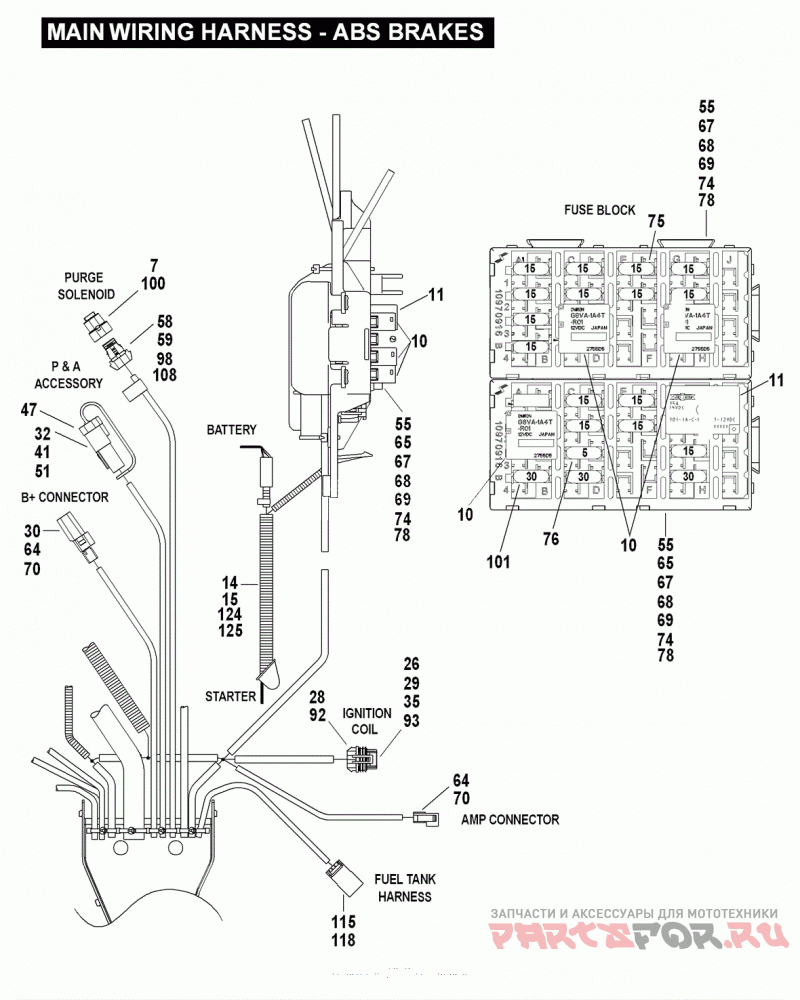

MAINWIRING HARNESS - ABS BRAKES (Part 3)

Harley Davidson FLHTCU4 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
70973-09
MAIN WIRING HARNESS - ABS - Includes the following parts. | PR
7
10147
CLIP, connector | PR
10
31586-07
RELAY | PR
11
31595-09
RELAY, high current | PR
14
70377-09
CABLE ASSEMBLY, battery positive to starter, w/ 70578-89, 73304-04 & 73305-04 | PR
15
70578-89
BOOT, battery positive | PR
26
72066-06A
SOCKET HOUSING 4-way female (black) | PR
28
72094-06
TERMINAL, socket, 18 AWG | PR
29
72096-06
WIRE SEAL, 18-20 AWG (yellow) | PR
30
72100-04
HOUSING, 1-way, male (gray) | PR
32
72104-94BK
HOUSING, 4-pin (black) | PR
35
72115-08
COVER, 73-way socket housing | PR
37
72135-06
LOCK, secondary, 4-way socket, female | PR
41
72144-94
PIN LOCK, secondary, 4-way | PR
47
72164-94A
WEATHER PLUG, 4-way | PR
51
72190-94
TERMINAL, pin, 16-18 AWG | PR
55
72204-04
FUSE/RELAY BLOCK, bussed | PR
58
72213-94
TERMINAL, socket, female, 16-20 AWG | PR
59
72214-94
CABLE SEAL | PR
64
72260-04
HOUSING, female (gray) | PR
65
72265-04
SECONDARY LOCK, bussed fuse block | PR
67
72279-04
TERMINAL, female, 14-16 AWG | PR
68
72282-09
SECONDARY LOCK, bussed fuse block, 2-row | PR
69
72286-04
TERMINAL, buss, female, 12-14 AWG | PR
70
72289-04
TERMINAL, female, 10-12 AWG | PR
74
72309-04
TERMINAL, 16-18 AWG | PR
72314-01
MAXI - FUSE 40 AMP (not illustrated) - Fuse is sold seperately and is not part of main harness | PR
75
72330-95
FUSE, 15 AMP (blue) | PR
76
72331-95
FUSE, 5 AMP (light tan) | PR
78
72359-05
TERMINAL, female, 10-12 AWG | PR
92
72484-08
TERMINAL, socket, 20 AWG | PR
93
72486-08
SEAL WIRE, 20 AWG (green) | PR
98
72518-01
SOCKET HOUSING, 2-way (red) | PR
100
72533-06
DUST CAP, 2-pin connector (1-Domestic, 3-Japan) | PR
101
72539-06
FUSE, 30 amp, mini type (green) | PR
108
72609-08
LOCK, secondary, 2-way (black) | PR
115
73104-96BK
PIN HOUSING, 4-place (black) | PR
118
73190-96
TERMINAL, pin, 16-20 AWG | PR
124
73304-04
TERMINAL, female, 10 AWG | PR
125
73305-04
SEAL WIRE, 10 AWG (blue) | PR
