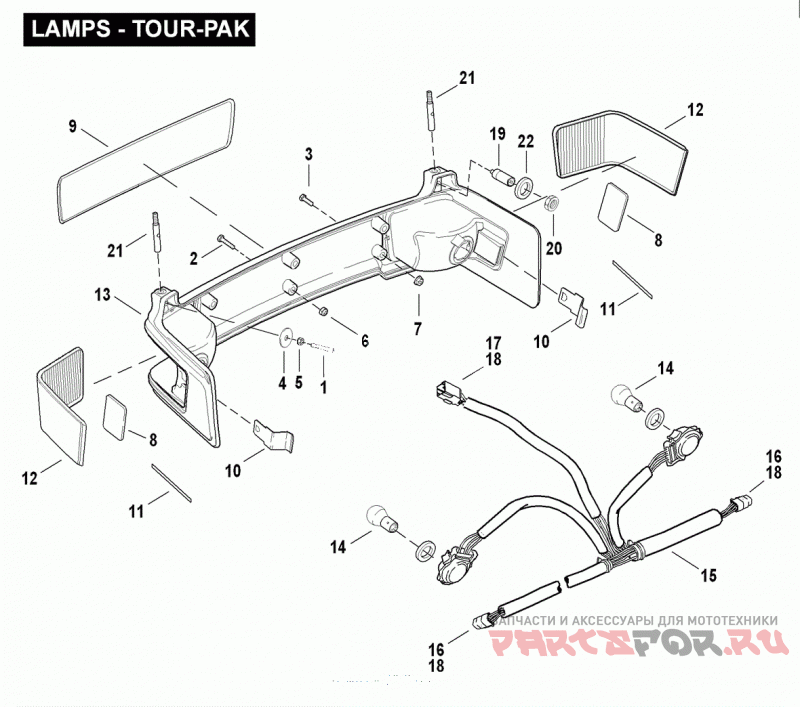

LAMPS - TOUR-PAK

Harley Davidson FLHTCU4 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
1
3227
SCREW, M5 (.08 pitch) X 35mm set | PR
2
4922
SCREW, No. 10-24 X 1 hex hd. (zinc plate) (Grade 2) | PR
3
4930
SCREW, No. 10-24 X 3/4 hex hd. (zinc plate) (Grade 2) | PR
4
6036
WASHER, 17/64 X 1 X 1/16 | PR
5
7492
NUT, w/ lockwasher | PR
6
7624
LOCKNUT, No. 10-24 X 1/4 X 3/8 | PR
7
7878
NUT, No. 10-24 X 7/32 X 3/8 flange | PR
8
53166-89
REFLECTOR | PR
9
54021-09
INSERT, screaming eagle (Domestic) **RESTRICTED SALE PART** | PR
10
58380-89
CLIP, housing | PR
11
58382-89
SEAL, lamp lens | PR
12
58383-89
LENS, left | PR
58384-89
LENS, right | PR
13
68072-09BYW
HOUSING, lamp (Autumn Haze) | PR
68072-09CZB
HOUSING, lamp (Stardust Silver) | PR
68072-09DAA
HOUSING, lamp (Ruby Red) | PR
14
68168-89A
BULB, tail lamp | PR
15
70648-00A
WIRING HARNESS, luggage box, w/ 73102-96BK, 73103-96BK & 73190-96 | PR
16
73102-96BK
PIN HOUSING, 2-place | PR
17
73103-96BK
PIN HOUSING, 3-place | PR
18
73190-96
TERMINAL, pin, 16-20 AWG | PR
19
76258-86
PLUG ASSEMBLY | PR
20
76259-86
NUT, hex jam | PR
21
76260-89
ADAPTER, antenna | PR
22
90763-79
WASHER, reinforcement | PR
