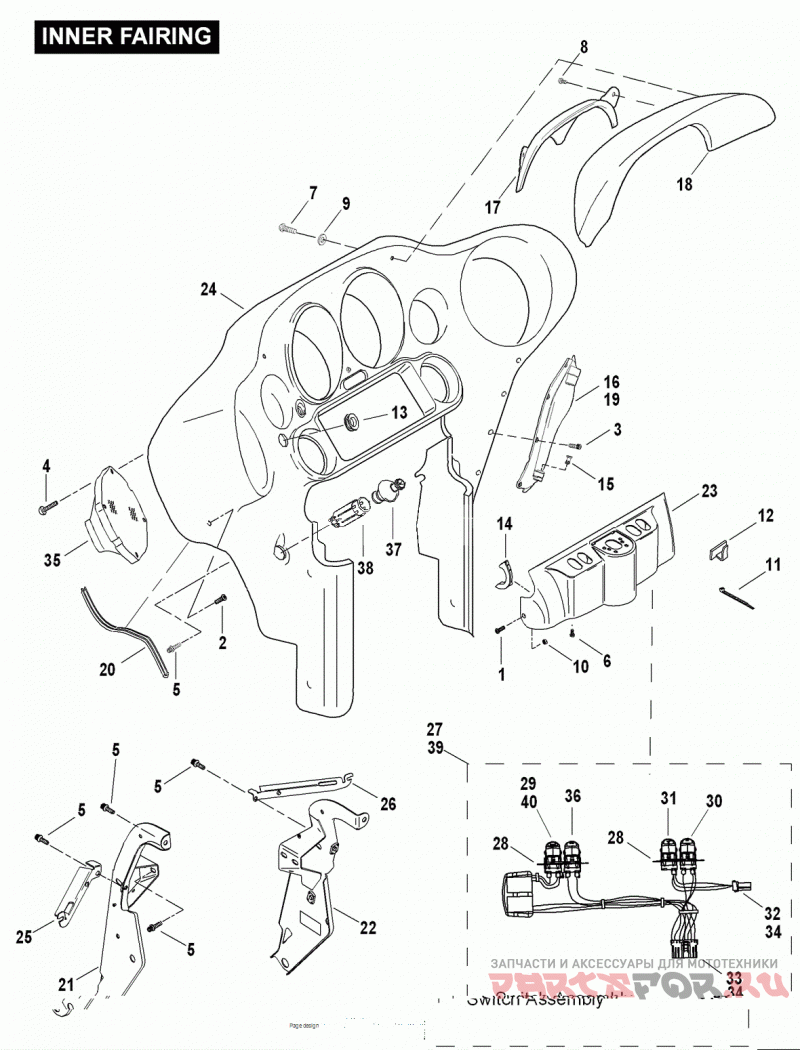

INNER FAIRING

Harley Davidson FLHTCU4 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
1
2445
SCREW, 1/4-20 X 9/16 button hd. | PR
2
2446
SCREW, 1/4-20 X 5/8 TORX socket button hd. | PR
3
2563
SCREW, No. 10-24 X 5/8 TORX button hd. | PR
4
2965
SCREW, No. 10 X 2 pan hd., self-tapping | PR
3387
SCREW, No. 10-16 X 1.0 TORX pan hd., self-tapping | PR
5
3061
SCREW, 1/4-20 X 5/8 SEMS hex hd. | PR
6
3612
SCREW, No. 10-16 X 1/2 TORX pan hd., self-tapping | PR
7
3652
SCREW, 1/4-20 X 3/8 button hd. (Grade 8) | PR
8
4569
SCREW, No. 10-32 x 1/4 hex socket hd. cap | PR
9
6837M
WASHER, M6 regular | PR
10
7688
NUT, 1/4-20 X 7/32 X 7/16 (Grade 2) | PR
11
10065
CABLE STRAP | PR
12
10103
CLIP, adhesive backed | PR
13
11445
GROMMET, clutch hose | PR
14
11488
GROMMET, handlebar, right | PR
11492
GROMMET, handlebar, left | PR
15
57638-08
SNAP HINGE, air deflector | PR
16
57655-08A
AIR DEFLECTOR ASY,RH | PR
57657-08A
AIR DEFLECTOR ASY,LH | PR
17
57842-06
TRIM, dash pad | PR
18
57860-06
DASH PAD, leather-wrapped | PR
19
58128-08A
AIR DEFLECTOR right, smoked, w/ 57638-08 | PR
58129-08A
AIR DEFLECTOR left, smoked, w/ 57638-08 | PR
20
58317-04
TRIM SEAL, inner fairing, 29 in. length | PR
21
58478-96B
BRACKET fairing support, left | PR
22
58479-96B
BRACKET fairing support, right | PR
23
58545-06BYW
CAP, inner fairing (Autumn Haze) | PR
58545-09CZB
CAP, inner fairing (Stardust Silver) | PR
58545-09DAA
CAP, inner fairing (Ruby Red) | PR
24
58546-09BYW
INNER FAIRING ASSEMBLY, w/ 7688, & 58317-04 (Autumn Haze) | PR
58546-09CZB
INNER FAIRING ASSEMBLY, w/ 7688, & 58317-04 (Stardust Silver) | PR
58546-09DAA
INNER FAIRING ASSEMBLY, w/ 7688, & 58317-04 (Ruby Red) | PR
25
58938-96C
SUPPORT inner fairing, left | PR
26
58939-96C
SUPPORT inner fairing, right | PR
27
70290-07
WIRE HARNESS ASSEMBLY, inner fairing cap | PR
28
71434-96A
BRACKET, switch | PR
29
71765-07
SWITCH ASSEMBLY, spot lamp/cruise, w/ 71434-96A & 73191-96 | PR
30
71535-96
SWITCH, accessory, w/ 73191-96 | PR
31
71764-07
SWITCH ASSEMBLY, power lock, w/ 73153-96BK & 73191-96 | PR
32
73153-96BK
SOCKET HOUSING, 6-place (black) | PR
33
73162-96BK
SOCKET HOUSING, 12-place (black) | PR
34
73191-96
SOCKET TERMINAL, #16-20 AWG | PR
35
77029-06
SPEAKER | PR
77047-98
ADAPTOR & GRILL, speaker | PR
36
77092-98
SWITCH, speaker, w/ 73191-96 | PR
37
91808-89
ELEMENT, cigarette lighter | PR
38
91812-89A
SOCKET, cigarette lighter | PR
39
70308-07
WIRE HARNESS ASSEMBLY, inner fairing cap (HDI) - INTERNATIONAL MODELS ONLY | PR
40
71772-07
SWITCH ASSEMBLY, spot lamp/cruise, w/ 71434-96A & 73191-96 (HDI) - INTERNATIONAL MODELS ONLY | PR
