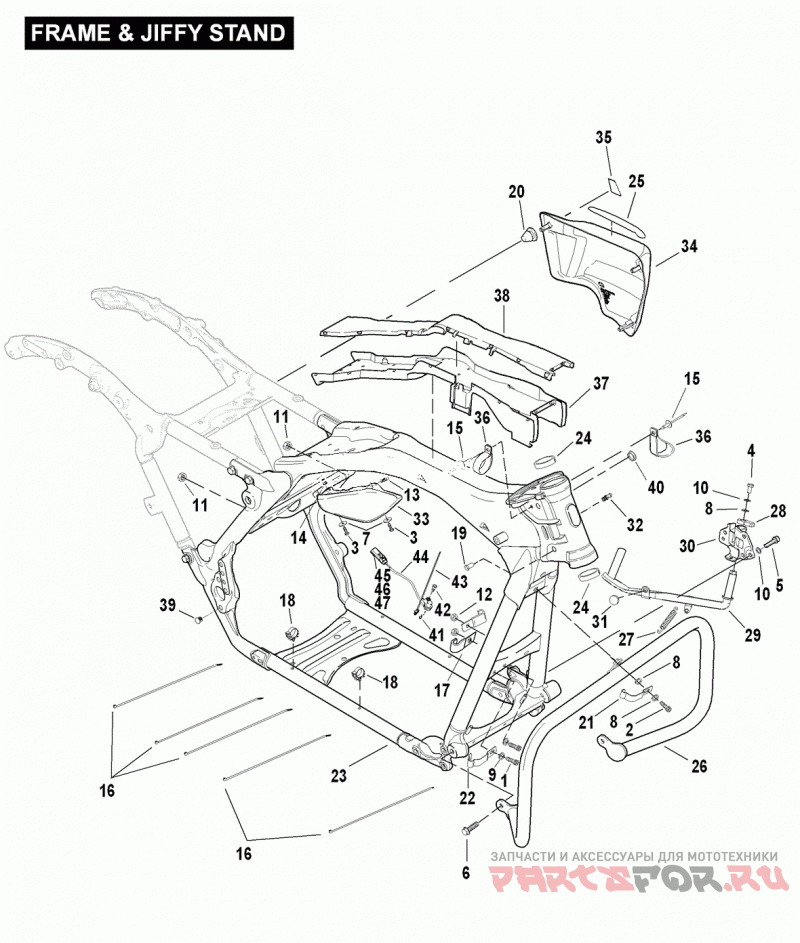

FRAME & JIFFY STAND

Harley Davidson FLHTCU4 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
1
1001
SCREW, 1/4-20 X 5/8 TORX button hd., self-tapping (Grade 8) | PR
2
2708A
SCREW, 5/16-18 X 1 socket hd. | PR
3
3787
BOLT, 1/4-20 X 3/4 hex hd. (Grade 5) | PR
4
3987
BOLT, 5/16-18 X 3/4 hex hd. (Grade 5) | PR
5
4688
SCREW, 3/8-16 X 1-1/4 SEMS hex socket hd., w/ lock patch | PR
6
4924
SCREW, 3/8-16 X 7/8 TORX button hd. (zinc plate) (Grade 5) | PR
7
6036
WASHER, 17/64 X 1 X 1/16 | PR
8
6702
WASHER, 5/16 X 11/16 X 1/16 | PR
9
6703
WASHER, 1/4 X 5/8 X 1/16 | PR
10
7041
LOCKWASHER, 5/16 | PR
11
7495
NUT, M6 flange | PR
12
7688
NUT, 1/4-20 X 7/32 X 7/16 (Grade 2) | PR
13
8108
SPEEDNUT, 1/4-20 | PR
14
8194
NUT, special | PR
15
8483A
RIVET, blind | PR
16
10039
CABLE STRAP | PR
17
10092
CLAMP | PR
18
10336
CLIP, conduit, rosebud mount | PR
19
11663
RIVNUT, flathead, with ABS | PR
20
11650
GROMMET, side cover | PR
21
38904-08
RETAINER, cable, upper | PR
22
38938-09
RETAINER, clutch line | PR
23
47900-11BHP
FRAME main, w/ 48315-60 & 50972-75 | PR
24
48315-60
BEARING CUP | PR
25
48419-04
WEAR PAD, side cover, right (clear) | PR
48420-04
WEAR PAD, side cover, left (clear) | PR
26
49184-09A
ENGINE GUARD W/ 2708A, 6116 & 14148-86 | PR
27
49725-07A
SPRING jiffy stand | PR
28
50015-74A
LEG STOP | PR
29
50075-07A
LEG JIFFY STAND | PR
30
50096-09
BRACKET, jiffy stand leg | PR
31
50245-07
BUMPER, jiffy stand leg | PR
32
83459-09
FITTING lubrication | PR
33
58167-09A
DEFLECTOR AIR (RIGHT) | PR
58169-09
DEFLECTOR, air, left | PR
34
66048-09A
SIDE COVER RIGHT (UNPAINTED) | PR
66250-09
SIDE COVER, left (unpainted) | PR
66612-09CZA
SIDE COVER, left (Stardust Silver/Twilight Blue)w/ 48420-04 & 66055-09 **RESTRICTED SALE PART** | PR
66612-09CZZ
SIDE COVER, left (Ruby Red/Typhoon Maroon)w/ 48420-04 & 66055-09 **RESTRICTED SALE PART** | PR
66612-09DAC
SIDE COVER, left (Autumn Haze/High Octane Orange)w/ 48420-04 & 66055-09 **RESTRICTED SALE PART** | PR
66613-09CZA
SIDE COVER, right (Stardust Silver/Twilight Blue)w/ 48419-04 & 66055-09 **RESTRICTED SALE PART** | PR
66613-09CZZ
SIDE COVER, right (Ruby Red/Typhoon Maroon)w/ 48419-04 & 66055-09 **RESTRICTED SALE PART** | PR
66613-09DAC
SIDE COVER, right (Autumn Haze/High Octane Orange)w/ 48419-04 & 66055-09 **RESTRICTED SALE PART** | PR
35
66055-09
WEAR PAD, side cover (clear) | PR
36
69318-02
CLAMP | PR
37
70980-09
TRAY, wire trough (main harness) | PR
38
70981-09
COVER, wire trough w/ 15368-01A (main harness) | PR
39
90329-98
PLUG (black) | PR
40
90469-94
PLUG | PR
41
90520-07
HOLE PLUG, jiffy stand | PR
42
3594
SCREW, 1/4-20 X 5/8 knurled hd. (Grade 8) | PR
43
10177
CABLE STRAP, tree mount, jiffy stand (England, HDI) - INTERNATIONAL MODELS ONLY | PR
44
50126-08A
SENSOR, jiffy stand, w/ 72169-07, 72511-07BK & 73213-07 (England, HDI) - INTERNATIONAL MODELS ONLY | PR
45
72169-07
TERMINAL, pin, 16-20 AWG - INTERNATIONAL MODELS ONLY | PR
46
72511-07BK
HOUSING, pin, 3-way (black) - INTERNATIONAL MODELS ONLY | PR
47
73213-07
RETAINER, xmas tree clip - INTERNATIONAL MODELS ONLY | PR
