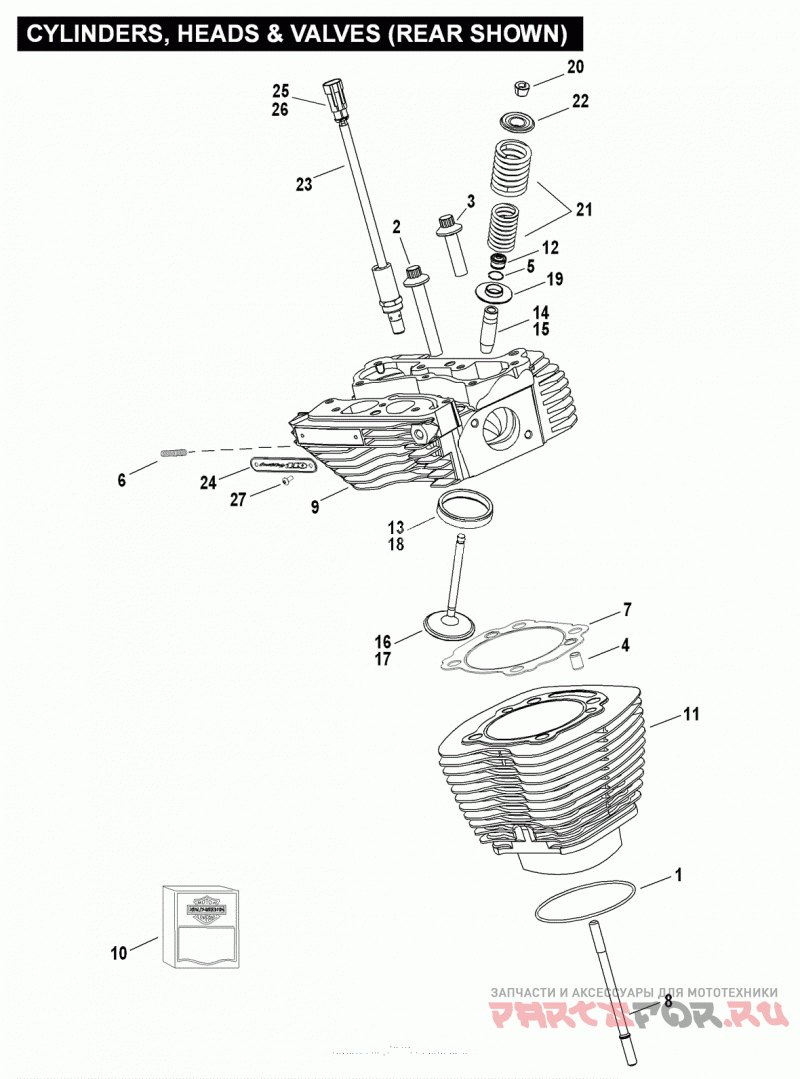

CYLINDERS, HEADS & VALVES (REAR SHOWN)

Harley Davidson FLHTCU4 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
1
11907
O-RING KIT, cylinder base, w/ crankcase dowel o-rings | PR
2
16478-85A
SCREW, internal thread, 3-3/16 in. long | PR
3
16480-92A
SCREW, internal thread, 1-7/8 in. long | PR
4
16595-99A
DOWEL PIN, ring | PR
5
16699-06
SNAP RING, wire | PR
6
16715-83
STUD, exhaust port | PR
7
16801-07B
GASKET, cylinder head | PR
8
16834-99A
STUD, cylinder | PR
9
17331-08A
HEAD, cylinder, rear, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (granite) | PR
17337-08A
HEAD, cylinder, front, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (granite) | PR
10
17349-07B
GASKET KIT top-end | PR
17350-07B
GASKET KIT engine overhaul | PR
11
17454-08A
CYLINDER ASSEMBLY WITH 16595-99A (GRAY GRANITE) | PR
12
18067-09
VALVE SEAL | PR
13
18048-98A
SEAT, exhaust valve | PR
14
18161-08
VALVE GUIDE, intake | PR
15
18168-08
VALVE GUIDE, exhaust | PR
16
18183-03
EXHAUST VALVE | PR
17
18187-07
INTAKE VALVE | PR
18
18189-07
SEAT, intake valve | PR
19
18270-00A
COLLAR, valve spring lower | PR
20
18271-00
KEY, valve spring collar | PR
21
18272-00
SPRING VALVE, inner & outer | PR
22
18280-07
COLLAR, valve spring upper | PR
23
28861-07A
SOLENOID, auto compression release, w/ 72009-05 & 72011-05 | PR
24
29517-07A
MEDALLION KIT, w/ 2 medallions | PR
25
72009-05
HOUSING, 2-way, pin | PR
26
72011-05
WIRE SEAL, 16-20 AWG (yellow) | PR
27
94634-99
SCREW, medallion | PR
