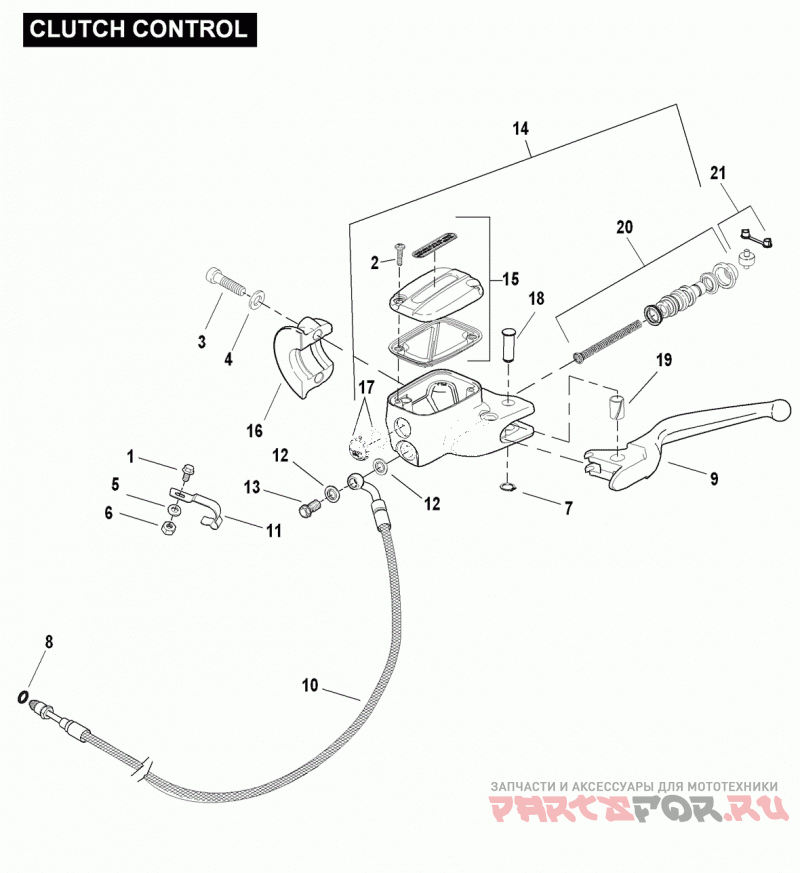

Привод управления сцеплением

Harley Davidson FLHTCU4 CVO (Japan only) (2009)

Harley Davidson
#oem кодцена
1
1001
SCREW, 1/4-20 X 5/8 TORX button hd., self-tapping (Grade 8) | PR
2
3089
SCREW, 8-32 X 5/8 Phillips hd. (stainless) | PR
3
4293
SCREW, 1/4-20 X 1-1/8 TORX button hd, | PR
4
6099
WASHER, 1/4 X 7/16 X 1/16 | PR
5
6703
WASHER, 1/4 X 5/8 X 1/16 | PR
6
7688
NUT, 1/4-20 X 7/32 X 7/16 (Grade 2) | PR
10039
STRAP, cable (not illustrated) | PR
7
11143
RING, retaining | PR
8
11348
O-RING | PR
9
38774-08
LEVER ASSEMBLY, hand, w/ 11143 & 45423-92 | PR
10
38881-08A
LINE ASSEMBLY, hydraulic-clutch, w/ 11348 | PR
11
38938-09
RETAINER, cable | PR
12
41751-06A
GASKET, banjo-bolt | PR
13
42010-06B
BOLT, BANJO (CHROME) | PR
14
36700081C
CLUTCH,MSTR CYL(SUB-ASY) | PR
15
36700094A
MASTER CYLINDER COVER KIT WITH 3089 AND GASKET (CHROME) | PR
16
42119-08
CLAMP, master cylinder (chrome) | PR
17
42145-06
SIGHT GLASS KIT | PR
18
45032-82
PIN, pivot | PR
19
45423-92
BUSHING, hand lever | PR
20
46244-01
REPAIR KIT, master-cylinder, w/ 11143 | PR
21
46246-01
BUSHING & ROLLER KIT | PR
