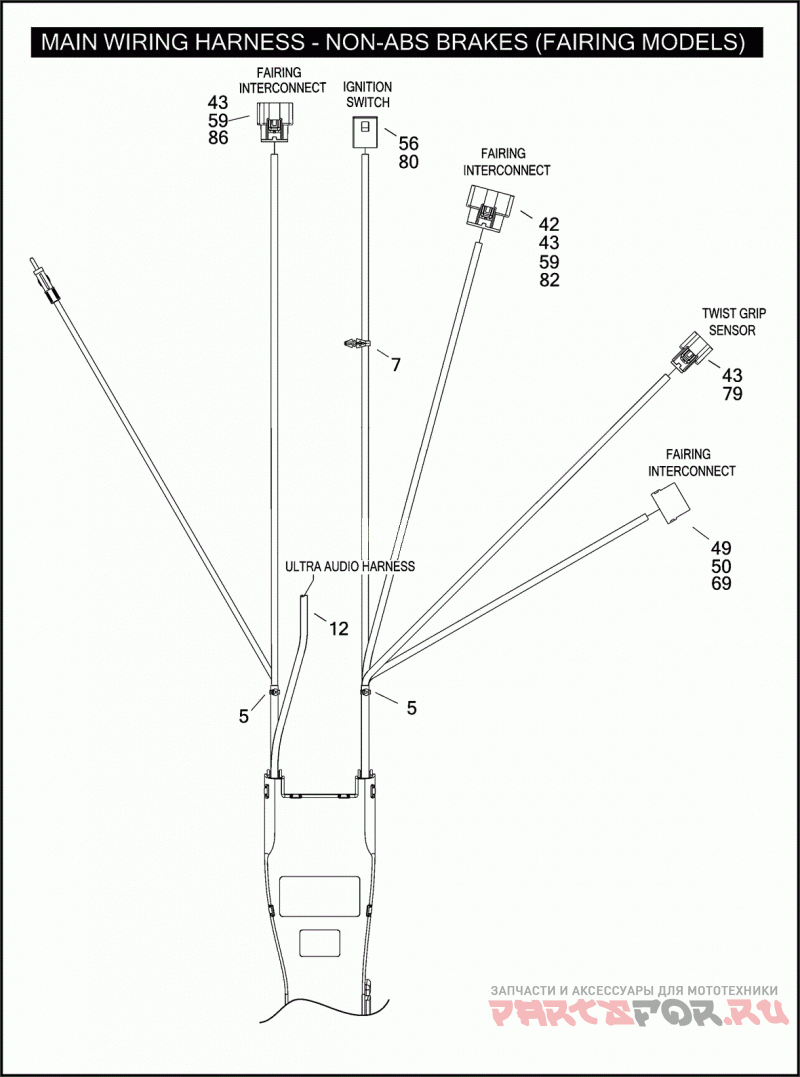

MAIN WIRING HARNESS - NON-ABS BRAKES (FAIRING MODELS)

Harley Davidson FLHTCU 1FC4 ULTRA CLASSIC (2009)

Harley Davidson
#oem кодцена
71000-09
MAIN WIRING HARNESS - NON-ABS
1
9819
TERMINAL 1/4 IN. RING, 12 AWG
2
9838
TERMINAL 1/4 IN. RING, 12 AWG
3
72283-09
TERMINAL FEMALE, 14-16AWG, 90 DEGREE
4
10039
CABLE STRAP
5
10065
CABLE STRAP
6
10073
CABLE STRAP ROSEBUD MOUNT
7
10147
CLIP CONNECTOR
8
10177
CABLE STRAP TREE MOUNT
9
11779
FASTENER PUSH-IN (BLACK)
9
15368-01A
LABEL BATTERY WARNING (NOT SHOWN)
10
31586-07
RELAY
11
31595-09
RELAY HIGH CURRENT
12
70160-08A
WIRING HARNESS AUDIO OVERLAY
13
70348-09
CADDY FUSE BLOCK
14
70377-09
CABLE ASSEMBLY BATTERY POSITIVE TO STARTER, W/ 70578-89, 73304-04 & 73305-04
15
70578-89
BOOT BATTERY POSITIVE
16
70598-99
BOOT ENGINE TEMPERATURE SENSOR
17
70980-09
TRAY WIRE TROUGH
18
70981-09
COVER WIRE TROUGH
19
72006-05
SOCKET TERMINAL 16-20 AWG
20
72007-05
SOCKET HOUSING 2-WAY
21
72011-05
WIRE SEAL 16-20 AWG (YELLOW)
22
72012-07
SOCKET HOUSING 5-WAY
23
72014-07
SEAL PIN
24
72024-08
SOCKET TERMINAL 20-22 AWG
25
72063-06
HOUSING 2-WAY
