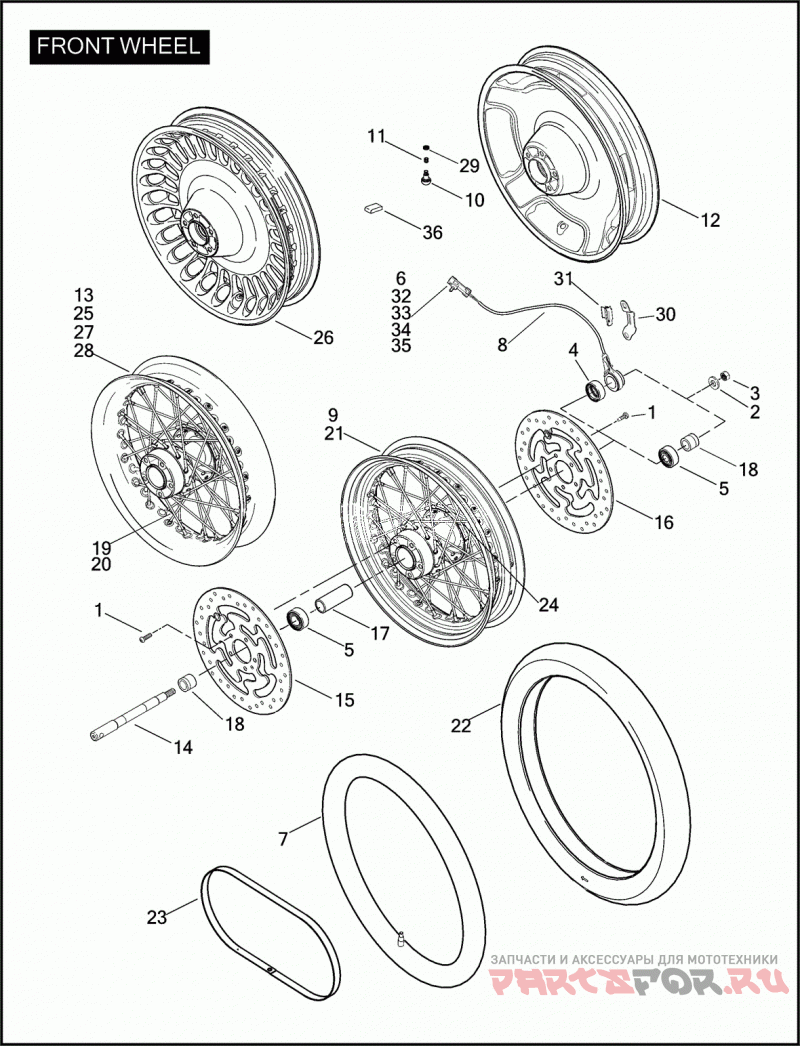

Переднее колесо

Harley Davidson FLHRC 1FR4 ROAD KING CLASSIC (2009)

Harley Davidson
#oem кодцена
1
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
2
6594
WASHER 5/8 X 1-1/8 X 3/32
3
7813A
NUT 5/8-18 X 9/16 X 15/16 (GRADE 2)
4
9252
BALL BEARING W/ ENCODER, ABS
5
9276A
Подшипник
6
10147
CLIP CONNECTOR
7
40558-82
INNER TUBE 16 IN., SIDE VALVE, W/ 54321-85
7
40575-05
INNER TUBE 16 IN., CENTER VALVE
8
40614-08
SENSOR WHEEL SPEED, ABS, W/ 10147, 72607-08, 72608-08, 72609-08 & 72610-08
9
40960-09
WHEEL ASSEMBLY 16 IN. LACED, W/O BEARINGS & SLEEVE, W/ 43085-97 & 43241-05
11
41123-79
VALVE CAP
14
41547-07A
Мост
15
41808-08A
BRAKE DISC RIGHT (USED W/ 40960-09)
16
41809-08A
BRAKE DISC LEFT (USED W/ 40960-09)
17
41900-08
SLEEVE BEARING SPACER
18
41901-08
SPACER (2 - NON-ABS, RIGHT & LEFT) (1 - ABS, RIGHT ONLY)
20
43052-05A
SPOKE & NIPPLE KIT 16 IN., SET OF 40
21
43085-97
RIM 16 IN. (CHROME)
22
43211-09A
TIRE WIDE WHITE WALL, 16 IN.
23
43147-40
RIM FLAP 16 INCH, SIDE VALVE, USED WITH 43085-97
23
43164-05
RIM STRIP 16 INCH, CENTER VALVE, USED WITH 43440-05A
24
43241-05
SPOKE & NIPPLE KIT 16 IN., SET OF 40
25
43440-05A
RIM 16 INCH, PROFILE LACED (CHROME)
27
44605-09
WHEEL ASSEMBLY PROFILE LACED, W/O BEARINGS & SLEEVE, 16 IN., W/ 43052-05A & 43440-05A (CHROME)
30
70493-08
BRACKET WHEEL SPEED SENSOR, ABS
31
70494-08
CLIP WHEEL SPEED SENSOR, ABS
32
72607-08
HOUSING 2 WAY PIN
33
72608-08
TERMINAL PIN 16-20 AWG
34
72609-08
LOCK SECONDARY, 2-WAY (BLACK)
35
72610-08
SEAL 18-20 AWG (WHITE)
36
95594-84B
WEIGHT 5 grams (black)
36
95595-84B
WHEEL WEIGHT 5 grams (plain)
