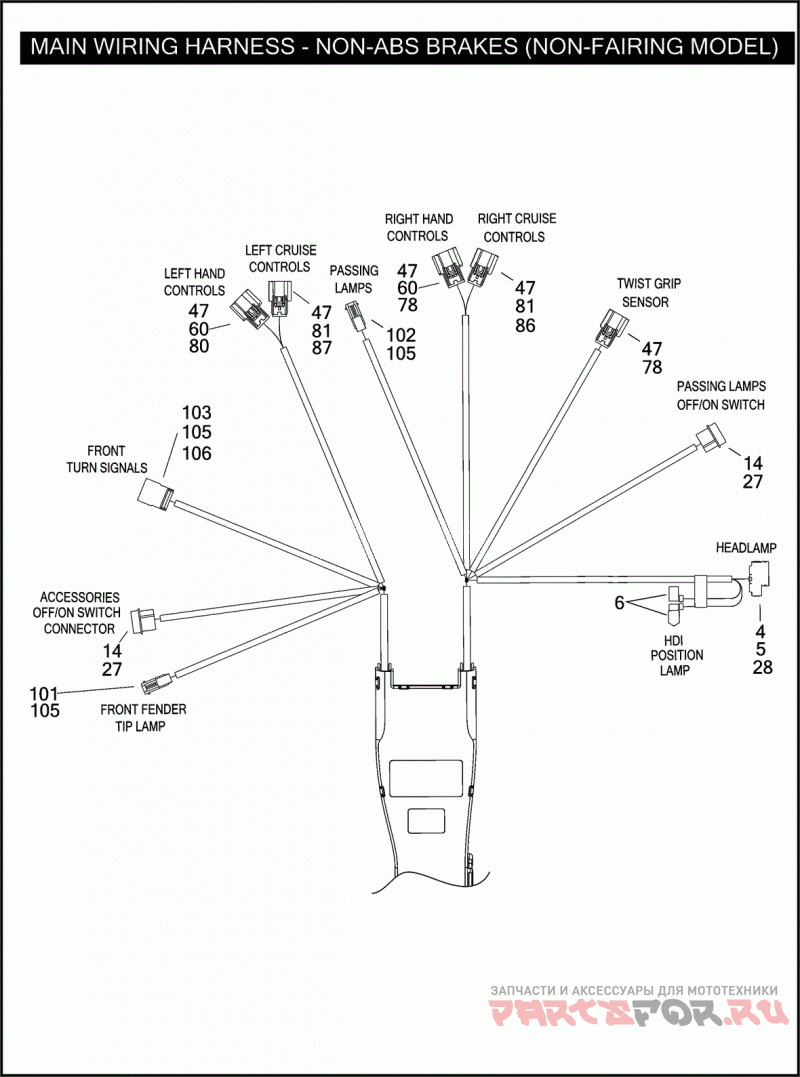

MAIN WIRING HARNESS - NON-ABS BRAKES (NON-FAIRING MODELS)

Harley Davidson FLHR 1FB4 ROAD KING (2009)

Harley Davidson
#oem кодцена
70245-09
Деталь MAIN WIRING HARNESS - NON-ABS
1
9819
Деталь TERMINAL 1/4 IN. RING, 12 AWG
2
9825
Деталь TERMINAL 14-18 AWG
3
9838
Деталь TERMINAL 1/4 IN. RING, 10-12 AWG
4
9847
Деталь CONNECTOR FEMALE SPADE, RIGHT
5
9848
Деталь CONNECTOR FEMALE SPADE, LEFT
6
9898
Деталь TERMINAL INSULATED
6A
72283-09
Деталь TERMINAL FEMALE, 14-16AWG, 90 DEGREE
7
10039
Деталь CABLE STRAP
8
10065
Деталь CABLE STRAP
9
10147
Деталь CLIP CONNECTOR
10
10177
Деталь CABLE STRAP TREE MOUNT
11
11779
Деталь FASTENER PUSH-IN (BLACK)
11
15368-01A
Деталь LABEL BATTERY WARNING (NOT SHOWN)
12
31586-07
Деталь RELAY
13
31595-09
Деталь RELAY HIGH CURRENT
14
70291-89
Деталь HOUSING 4-PLACE
15
70348-09
Деталь CADDY FUSE BLOCK
16
70377-09
Деталь CABLE ASSEMBLY BATTERY POSITIVE TO STARTER, W/ 70578-89, 73304-04 & 73305-04
17
70578-89
Деталь BOOT BATTERY POSITIVE
18
70598-99
Деталь BOOT ENGINE TEMPERATURE SENSOR
19
70980-09
Деталь TRAY WIRE TROUGH
20
70981-09
Деталь COVER WIRE TROUGH
21
72006-05
Деталь SOCKET TERMINAL 16-20 AWG
22
72007-05
Деталь SOCKET HOUSING 2-WAY
23
72011-05
Деталь WIRE SEAL 16-20 AWG (YELLOW)
24
72012-07
Деталь SOCKET HOUSING 5-WAY
25
72014-07
Деталь SEAL PIN
26
72024-08
Деталь SOCKET TERMINAL 20-22 AWG
